SN74LS07

SN74LS07

正在供货

具有集电极开路输出的 6 通道、4.75V 至 5.25V 双极缓冲器

产品详情
  • 说明
  • 特性
  • 参数
  • 封装 | 引脚 | 尺寸

These hex buffers and drivers feature high-voltage open-collector outputs to interface with high-level circuits or for driving high-current loads. They are also characterized for use as buffers for driving TTL inputs. The SN74LS07 devices have a rated output voltage of 30 V. The maximum sink current is 40 mA.

These circuits are compatible with most TTL families. Inputs are diode-clamped to minimize transmission-line effects, which simplifies design. Typical power dissipation is 140 mW, and average propagation delay time is 12 ns.

  • Convert TTL Voltage Levels to MOS Levels
  • High Sink-Current Capability
  • Input Clamping Diodes Simplify
    System Design
  • Open-Collector Driver for Indicator Lamps
    and Relays
Technology familyLS
Supply voltage (min) (V)4.75
Supply voltage (max) (V)5.25
Number of channels6
IOL (max) (mA)40
Supply current (max) (µA)45000
IOH (max) (mA)0
Input typeBipolar
Output typeOpen-collector
FeaturesHigh speed (tpd 10-50ns), Input clamp diode
RatingCatalog
Operating temperature range (°C)0 to 70

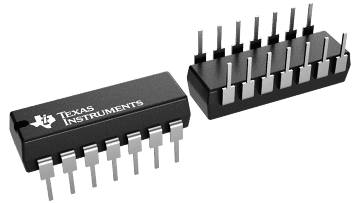

PDIP (N)14181.42 mm² 19.3 x 9.4
SOIC (D)1451.9 mm² 8.65 x 6
SOP (NS)1479.56 mm² 10.2 x 7.8
SSOP (DB)1448.36 mm² 6.2 x 7.8
