THS4509-Q1

THS4509-Q1

正在供货

汽车类宽带运算放大器

产品详情
  • 说明
  • 特性
  • 参数
  • 封装 | 引脚 | 尺寸

The THS4509-Q1 is a wideband, fully differential operational amplifier designed for 5-V data-acquisition systems. It has very low noise at 1.9 nV/√Hz, and extremely low harmonic distortion of –75-dBc HD2 and –80-dBc HD3 at 100 MHz with 2 Vpp, G = 10 dB, and 1-kΩ load. Slew rate is very high at 6600 V/µs and with settling time of 2 ns to 1% (2-V step), it is ideal for pulsed applications. It is designed for minimum gain of 6 dB but is optimized for gain of 10 dB.

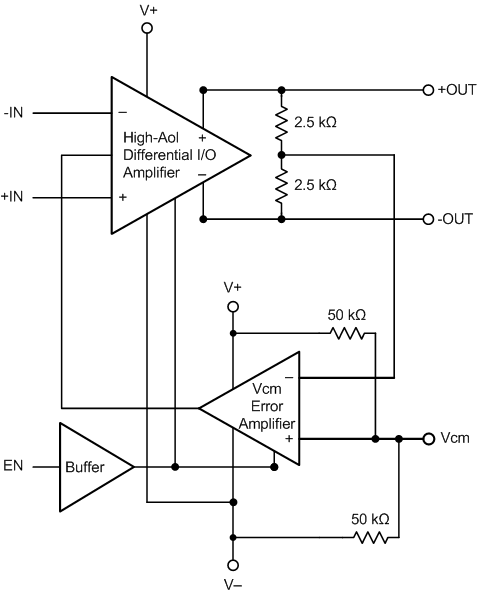

To allow for dc coupling to analog-to-digital converters (ADCs), its unique output common-mode control circuit maintains the output common-mode voltage within 3-mV offset (typical) from the set voltage, when set within 0.5 V of mid-supply, with less than 4-mV differential offset voltage. The common-mode set point is set to mid-supply by internal circuitry, which may be overdriven from an external source.

The input and output are optimized for best performance with their common-mode voltages set to mid-supply. Along with high-performance at low power-supply voltage, this makes for extremely high-performance single-supply 5-V data-acquisition systems.

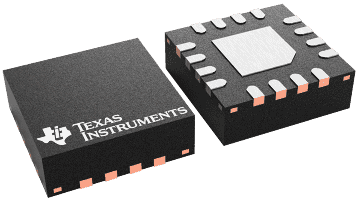

The THS4509-Q1 is offered in a quad 16-pin leadless QFN package (RGT) and is characterized for operation over the full automotive temperature range from –40°C to 125°C.

  • Qualified for Automotive Applications
  • Fully Differential Architecture
  • Centered Input Common-Mode Range
  • Minimum Gain of 2 V/V (6 dB)
  • Bandwidth: 1900 MHz
  • Slew Rate: 6600 V/µs
  • 1% Settling Time: 2 ns
  • HD2: –75 dBc at 100 MHz
  • HD3: –80 dBc at 100 MHz
  • OIP2: 73 dBm at 70 MHz
  • OIP3: 37 dBm at 70 MHz
  • Input Voltage Noise: 1.9 nV/√Hz (f > 10 MHz)
  • Noise Figure: 17.1 dB
  • Output Common-Mode Control
  • Power Supply:
    • Voltage: 3 V (±1.5 V) to 5 V (±2.5 V)
    • Current: 37.7 mA
  • Power-Down Capability: 0.65 mA
Number of channels1
Total supply voltage (+5 V = 5, ±5 V = 10) (min) (V)3
Total supply voltage (+5 V = 5, ±5 V = 10) (max) (V)5.25
BW at Acl (MHz)2000
Acl, min spec gain (V/V)2
Slew rate (typ) (V/µs)6600
ArchitectureBipolar, Fully Differential ADC Driver
Vn at flatband (typ) (nV√Hz)1.9
Iq per channel (typ) (mA)37.7
Rail-to-railNo
Vos (offset voltage at 25°C) (max) (mV)4
Operating temperature range (°C)-40 to 125
Iout (typ) (mA)96
TI functional safety categoryFunctional Safety-Capable
2nd harmonic (dBc)104
3rd harmonic (dBc)108
Frequency of harmonic distortion measurement (MHz)10
GBW (typ) (MHz)3000
Input bias current (max) (pA)18500000
FeaturesDecompensated, Shutdown
CMRR (typ) (dB)90
RatingAutomotive
VQFN (RGT)169 mm² 3 x 3
