SN74LVT244B

SN74LVT244B

正在供货

具有 TTL 兼容型 CMOS 输入和三态输出的 8 通道、2.7V 至 3.6V 缓冲器

产品详情
  • 说明
  • 特性
  • 参数
  • 封装 | 引脚 | 尺寸

This octal buffer and line driver is designed specifically for low-voltage (3.3-V) VCC operation, but with the capability to provide a TTL interface to a 5-V system environment.

The SN74LVT244B is organized as two 4-bit line drivers with separate output-enable (OE) inputs. When OE is low, the device passes data from the A inputs to the Y outputs. When OE is high, the outputs are in the high-impedance state.

To ensure the high-impedance state during power up or power down, OE should be tied to VCC through a pullup resistor; the minimum value of the resistor is determined by the current-sinking capability of the driver.

This device is fully specified for hot-insertion applications using Ioff and power-up 3-state. The Ioff circuitry disables the outputs, preventing damaging current backflow through the device when it is powered down. The power-up 3-state circuitry places the outputs in the high-impedance state during power up and power down, which prevents driver conflict.

  • Supports Mixed-Mode Signal Operation (5-V Input and Output Voltages With 3.3-V VCC)
  • Supports Unregulated Battery Operation Down to 2.7 V
  • Typical VOLP (Output Ground Bounce)
       <0.8 V at VCC = 3.3 V, TA = 25°C
  • Ioff and Power-Up 3-State Support Hot Insertion
  • Latch-Up Performance Exceeds 100 mA Per JESD 78, Class II
  • ESD Protection Exceeds JESD 22
    • 2000-V Human-Body Model (A114-A)
    • 200-V Machine Model (A115-A)
    • 1000-V Charged-Device Model (C101)

Technology familyLVT
Supply voltage (min) (V)2.7
Supply voltage (max) (V)3.6
Number of channels8
IOL (max) (mA)64
Supply current (max) (µA)5000
IOH (max) (mA)-32
Input typeTTL-Compatible CMOS
Output type3-State
FeaturesOver-voltage tolerant inputs, Partial power down (Ioff), Power up 3-state, Ultra high speed (tpd <5ns)
RatingCatalog
Operating temperature range (°C)-40 to 85
SOIC (DW)20131.84 mm² 12.8 x 10.3
SOP (NS)2098.28 mm² 12.6 x 7.8
SSOP (DB)2056.16 mm² 7.2 x 7.8
TSSOP (PW)2041.6 mm² 6.5 x 6.4

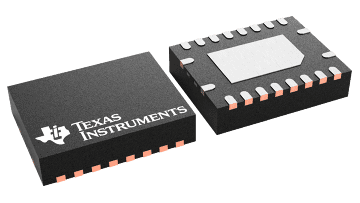

VQFN (RGY)2015.75 mm² 4.5 x 3.5
