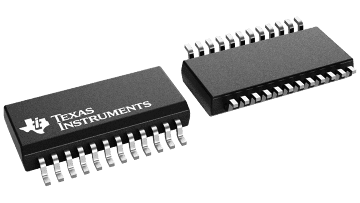

This bus-interface register is designed to eliminate the extra packages required to buffer existing registers and provide extra data width for wider address/data paths or buses carrying parity. The CY74FCT823T is a 9-bit-wide buffered register with clock-enable (EN) and clear (CLR) inputs that are ideal for parity bus interfacing in high-performance microprogrammed systems. It is ideal for use as an output port requiring high IOL/IOH.
This device is designed for high-capacitance load drive capability, while providing low-capacitance bus loading at both inputs and outputs. Outputs are designed for low-capacitance bus loading in the high-impedance state.
This device is fully specified for partial-power-down applications using Ioff. The Ioff circuitry disables the outputs, preventing damaging current backflow through the device when it is powered down.
| Number of channels | 9 |
| Technology family | FCT |
| Supply voltage (min) (V) | 4.75 |
| Supply voltage (max) (V) | 5.25 |
| Input type | TTL-Compatible CMOS |
| Output type | 3-State |
| Clock frequency (max) (MHz) | 100 |
| IOL (max) (mA) | 64 |
| IOH (max) (mA) | -32 |
| Supply current (max) (µA) | 200 |
| Features | Partial power down (Ioff), Very high speed (tpd 5-10ns) |
| Operating temperature range (°C) | -40 to 85 |
| Rating | Catalog |

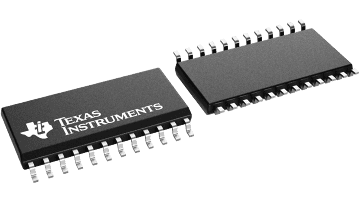

| SOIC (DW) | 24 | 159.65 mm² 15.5 x 10.3 |
| SSOP (DBQ) | 24 | 51.9 mm² 8.65 x 6 |
