The LME49726 is a low distortion, low noise rail-to-rail output audio operational amplifier optimized and fully specified for high performance, high fidelity applications. The LME49726 delivers superior audio signal amplification for outstanding audio performance. The LME49726 has a very low THD+N to easily satisfy demanding audio applications. To ensure that the most challenging loads are driven without compromise, the LME49726 provides output current greater than 300mA at 5V. Further, dynamic range is maximized by an output that drives 2kΩ loads to within 4mV of either power supply voltage.
The LME49726 has a supply range of 2.5V to 5.5V. Over this supply range the LME49726’s input circuitry maintains excellent common-mode and power supply rejection, as well as maintaining its low input bias current. The LME49726 is unity gain stable.
All trademarks are the property of their respective owners.
| Number of channels | 2 |
| Total supply voltage (+5 V = 5, ±5 V = 10) (min) (V) | 2.5 |
| Total supply voltage (+5 V = 5, ±5 V = 10) (max) (V) | 5.5 |
| GBW (typ) (MHz) | 6.25 |
| Slew rate (typ) (V/µs) | 3.7 |
| Rail-to-rail | Out |
| Vos (offset voltage at 25°C) (max) (mV) | 2.5 |
| Iq per channel (typ) (mA) | 0.7 |
| Vn at 1 kHz (typ) (nV√Hz) | 6.9 |
| Features | Shutdown |
| THD + N at 1 kHz (typ) (%) | 0.00008 |
| Rating | Catalog |
| Operating temperature range (°C) | -40 to 85 |
| Iout (typ) (A) | 0.35 |
| Architecture | Voltage FB |
| CMRR (typ) (dB) | 95 |

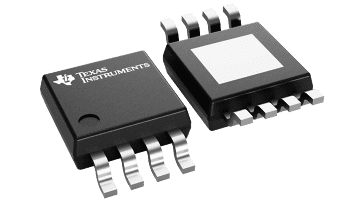

| HVSSOP (DGN) | 8 | 14.7 mm² 3 x 4.9 |
