The x92FCT827T devices are 10-bit bus drivers that provide high-performance bus-interface buffering for wide data/address paths or buses carrying parity. The 10-bit buffers have NANDed output enables for maximum control flexibility. The x92FCT827T devices are designed for high-capacitance-load drive capability, while providing low-capacitance bus loading at both inputs and outputs. All outputs are designed for low-capacitance bus loading in the high-impedance state.
This device is fully specified for partial-power-down applications using Ioff. The Ioff circuitry disables the outputs, preventing damaging current backflow through the device when it is powered down.
| Technology family | FCT |
| Supply voltage (min) (V) | 4.75 |
| Supply voltage (max) (V) | 5.25 |
| Number of channels | 10 |
| IOL (max) (mA) | 64 |
| Supply current (max) (µA) | 500 |
| IOH (max) (mA) | -32 |
| Input type | TTL-Compatible CMOS |
| Output type | 3-State |
| Features | Over-voltage tolerant inputs, Very high speed (tpd 5-10ns) |
| Rating | Catalog |
| Operating temperature range (°C) | -40 to 85 |

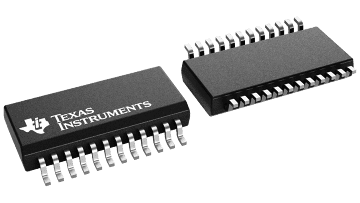

| SOIC (DW) | 24 | 159.65 mm² 15.5 x 10.3 |

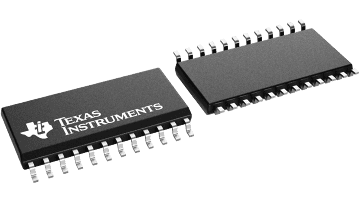

| SSOP (DBQ) | 24 | 51.9 mm² 8.65 x 6 |
