These data selectors/multiplexers provide full binary decoding to select one-of-eight data sources. The strobe (G) input must be at a low logic level to enable the inputs. A high level at the strobe terminal forces the W output high and the Y output low.
The SN54ALS151 is characterized for operation over the full military temperature range of -55°C to 125°C. The SN74ALS151 and SN74AS151 are characterized for operation from 0°C to 70°C.
| Technology family | ALS |
| Function | Digital Multiplexer |
| Configuration | 8 |
| Number of channels | 1 |
| Operating temperature range (°C) | 0 to 70 |
| Rating | Catalog |

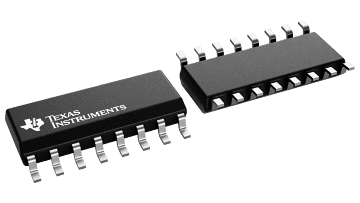

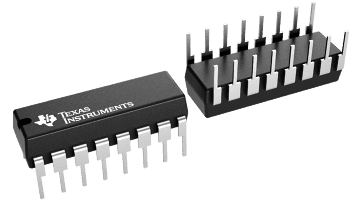

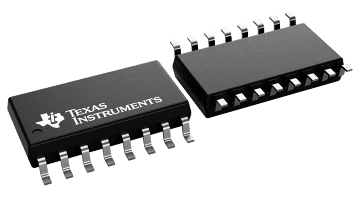

| PDIP (N) | 16 | 181.42 mm² 19.3 x 9.4 |
| SOIC (D) | 16 | 59.4 mm² 9.9 x 6 |
| SOP (NS) | 16 | 79.56 mm² 10.2 x 7.8 |
