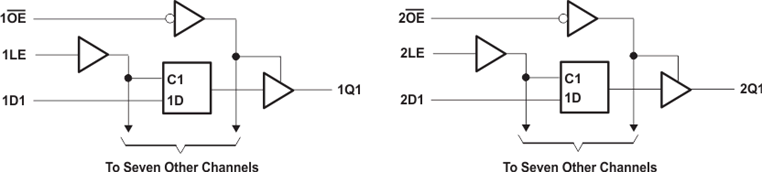

The SNxAHCT16373 devices are 16-bit transparent D-type latches with 3-state outputs designed specifically for driving highly capacitive or relatively low-impedance loads. They are particularly suitable for implementing buffer registers, I/O ports, bidirectional bus drivers, and working registers.
| Number of channels | 16 |
| Technology family | AHCT |
| Supply voltage (min) (V) | 4.5 |
| Supply voltage (max) (V) | 5.5 |
| Input type | TTL-Compatible CMOS |
| Output type | 3-State |
| Clock frequency (max) (MHz) | 110 |
| IOL (max) (mA) | 8 |
| IOH (max) (mA) | -8 |
| Supply current (max) (µA) | 40 |
| Features | Balanced outputs, Flow-through pinout, Very high speed (tpd 5-10ns) |
| Operating temperature range (°C) | -40 to 125 |
| Rating | Catalog |

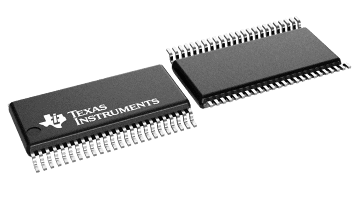

| SSOP (DL) | 48 | 164.358 mm² 15.88 x 10.35 |

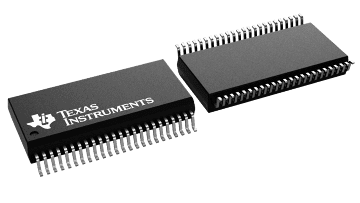

| TSSOP (DGG) | 48 | 101.25 mm² 12.5 x 8.1 |

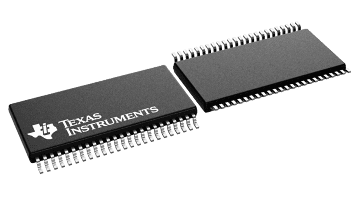

| TVSOP (DGV) | 48 | 62.08 mm² 9.7 x 6.4 |
