THS4513-SP

THS4513-SP

正在供货

抗辐射 V 类宽带全差动放大器

产品详情
  • 说明
  • 特性
  • 参数
  • 封装 | 引脚 | 尺寸

The THS4513 is a wideband, fully differential op amp designed for 3.3 V to 5 V data-acquisition systems. It has very low noise at 2.2 nV/ load. Slew rate is very high at 5100 V/µs and with settling time of 5.5 ns to 1% (2 V step), it is ideal for pulsed applications. It is suitable for minimum gain of 6 dB.

To allow for dc coupling to ADCs, its unique output common-mode control circuit maintains the output common-mode voltage within 5 mV offset (typ) from the set voltage, when set within 0.5 V of mid-supply, with less than 4 mV differential offset voltage. The common-mode set point is set to mid-supply by internal circuitry, which may be over-driven from an external source.

The input and output are optimized for best performance with their common-mode voltages set to mid-supply. Along with high performance at low power supply voltage, this makes for extremely high performance single supply 5 V data acquisition systems.

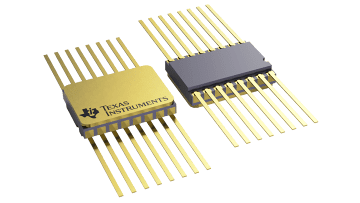

The THS4513 is offered in a 16-pin ceramic flatpack package (W), and is characterized for operation over the full military temperature range from -55°C to 125°C.

  • Fully Differential Architecture
  • Centered Input Common-Mode Range
  • Minimum Gain of 2V/V (6 dB)
  • Bandwidth: 1100 MHz (Gain = 6 dB)
  • Slew Rate: 5100 V/µs
  • 1% Settling Time: 5.5 ns
  • HD2: -76 dBc at 70 MHz
  • HD3: -88 dBc at 70 MHz
  • OIP2: 84 dBm at 70 MHz
  • OIP3: 42 dBm at 70 MHz
  • Input Voltage Noise: 2.2 nV/Hz (f >10 MHz)
  • Noise Figure: 19.8 dB
  • Output Common-Mode Control
  • Power Supply:
    • Voltage: 3 V (±1.5 V) to 5 V (±2.5 V)
    • Current: 37.7 mA
  • Power-Down Capability: 0.65 mA
  • Rad-Tolerant: 150 kRad (Si) TID
  • QML-V Qualified, SMD 5962-07223
  • APPLICATIONS
    • 5 V Data-Acquisition Systems
    • High-Linearity ADC Amplifier
    • Wireless Communication
    • Medical Imaging
    • Test and Measurement

Number of channels1
Total supply voltage (+5 V = 5, ±5 V = 10) (min) (V)3
Total supply voltage (+5 V = 5, ±5 V = 10) (max) (V)5.5
BW at Acl (MHz)1100
Acl, min spec gain (V/V)1
Slew rate (typ) (V/µs)5100
ArchitectureBipolar, Fully Differential ADC Driver
Vn at flatband (typ) (nV√Hz)2.2
Iq per channel (typ) (mA)37.7
Rail-to-railNo
Vos (offset voltage at 25°C) (max) (mV)4
Operating temperature range (°C)-55 to 125
Iout (typ) (mA)96
2nd harmonic (dBc)106
3rd harmonic (dBc)108
Frequency of harmonic distortion measurement (MHz)10
GBW (typ) (MHz)3000
Input bias current (max) (pA)15500000
FeaturesShutdown
CMRR (typ) (dB)90
RatingSpace
CFP (HKT)1672.136 mm² 10.16 x 7.1
