The CY74FCT191T is a reversible modulo-16 binary counter, featuring synchronous counting and asynchronous presetting. The preset allows the CY74FCT191T to be used in programmable dividers. The count enable input, terminal count output, and ripple-clock output make possible a variety of methods of implementing multiusage counters. In the counting modes, state changes are initiated by the rising edge of the clock.
This device is fully specified for partial-power-down applications using Ioff. The Ioff circuitry disables the outputs, preventing damaging current backflow through the device when it is powered down.
| Function | Binary Counter |
| Bits (#) | 4 |
| Technology family | FCT |
| Supply voltage (min) (V) | 4.75 |
| Supply voltage (max) (V) | 5.25 |
| Input type | TTL-Compatible CMOS |
| Output type | Push-Pull |
| Features | Partial power down (Ioff), Presettable, Ultra high speed (tpd <5ns) |
| Operating temperature range (°C) | -40 to 85 |
| Rating | Catalog |

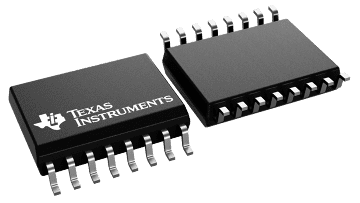

| SOIC (DW) | 16 | 106.09 mm² 10.3 x 10.3 |

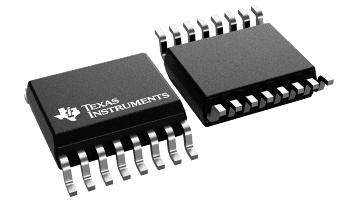

| SSOP (DBQ) | 16 | 29.4 mm² 4.9 x 6 |
