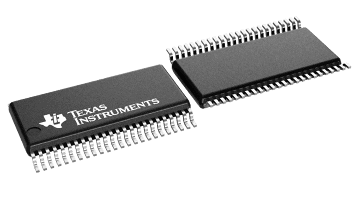

SN74LVCH162244A

正在供货

具有总线保持和三态输出的 16 通道、1.65V 至 3.6V 缓冲器

立即搜索现货

产品详情|
产品购买|

产品详情

说明
特性
参数
封装 | 引脚 | 尺寸

This 16-bit buffer/driver is designed for 1.65-V to 3.6-V V_CC operation.

The device can be used as four 4-bit buffers, two 8-bit buffers, or one 16-bit buffer.

The SN74LVCH162244A device is designed specifically to improve both the performance and density of 3-state memory address drivers, clock drivers, and bus-oriented receivers and transmitters.

Member of the Texas Instruments
Widebus™ Family
Operates From 1.65 V to 3.6 V
Inputs Accept Voltages to 5.5 V
Max t_pd of 4.4 ns at 3.3 V
Output Ports Have Equivalent 26-Ω Series
Resistors, so No External Resistors are Required
Typical V_OLP (Output Ground Bounce)
<0.8 V at V_CC = 3.3 V, T_A = 25°C
Typical V_OHV (Output V_OH Undershoot)
>2 V at V_CC = 3.3 V, T_A = 25°C
I_off Supports Live Insertion, Partial-Power-Down Mode,
and Back-Drive Protection
Supports Mixed-Mode Signal Operation on All Ports
(5-V Input/Output Voltage With 3.3-V V_CC)
Bus Hold on Data Inputs Eliminates the Need for
External Pullup or Pulldown Resistors
Latch-Up Performance Exceeds 250 mA Per JESD 17
ESD Protection Exceeds JESD 22
- 2000-V Human-Body Model (A114-A)
- 200-V Machine Model (A115-A)
- 1000-V Charged-Device Model (C101)

Technology family	LVC
Supply voltage (min) (V)	1.65
Supply voltage (max) (V)	3.6
Number of channels	16
IOL (max) (mA)	12
Supply current (max) (µA)	20
IOH (max) (mA)	-12
Input type	Standard CMOS
Output type	3-State
Features	Balanced outputs, Bus-hold, Damping resistors, Very high speed (tpd 5-10ns)
Rating	Catalog
Operating temperature range (°C)	-40 to 125

SSOP (DL)	48	164.358 mm² 15.88 x 10.35
TSSOP (DGG)	48	101.25 mm² 12.5 x 8.1
TVSOP (DGV)	48	62.08 mm² 9.7 x 6.4
