The THS4304 is a wideband, voltage-feedback operational amplifier designed for use in high-speed analog signal processing chains operating with a single 5 V power supply. Developed in the BiCom3 silicon germanium process technology, the THS4304 offers best-in-class performance using a single 5 V supply as opposed to previous generations of operational amplifiers requiring ±5 V supplies.
The THS4304 is a traditional voltage-feedback topology that provides the following benefits: balanced inputs, low offset voltage and offset current, low offset drift, high common mode and power supply rejection ratio.

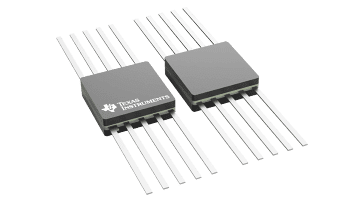

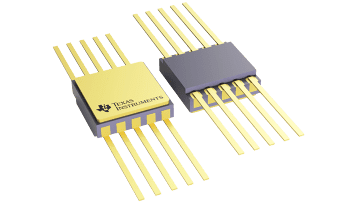

The THS4304 is offered in 10-pin ceramic flatpack (U) and is specified over the full military temperature range, -55°C to 125°C.
| Architecture | Voltage FB |
| Number of channels | 1 |
| Total supply voltage (+5 V = 5, ±5 V = 10) (min) (V) | 2.7 |
| Total supply voltage (+5 V = 5, ±5 V = 10) (max) (V) | 5 |
| GBW (typ) (MHz) | 3000 |
| BW at Acl (MHz) | 3000 |
| Acl, min spec gain (V/V) | 1 |
| Slew rate (typ) (V/µs) | 790 |
| Vn at flatband (typ) (nV√Hz) | 2.4 |
| Vn at 1 kHz (typ) (nV√Hz) | 8.5 |
| Iq per channel (typ) (mA) | 18 |
| Vos (offset voltage at 25°C) (max) (mV) | 4 |
| Rail-to-rail | No |
| Rating | Space |
| Operating temperature range (°C) | -55 to 125 |
| CMRR (typ) (dB) | 95 |
| Input bias current (max) (pA) | 12000000 |
| Offset drift (typ) (µV/°C) | 5 |
| Iout (typ) (mA) | 100 |
| 2nd harmonic (dBc) | 84 |
| 3rd harmonic (dBc) | 100 |
| Frequency of harmonic distortion measurement (MHz) | 10 |
| Radiation, TID (typ) (krad) | 150 |
| Radiation, SEL (MeV·cm2/mg) | Bipolar |
| CFP (HKK) | 10 | 40.3225 mm² 6.35 x 6.35 |
