The 'AC16244 are 16-bit buffers/line drivers designed specifically to improve both the performance and density of 3-state memory address drivers, clock drivers, and bus-oriented receivers and transmitters. They can be used as four 4-bit buffers, two 8-bit buffers, or one 16-bit buffer. These devices provide true outputs and symmetrical active-low output-enable
inputs. When
is low, the device passes noninverted data from the A inputs to the Y outputs. When is high, the outputs are in the high-impedance state.
The 74AC16244 is packaged in the TI's shrink small-outline package, which provides twice the I/O pin count and functionality of standard small-outline packages in the same printed-circuit-board area.
The 54AC16244 is characterized for operation over the full military temperature range of -55°C to 125°C. The 74AC16244 is characterized for operation from -40°C to 85°C.
EPIC and Widebus are trademarks of Texas Instruments Incorporated.
| Technology family | AC |
| Supply voltage (min) (V) | 3 |
| Supply voltage (max) (V) | 5.5 |
| Number of channels | 16 |
| IOL (max) (mA) | 24 |
| Supply current (max) (µA) | 80 |
| IOH (max) (mA) | -24 |
| Input type | Standard CMOS |
| Output type | 3-State |
| Features | Balanced outputs, Input clamp diode, Very high speed (tpd 5-10ns) |
| Rating | Catalog |
| Operating temperature range (°C) | -40 to 85 |

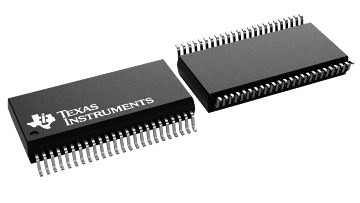

| SSOP (DL) | 48 | 164.358 mm² 15.88 x 10.35 |

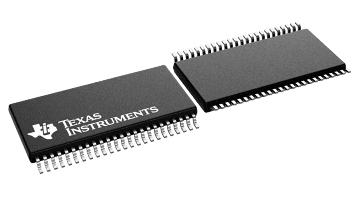

| TSSOP (DGG) | 48 | 101.25 mm² 12.5 x 8.1 |
