The 74ACT11139 is designed for use in high-performance memory-decoding or data-routing applications that require very short propagation delay times. In high-performance memory systems, this decoder is used to minimize the effects of system decoding.
The 74ACT11139 is composed of two individual 2-line to 4-line decoders in a single package. The active-low enables (1G or 2G) can be used as data lines in demultiplexing applications. This decoder/demultiplexer features fully buffered inputs, each of which represents only one normalized load to its driving circuit.
The 74ACT11139 is characterized for operation from -40°C to 85°C.
EPIC is a trademark of Texas Instruments Incorporated.
| Technology family | ACT |
| Number of channels | 2 |
| Operating temperature range (°C) | -40 to 85 |
| Rating | Catalog |
| Supply current (max) (µA) | 80 |

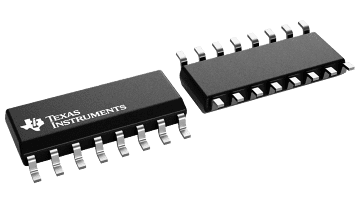

| SOIC (D) | 16 | 59.4 mm² 9.9 x 6 |

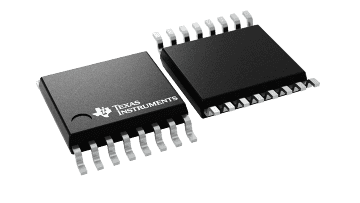

| TSSOP (PW) | 16 | 32 mm² 5 x 6.4 |
