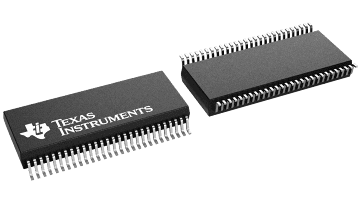

The 'ABT16825 devices are 18-bit buffers and line drivers designed specifically to improve both the performance and density of 3-state memory address drivers, clock drivers, and bus-oriented receivers and transmitters. These devices can be used as two 9-bit buffers or one 18-bit buffer. They provide true data.
The 3-state control gate is a 2-input AND gate with active-low inputs so that, if either output-enable (OE1 or OE2) input is high, all nine affected outputs are in the high-impedance state.
When VCC is between 0 and 2.1 V, the device is in the high-impedance state during power up or power down. However, to ensure the high-impedance state above 2.1 V, OE should be tied to VCC through a pullup resistor; the minimum value of the resistor is determined by the current-sinking capability of the driver.
Widebus is a trademark of Texas Instruments.
| Technology family | ABT |
| Supply voltage (min) (V) | 4.5 |
| Supply voltage (max) (V) | 5.5 |
| Number of channels | 18 |
| IOL (max) (mA) | 64 |
| Supply current (max) (µA) | 32000 |
| IOH (max) (mA) | -32 |
| Input type | TTL-Compatible CMOS |
| Output type | 3-State |
| Features | Over-voltage tolerant inputs, Partial power down (Ioff), Power up 3-state, Ultra high speed (tpd <5ns) |
| Rating | Catalog |
| Operating temperature range (°C) | -40 to 85 |
| SSOP (DL) | 56 | 190.647 mm² 18.42 x 10.35 |
