The SN64BCT125A bus buffer features independent line drivers with 3-state outputs. Each output is disabled when the associated output-enable (
) input is high.
The SN64BCT125A is characterized for operation from -40°C to 85°C and 0°C to 70°C.
| Technology family | BCT |
| Supply voltage (min) (V) | 4.5 |
| Supply voltage (max) (V) | 5.5 |
| Number of channels | 4 |
| IOL (max) (mA) | 64 |
| Supply current (max) (µA) | 49000 |
| IOH (max) (mA) | -15 |
| Input type | TTL-Compatible CMOS |
| Output type | 3-State |
| Features | Power up 3-state, Very high speed (tpd 5-10ns) |
| Rating | Catalog |
| Operating temperature range (°C) | -40 to 85 |

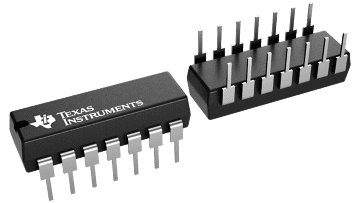

| PDIP (N) | 14 | 181.42 mm² 19.3 x 9.4 |
| SOIC (D) | 14 | 51.9 mm² 8.65 x 6 |
