The LM7341 is a rail-to-rail input and output amplifier in a small SOT-23 package with a wide supply voltage and temperature range. The LM7341 has a 4.6 MHz gain bandwidth and a 1.9 volt per microsecond slew rate, and draws 0.75 mA of supply current at no load.
The LM7341 is tested at −40°C, 125°C and 25°C with modern automatic test equipment. Detailed performance specifications at 2.7V, ±5V, and ±15V and over a wide temperature range make the LM7341 a good choice for automotive, industrial, and other demanding applications.
Greater than rail-to-rail input common mode range with a minimum 76 dB of common mode rejection at ±15V makes the LM7341 a good choice for both high and low side sensing applications.
LM7341 performance is consistent over a wide voltage range, making the part useful for applications where the supply voltage can change, such as automotive electrical systems and battery powered electronics.
The LM7341 uses a small SOT23-5 package, which takes up little board space, and can be placed near signal sources to reduce noise pickup.
All trademarks are the property of their respective owners.
| Number of channels | 1 |
| Total supply voltage (+5 V = 5, ±5 V = 10) (max) (V) | 32 |
| Total supply voltage (+5 V = 5, ±5 V = 10) (min) (V) | 2.7 |
| Rail-to-rail | In, Out |

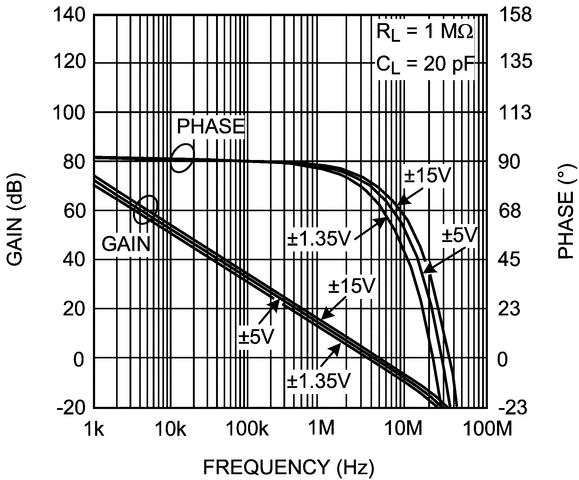

| GBW (typ) (MHz) | 4.6 |
| Slew rate (typ) (V/µs) | 1.9 |
| Vos (offset voltage at 25°C) (max) (mV) | 4 |
| Iq per channel (typ) (mA) | 0.7 |
| Vn at 1 kHz (typ) (nV√Hz) | 31 |
| Rating | Catalog |
| Operating temperature range (°C) | -40 to 125 |
| Offset drift (typ) (µV/°C) | 2 |
| Input bias current (max) (pA) | 250000 |
| CMRR (typ) (dB) | 100 |
| Iout (typ) (A) | 0.01 |
| Architecture | Bipolar |
| Input common mode headroom (to negative supply) (typ) (V) | -0.3 |
| Input common mode headroom (to positive supply) (typ) (V) | 0.3 |

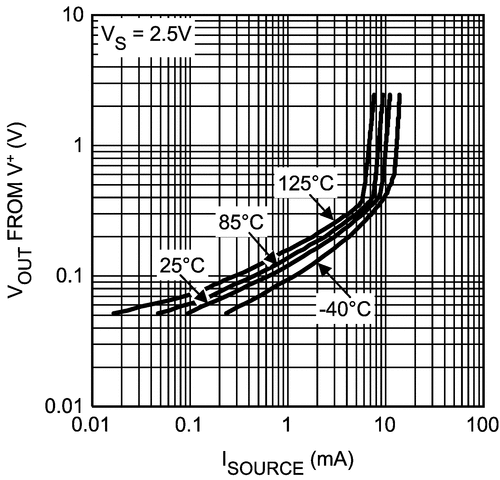

| Output swing headroom (to negative supply) (typ) (V) | 0.16 |
| Output swing headroom (to positive supply) (typ) (V) | -0.135 |
| SOT-23 (DBV) | 5 | 8.12 mm² 2.9 x 2.8 |
