This octal buffer/line driver is designed specifically to improve both the performance and density of 3-state memory address drivers, clock drivers, and bus-oriented receivers and transmitters. This device provides inverting outputs and symmetrical active-low output-enable (
) inputs. This device features high fan-out and improved fan-in.

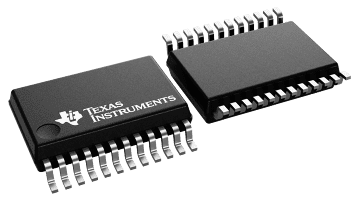

The 74AC11240 is organized as two 4-bit buffers/line drivers with separate inputs. When is low, the device passes inverted data from the A inputs to the Y outputs. When is high, the outputs are in the high-impedance state.
The 74AC11240 is characterized for operation from -40°C to 85°C.
EPIC is a trademark of Texas Instruments Incorporated.
| Technology family | AC |
| Supply voltage (min) (V) | 3 |
| Supply voltage (max) (V) | 5.5 |
| Number of channels | 8 |
| IOL (max) (mA) | 24 |
| IOH (max) (mA) | -24 |
| Supply current (max) (µA) | 80 |
| Input type | Standard CMOS |
| Output type | 3-State |
| Features | Balanced outputs, Input clamp diode, Very high speed (tpd 5-10ns) |
| Rating | Catalog |
| Operating temperature range (°C) | -40 to 85 |

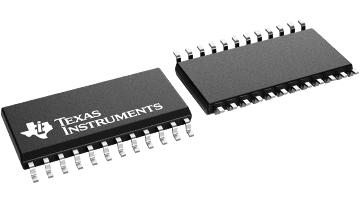

| SOIC (DW) | 24 | 159.65 mm² 15.5 x 10.3 |
| SSOP (DB) | 24 | 63.96 mm² 8.2 x 7.8 |
| TSSOP (PW) | 24 | 49.92 mm² 7.8 x 6.4 |
