说明

Microchip基于ARM®的SAM7SE512是基于32位ARM7TDMI RISC处理器的SAM7SE系列闪存微控制器的成员。

它的最高工作速度为55MHz，具有512KB的双组闪存和32KB的SRAM。

外围设备包括一个支持静态存储器的外部总线接口（EBI）、启用ECC的NAND、CompactFlash和SDRAM、UART、两个USART、TWI（I^2.C） 、SPI、SSC、四个16位PWM控制器、三个16位定时器、一个RTT和一个8x10位ADC。

它实现了27 MIPS的嵌入式闪存单周期指令访问。多层总线矩阵、多个SRAM组、PDC和DMA支持并行任务并最大限度地提高数据吞吐量。

SAM7SE512的工作电压为1.65V至3.6V，有144引脚LFBGA和LQFP 128引脚封装。

特性

• ARM7TDMI® ARM® Thumb® Processor 32-bit RISC Architecture
• High-density 16-bit Instruction Set
• EmbeddedICE™ In-circuit Emulation, Debug Communication Channel Support
• 512Kbytes embedded Flash
• 32 Kbytes embedded SRAM, Single-cycle Access at Maximum Speed
• Memory Controller (MC), External Bus Interface
• Memory Protection Unit
• Based on Power-on Reset Cells and Low-power Factory-calibrated Brownout Detector
• Low-power RC Oscillator, 3 to 20 MHz On-chip Oscillator and One PLL
• Power Management Controller (PMC)
• Advanced Interrupt Controller (AIC)
• Two-wire UART and Support for Debug Communication Channel interrupt, Programmable ICE Access Prevention
• 20-bit Programmable Counter plus 12-bit Interval Counter
• Windowed Watchdog (WDT)
• Real-time Timer (RTT)
• Three Parallel Input/Output Controllers (PIO)
• Eleven Peripheral DMA Controller (PDC) Channels
• Four High-current Drive I/O lines, Up to 16 mA Each

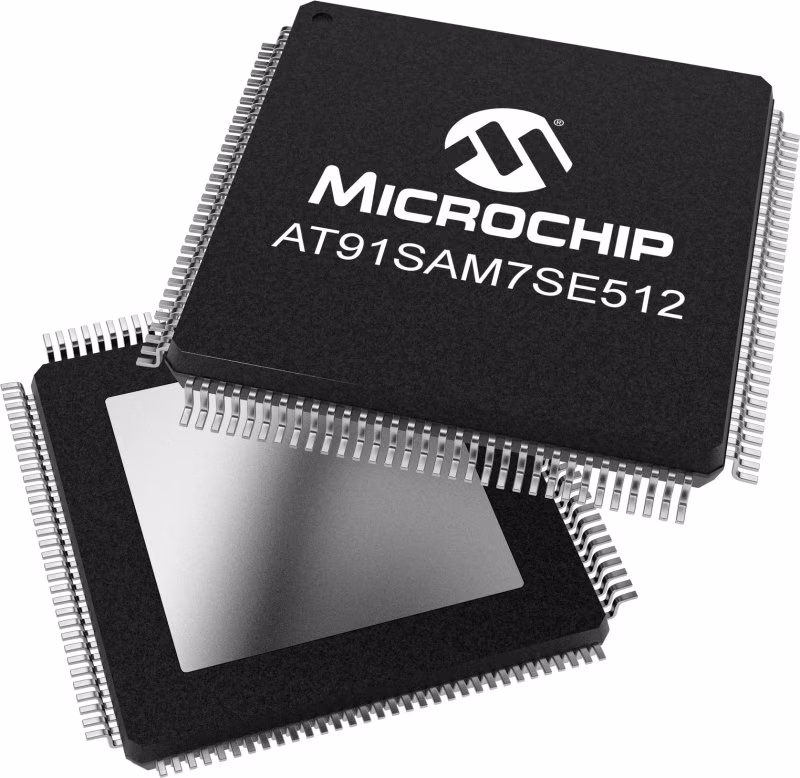

• 128-lead LQFP Green Package

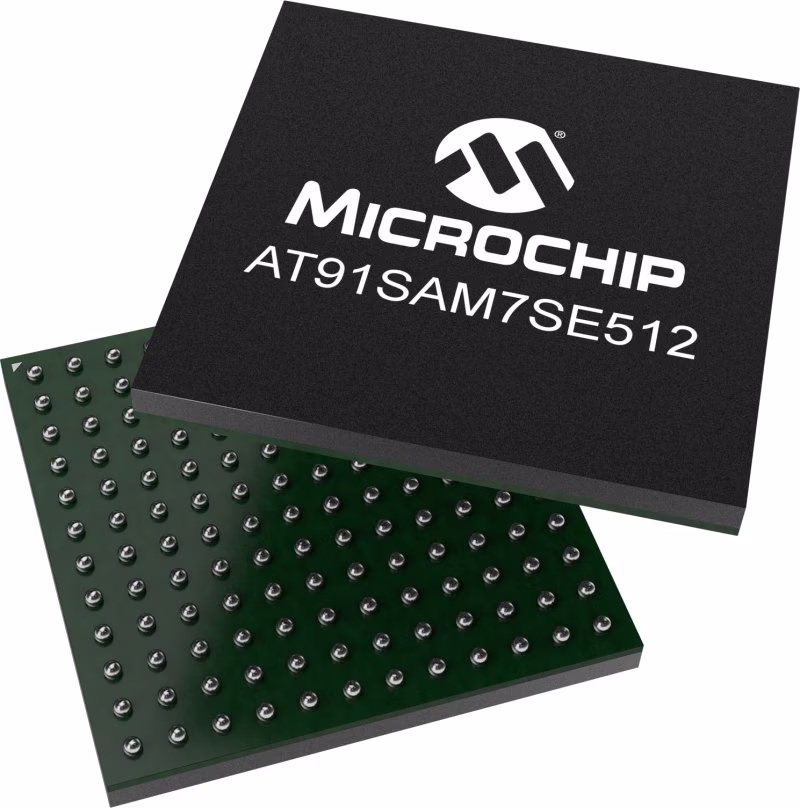

• 144-ball LFBGA RoHS-compliant Package
• One Synchronous Serial Controller (SSC)
• Two Universal Synchronous/Asynchronous Receiver Transmitters (USART)
• One Master/Slave Serial Peripheral Interfaces (SPI)
• One USB 2.0 Full Speed (12 Mbits per second) Device Port
• One Three-channel 16-bit Timer/Counter (TC)
• One Four-channel 16-bit PWM Controller (PWMC)
• One Two-wire Interface (TWI)
• One 8-channel 10-bit Analog-to-Digital Converter, Four Channels Multiplexed with Digital I/Os
• Up to 55 MHz at 1.8V and 85⋅ C Worst Case Conditions
• Up to 48 MHz at 1.65V and 85⋅ C Worst Case Conditions
• SAM-BA - Interface with SAM-BA Graphic User Interface
• IEEE® 1149.1 JTAG Boundary Scan on All Digital Pins
