说明

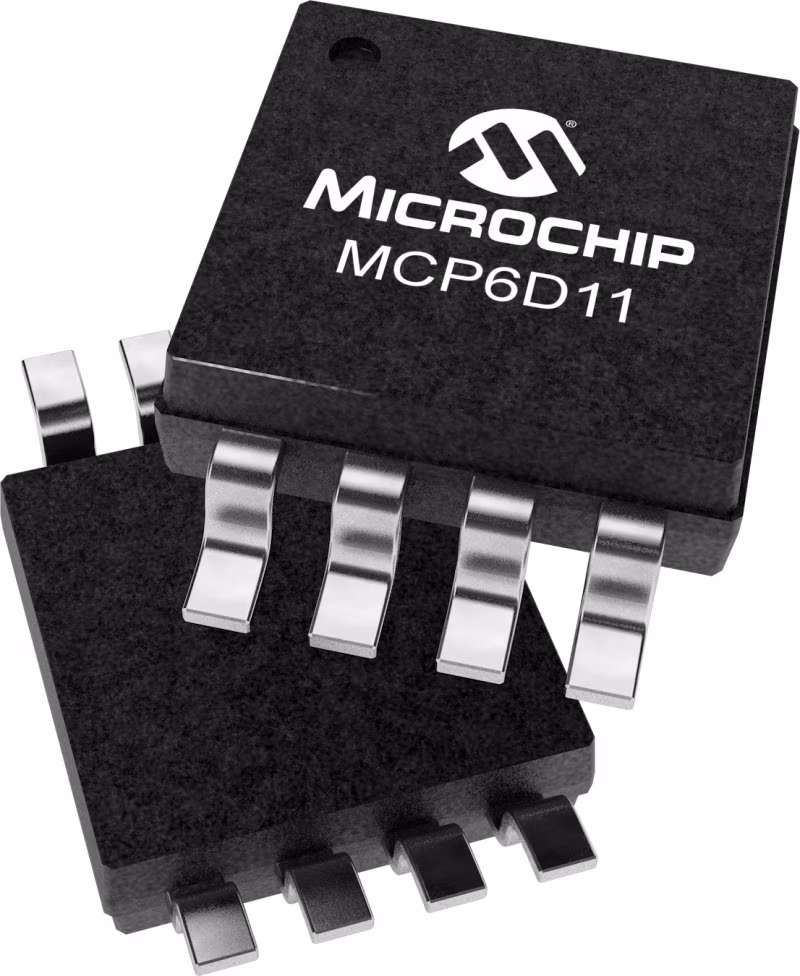

MCP6D11是一款低噪声、低失真的差分放大器，专为驱动MCP331x1D系列等高性能高速ADC而优化。除了低噪声和低失真外，MCP6D11在2.5V电源上仅消耗3.5mW的静态功率。对于功率敏感的应用，断电引脚可将功耗降低到13 uW以下。

特性

Low Power
• Iq of only 1.4 mA typical
• Operating voltage range from 2.5V to 5.5V

High Speed
• Gain-bandwidth product: 90 MHz
• Slew rate: 25 V/us
• Fast settling: 200 ns to 0.01%

Easy to Use
• Low offset: 150 uV maximum
• Rail-to-rail output
• Input common mode range includes negative rail
• Power-down function
• Small Packages: 8-pin MSOP, 16-pin 3x3 QFN
• Extended temperature: -40 to +125C
