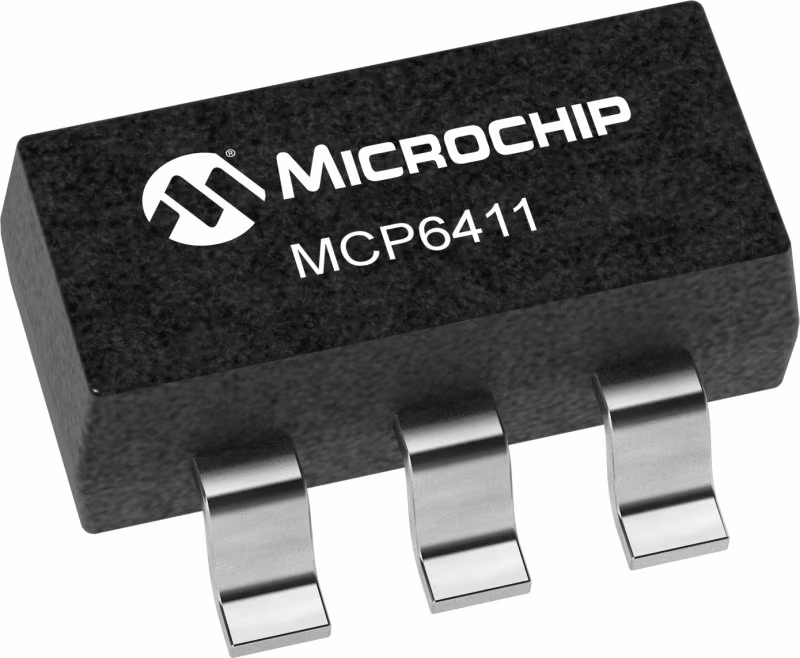

Microchip微芯 MCP6411 产品介绍
2026-04-14
0次
说明
MCP6411是一款通用运算放大器，可在1.7至5.5V的工作范围内提供集成EMI保护和轨对轨输入/输出。该放大器的典型GBWP为1 MHz，典型静态电流为50 uA。MCP6411有SC-70和SOT-23封装。
特性
- Low Quiescent Current: 50 µA (typical)
- Low Input Offset Voltage: ±1.0 mV (maximum)
- Enhanced EMI Protection: EMIRR 90 dB at 1.8 GHz
- Supply Voltage Range: 1.7V to 5.5V
- Gain Bandwidth Product: 1 MHz (typical)
- Rail-to-Rail Input/Output
- Slew Rate: 0.5 V/µs (typical)
- Unity Gain Stable
- No Phase Reversal
- Small Packages: SC70-5, SOT-23-5
- Extended Temperature Range: - -40°C to +125°C
参数
类型 | 描述 |
# Per Package | 1 |
GBWP (kHz) | 1000 |
VOS Max. (uV) | 1000 |
Supply Voltage Min. (V) | 1.7 |
Supply Voltage Max. (V) | 5.5 |
Iq Typical (µA) | 47 |
Iq Max (uA) | 55 |
Input Voltage Noise Density (nV/rt(Hz)) | 38 |
PSRR Min (dB) | 90 |
CMRR Min (dB) | 90 |
Ib (pA) | 1 |
PM (deg) | 55 |
Isc (mA) | 6 |
Slew Rate (V/µs) | 0 |
