Microchip微芯 MCP6L71 产品介绍
2026-04-14
0次
说明

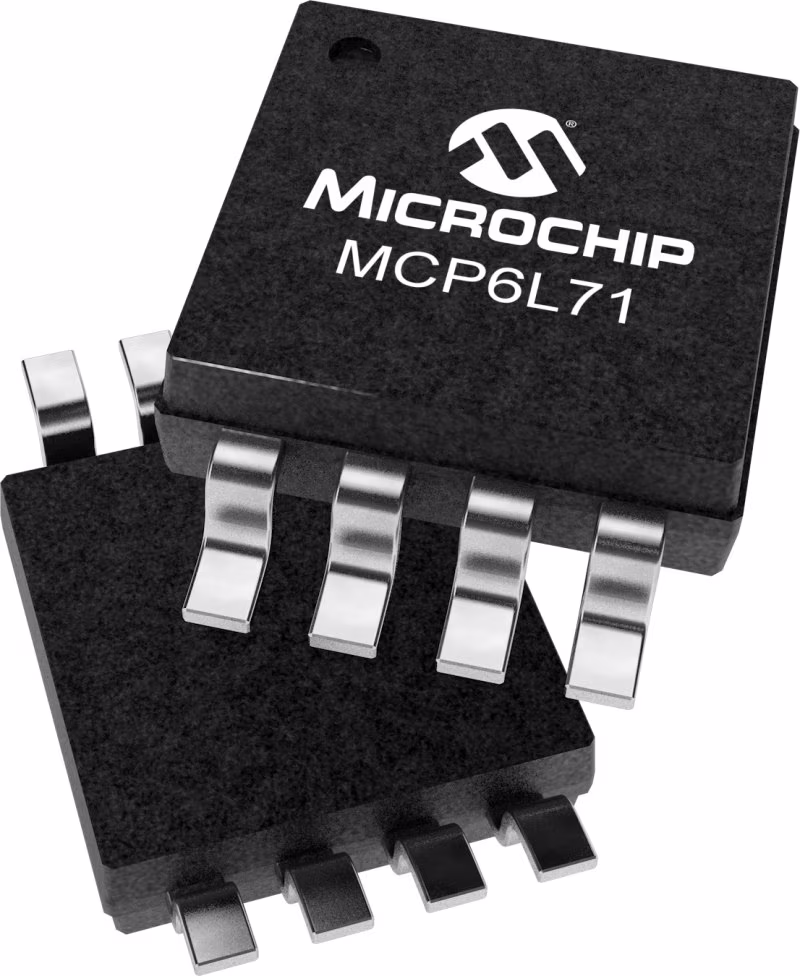

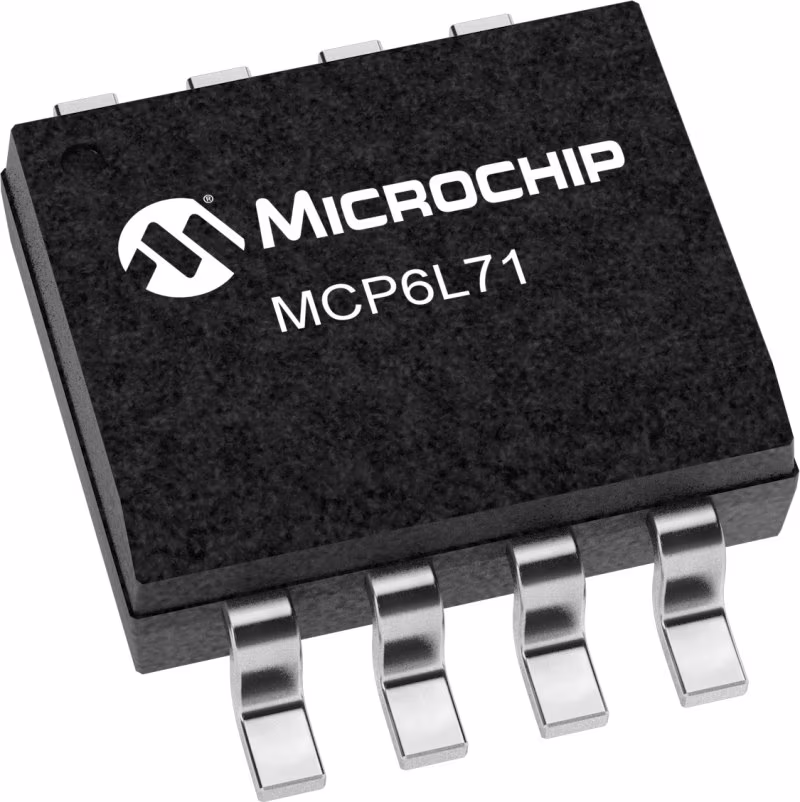

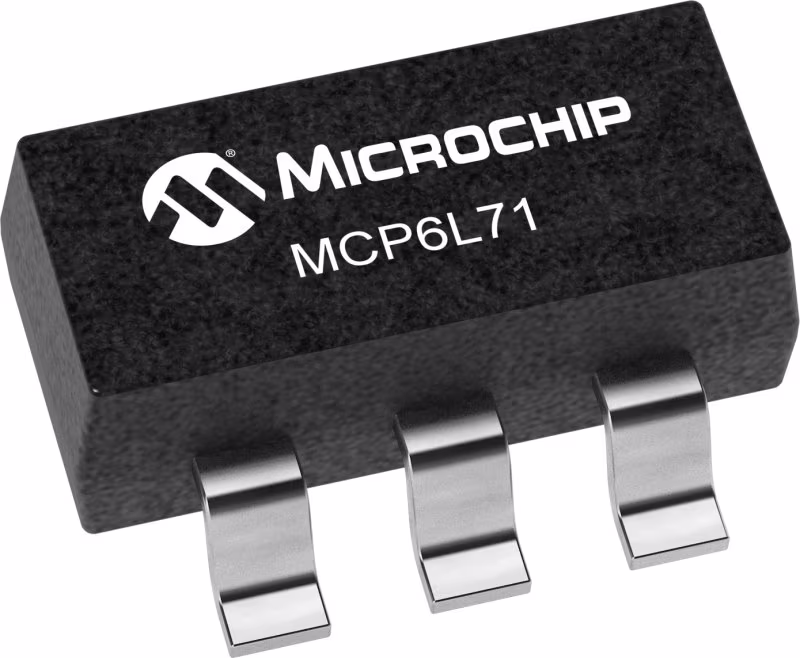

MCP6L71运算放大器具有2MHz增益带宽乘积和每个放大器150uA的低静态电流。MCP6L71的供电电压在2.0V至6.0V之间，具有轨对轨输入和输出摆动。MCP6L71提供SOT 23、SOIC和MSOP封装。
特性
- Input Offset Voltage: ±4 mV (max)
- Quiescent Current: 150 µA (typical)
- Common Mode Rejection Ratio: 91 dB (typical)
- Power Supply Rejection Ratio: 89dB (typical)
- Rail-to-Rail Input/Output
- Supply Voltage Range: 2V to 6V
- Gain Bandwidth Product: 2 MHz (typical)
- Slew Rate: 0.9V/µs (typical)
- Unity Gain Stable
- Available in Standard and Reverse Pin Outs
- Extended Temperature Range: -40°C to +125°C
参数
类型 | 描述 |
# Per Package | 1 |
GBWP (kHz) | 2000 |
VOS Max. (uV) | 4000 |
Supply Voltage Min. (V) | 2.0 |
Supply Voltage Max. (V) | 6.0 |
Iq Typical (µA) | 150 |
Iq Max (uA) | 240 |
Input Voltage Noise Density (nV/rt(Hz)) | 19 |
PSRR Min (dB) | 89 |
CMRR Min (dB) | 91 |
Ib (pA) | 1 |
PM (deg) | 65 |
Isc (mA) | 25 |
Slew Rate (V/µs) | 0.9 |
