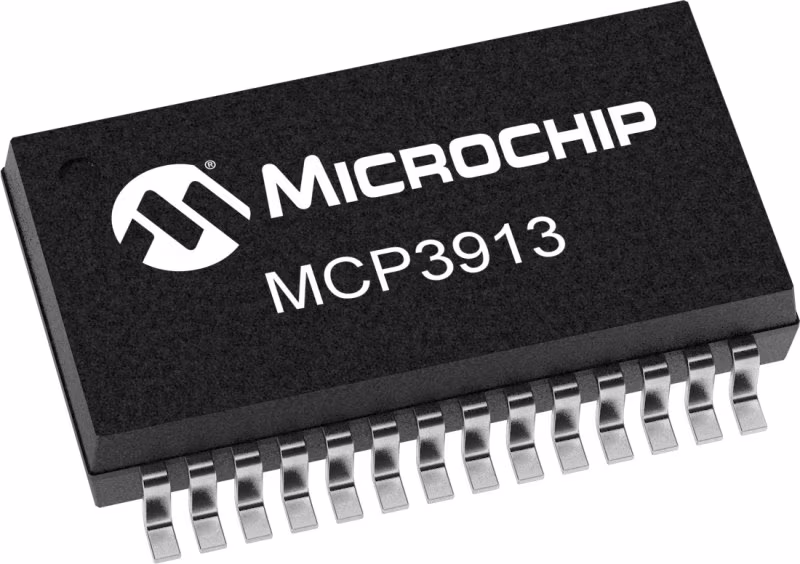

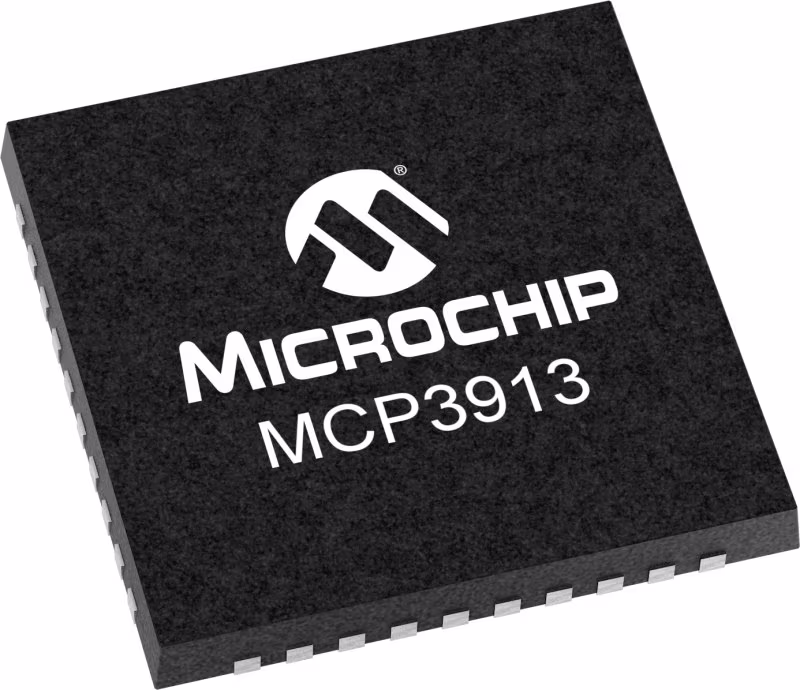

Microchip微芯 MCP3913 产品介绍
2026-04-14
0次
说明
MCP3913设备是一个3V六通道模拟前端(AFE,包含六个同时采样Δ-∑ADC、六个PGA、相位延迟补偿块、低漂移内部参考电压、数字偏移和增益误差校准寄存器以及高速20 MHz SPI兼容串行接口。MCP3913 ADC完全可配置,具有以下功能:16/24位分辨率、32至4096的过采样率(OSR)、1至32x的增益,独立的关机和复位、抖动和自动调零。MCP3913 AFE包括高级安全功能,以确保通信和配置设置的安全,例如串行数据输出和静态寄存器映射配置上的CRC-16校验和。它还包括一个通过8位安全密钥的寄存器映射锁,以阻止处理不需要的写入命令。MCP3913 AFE能够与各种电压和电流传感器接口,包括分流器、电流互感器、Rogowski线圈和霍尔效应传感器。
请联系jeff.keip@microchip.com如果你需要在本页找不到的东西
特性
- Six Simultaneous Sampling 24-bit Delta-Sigma ADCs
- 94.5 dB SINAD, -107 dBc Total Harmonic Distortion (THD) (up to 35th Harmonic), 112 dBFS SFDR for Each Channel
- Enables 0.1% Typical Active Power Measurement Error over a 10,000:1 Dynamic Range
- Advanced Security Features: - 16-bit Cyclic Redundancy Check (CRC) checksum - 16-bit CRC checksum and interrupt alert for register map configuration - Register map lock with 8-bit secure key
- Programmable Data Rate up to 125 ksps
- Oversampling Ratio up to 4096
- Ultra-Low Power Shutdown Mode with < 10 µA
- -122 dB Crosstalk between Channels
- Differential Voltage Reference Input Pins
- High Gain Programmable-Gain Amplifier (PGA) on Each Channel (up to 32 V/V)
- Phase Delay Compensation with 1 µs Time Resolution
- Separate Data Ready Pin for Easy Synchronization
- Individual 24-bit Digital Offset and Gain Error Correction for Each Channel
- High-Speed 20 MHz Serial Peripheral Interface (SPI) with Mode 0,0 and 1,1 Compatibility
- Continuous Read/Write Modes for Minimum Communication Time
- Available in a 28-lead SSOP and 40-lead UQFN Package
- AEC-Q100 Grade 1
参数
类型 | 描述 |
Resolution | 24 |
Sample Rate kSPS Max | 125 |
Input Channels Differential | 6 |
SNRTyp | 95 |
SFDRTyp | 112 |
ENOB | 15.4 |
INLTypLSB | 5 |
