说明

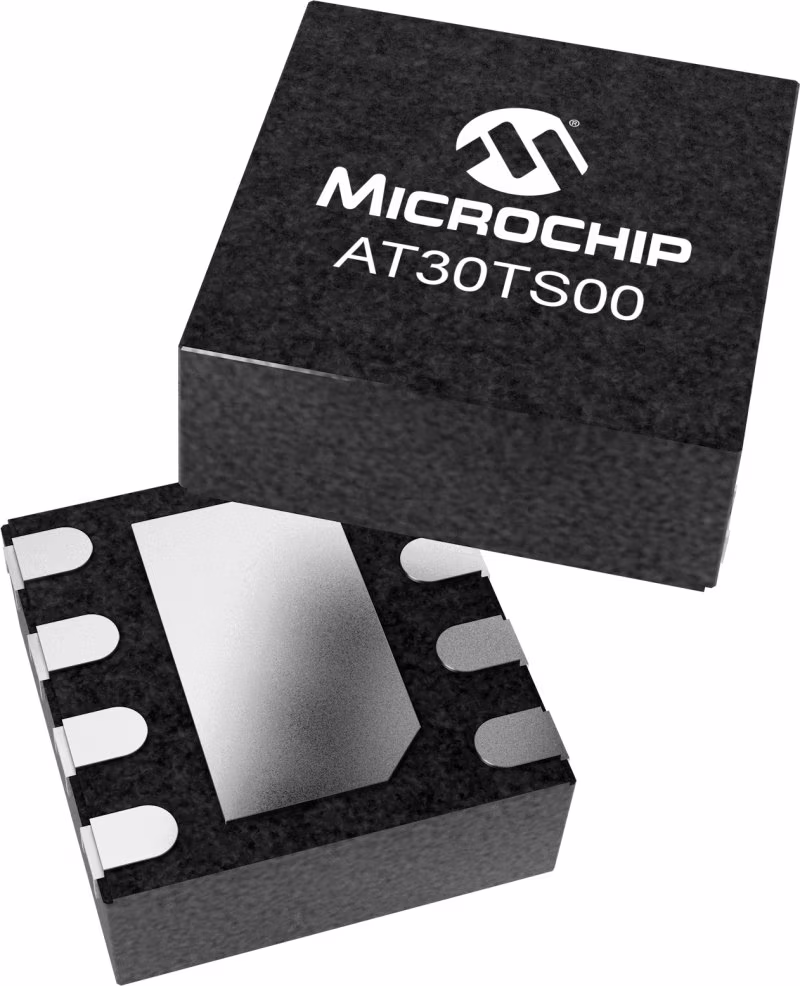

微芯片技术股份有限公司的AT30TS00数字温度传感器将温度从-40°C和+125°C转换为数字字。该传感器符合JEDEC规范TSE3000B3移动平台存储模块热传感器组件。它提供了±0.5°C/±1°C（典型/最大）的精度，从+75°C到+95°C。

特性

• Meets JEDEC Specification TSE3000B3 Optimized for Voltage Range: 2.7V to 3.6V Shutdown/Standby Current: 3 µA (max.) 2-wire I2C™/SMBus Interface meets 25ms to 35ms SMbus timeout Available Packages: DFN-8 Temperature Sensor Features Class B — Temperature-to-Digital Converter Sensor Accuracy: ±0.5°C/±1°C (typ./max.) +75°C to +95°C ±1°C/±2°C (typ./max.) +40°C to +125°C ±2°C/±3°C (typ./max.) 20°C to +125°C Operating Current: 200 µA (typical)
• Optimized for Voltage Range: 2.7V to 3.6V
• Shutdown/Standby Current: 3 µA (max.)
• meets 25ms to 35ms SMbus timeout
• DFN-8
• Class B — Temperature-to-Digital Converter
• ±0.5°C/±1°C (typ./max.) +75°C to +95°C
• ±1°C/±2°C (typ./max.) +40°C to +125°C
• ±2°C/±3°C (typ./max.)
• 20°C to +125°C
• Operating Current: 200 µA (typical)
