特性

• Meets JEDEC JC42.4 Mobile Platform Memory Module Thermal Sensor specification
• Critical Event output pin
• User-programmalbe settings for shutdown modes, Event and critical output limits, and hysteresis limits
• Resolution of 0.25°C per LSB
• ±1°C Max accuracy from +75°C to +95°C
• ±2°C Max accuracy from +40°C to +125°C
• ±3°C Max accuracy from -20°C to +125°C
• Low Operating Current: 200 µA (typical)
• 2-wire I²C™/SMBus Compatible Interface

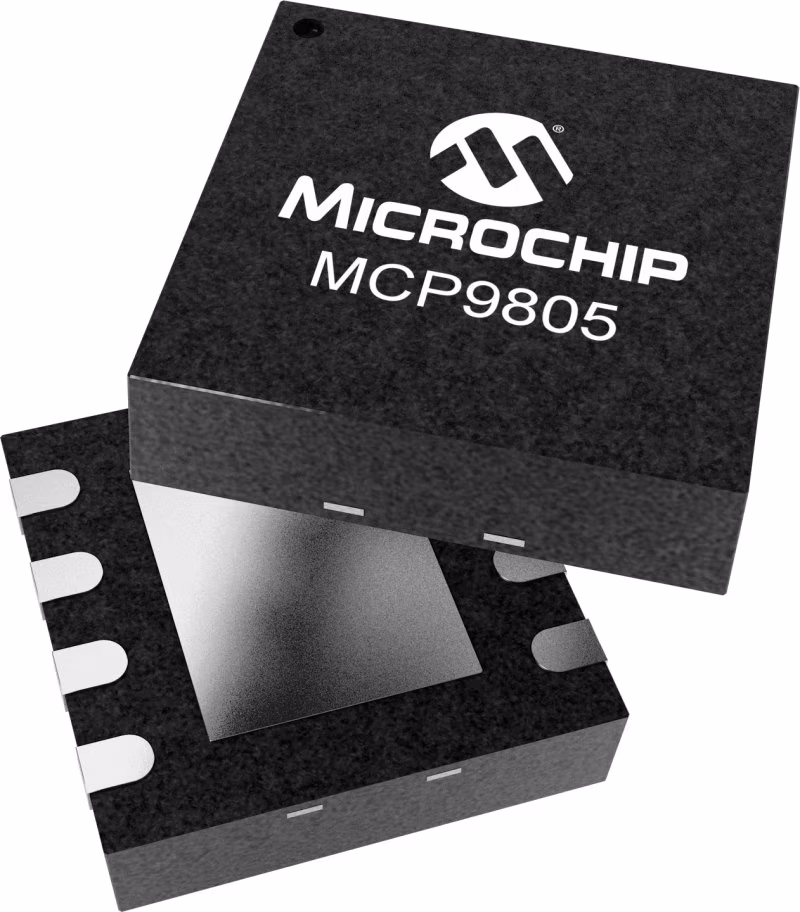

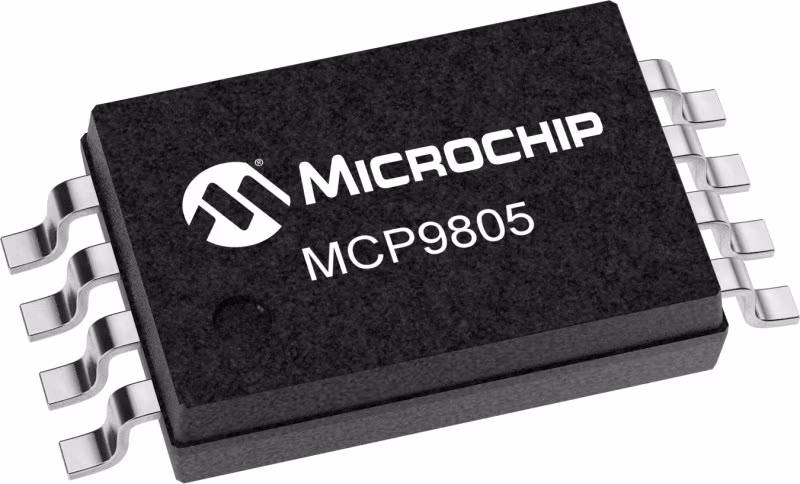

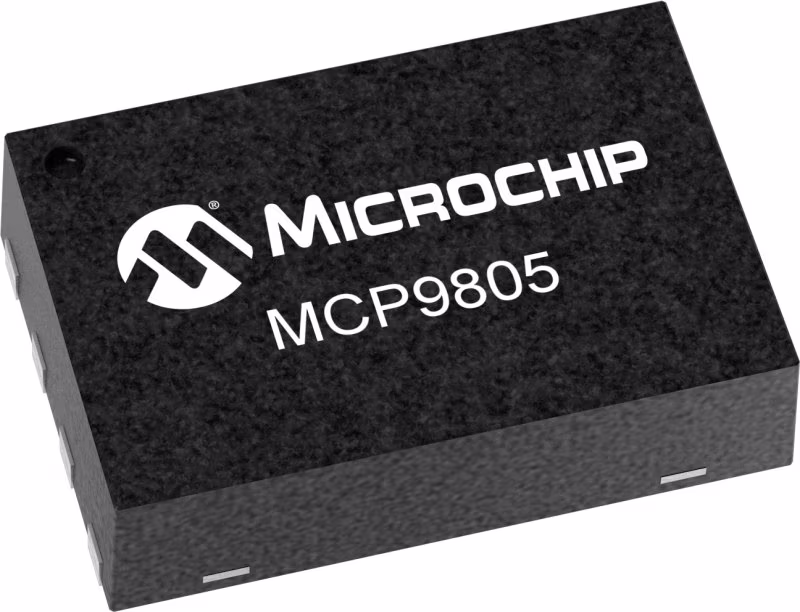

• 8-pin TSSOP and 2mm x 3mm 8-pin DFN Packages
