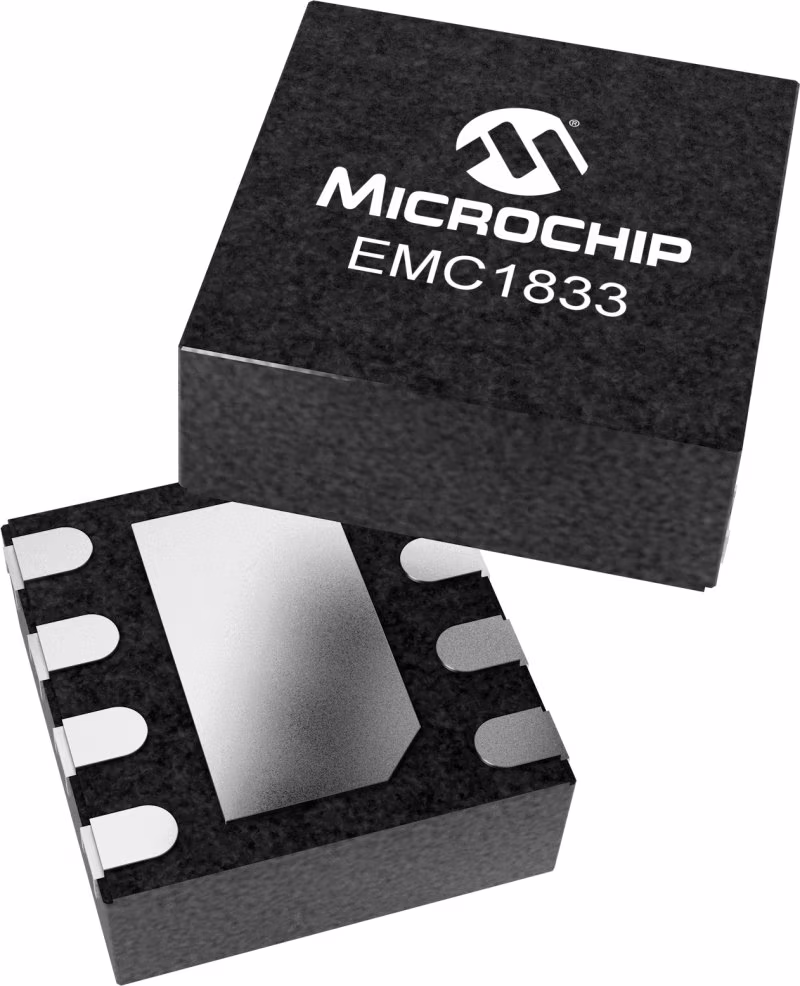

Microchip微芯 EMC1833 产品介绍
说明
EMC1833是一款1.8V、3通道、高精度、2线（I2.C兼容）温度传感器。变化率、电阻误差校正（REC）、贝塔补偿（支持需要BJT/晶体管型号的CPU二极管）和理想配置等高级功能相结合，为复杂的环境监测应用提供了强大的解决方案。
EMC1833监控器是第一个引入变化率功能的设备系列。除了温度本身，这些数据还有助于抢先系统f。这种类型的数据可以帮助客户更好地调节他们的应用程序控制温度。
电阻误差校正自动消除由串联电阻引起的温度误差，从而使热敏二极管的布线更加灵活。贝塔补偿消除了由当今精细几何处理器中常见的低可变贝塔晶体管引起的温度误差。这使得用户无需为每个温度监测应用程序提供独特的传感器配置。这些先进的功能加上±1°的测量精度，为关键温度监测应用提供了一种低成本、高度灵活和准确的解决方案。
特性
1.8V and 3.3V Logic Levels, Compatible with EIA/JEDEC8-7 StandardRate of Temperature Change Calculation with Preemptive Alert Limits (Patent-Pending)
dT/dt Measurement
Programmable Duration and Gain
Limits on Rates with AlertdT/dt MeasurementProgrammable Duration and GainLimits on Rates with Alert2 External Temperature Monitors
±1°C Max Accuracy, 25°C to 125°C Ta, 0°C to 127°C Td
±2°C Max Accuracy, -40°C to 125°C Ta, -40°C to 127°C Td
0.125 Resolution
Resistance Error Correction for 100Ω
Automatic Beta Compensation with BJT/Transistor Model Support
Ideality Factor Configuration
Supports up to 2.2nF Diode Filter Capacitor
Anti-parallel Diodes for Extra Diode Support±1°C Max Accuracy, 25°C to 125°C Ta, 0°C to 127°C Td±2°C Max Accuracy, -40°C to 125°C Ta, -40°C to 127°C Td0.125 ResolutionResistance Error Correction for 100ΩAutomatic Beta Compensation with BJT/Transistor Model SupportIdeality Factor ConfigurationSupports up to 2.2nF Diode Filter CapacitorAnti-parallel Diodes for Extra Diode SupportInternal Temperature
±°1C Max Accuracy, -40°C to 125°C
0.125 Resolution±°1C Max Accuracy, -40°C to 125°C0.125 Resolution2-Wire / I2C compatible interface
Up to 400kHz Clock Rate
Support Both Byte and Block Operation
Contiguous Block for Read of All Temperatures
Programmable or Fixed Address OptionsUp to 400kHz Clock RateSupport Both Byte and Block OperationContiguous Block for Read of All TemperaturesProgrammable or Fixed Address OptionsFrequency Hopping Technology Eliminates Noise Sensitivity (Patented)ALERT (Bar) pin, Maskable
SMBUs / I2C Compatible Interrupt
Configurable as ComparatorSMBUs / I2C Compatible InterruptConfigurable as ComparatorTHERM pin, Non-Maskable (Bar),
Acts as Interrupt or ComparatorActs as Interrupt or ComparatorProgrammable temperature limits for ALERT# and THERM#Register Compatible with EMC141X, EMC142X, and EMC118XOperating Voltage:1.62V to 2.75VTemperature Range: -40°C to +125°CAvailable in 8-Lead 2.0x2.0 mm WDFNTemperature Sensitive StoragePortable ElectronicsIOT for Low System VoltageHandheld GamingIndustrialComputingEmbedded applications参数
类型 | 描述 |
NumOfChannelsMonitored | 3 |
Max. Accuracy @ 25° ; (° ;) | 1 |
Typical Accuracy (° ;) | 0.25 |
Features | Rate of Change, REC, beta compensation, anti-parallel diodes, ideality corection |
InterfaceType | I2C, SMBus |
Resolution (bits) | 11 |
