说明

MCP1662设备是一款紧凑、节省空间、固定频率、非同步升压转换器，经过优化，可通过两电池和三电池碱性电池、镍氢/镍镉电池或单电池锂离子或锂聚合物电池的恒定电流驱动LED串。
该设备集成了一个36V、800 m低侧开关，由1.3A逐周期电感器峰值电流限制操作保护。低电压技术允许MCP1662在没有高浪涌电流或输出过冲的情况下启动。所有补偿和保护电路都是集成的，以最大限度地减少外部组件的数量。

特性

• Up to 92% Efficiency
• High Output Voltage Range: up to 32V
• ILEDup to 200 mA @ 5.0V VIN, 4 White LEDs
• ILED up to 125 mA @ 3.3V VIN, 4 White LEDs
• ILED up to 100 mA @ 4.2V VIN, 8 White LEDs
• Input Voltage Range: 2.4V to 5.5V
• UVLO@VIN Rising: 2.3V, typical
• UVLO@VIN Falling: 1.85, typical
• No Load Input Current: 250 µA, typical
• Sleep mode with 200 nA Typical Quiescent Current
• PWM Operation with Skip mode: 500 kHz
• Feedback Voltage Reference: VFB= 300 mV
• Cycle-by-Cycle Current Limiting
• Internal Compensation
• Inrush Current Limiting and Internal Soft-Start
• Feedback Pin Shorted to GND (Prevent Excessive Current into LEDs)
• Disconnected LED String (Prevent Overvoltage to the Converter’s Output and SW Pin)
• Overtemperature Protection

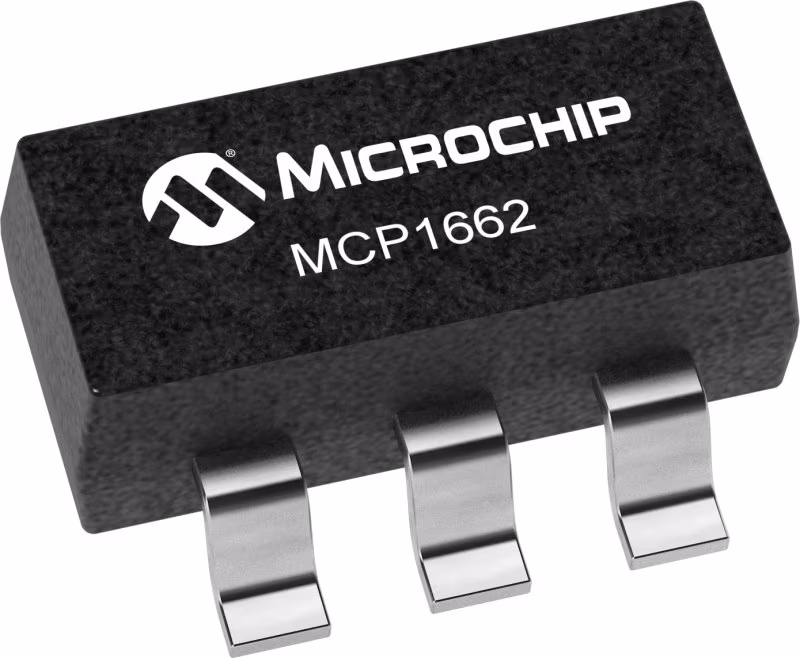

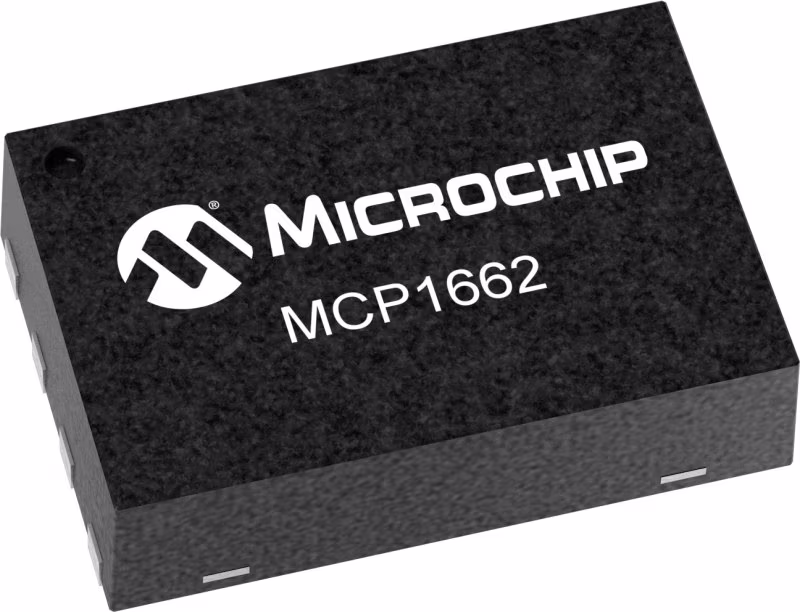

• Available Packages: 5-Lead SOT-23 or2x3 8-Lead TDFN

参数
