特性
- 4-Switch Single Inductor Architecture that Allows VIN Above, Below, or Equal to VOUT
- Proprietary Buck-Boost Peak Current Mode
- Low Ripple Burst Mode: 30μA IQ
- Forced Continuous Mode or Pulse-Skipping Operation
- Split Gate Driver Outputs
- Selectable Dead Time Settings
- Leaderless Current Sharing
- Adjustable and Phase-lockable: 100kHz to 650kHz
- Spread Spectrum Frequency Modulation
- ±2% Output Voltage Accuracy: 1V ≤ VOUT ≤ 60V
- ±5% Input or Output Average Current Accuracy
- Integrated Bootstrap Diodes
- VOUT Disconnected from VIN During Shutdown

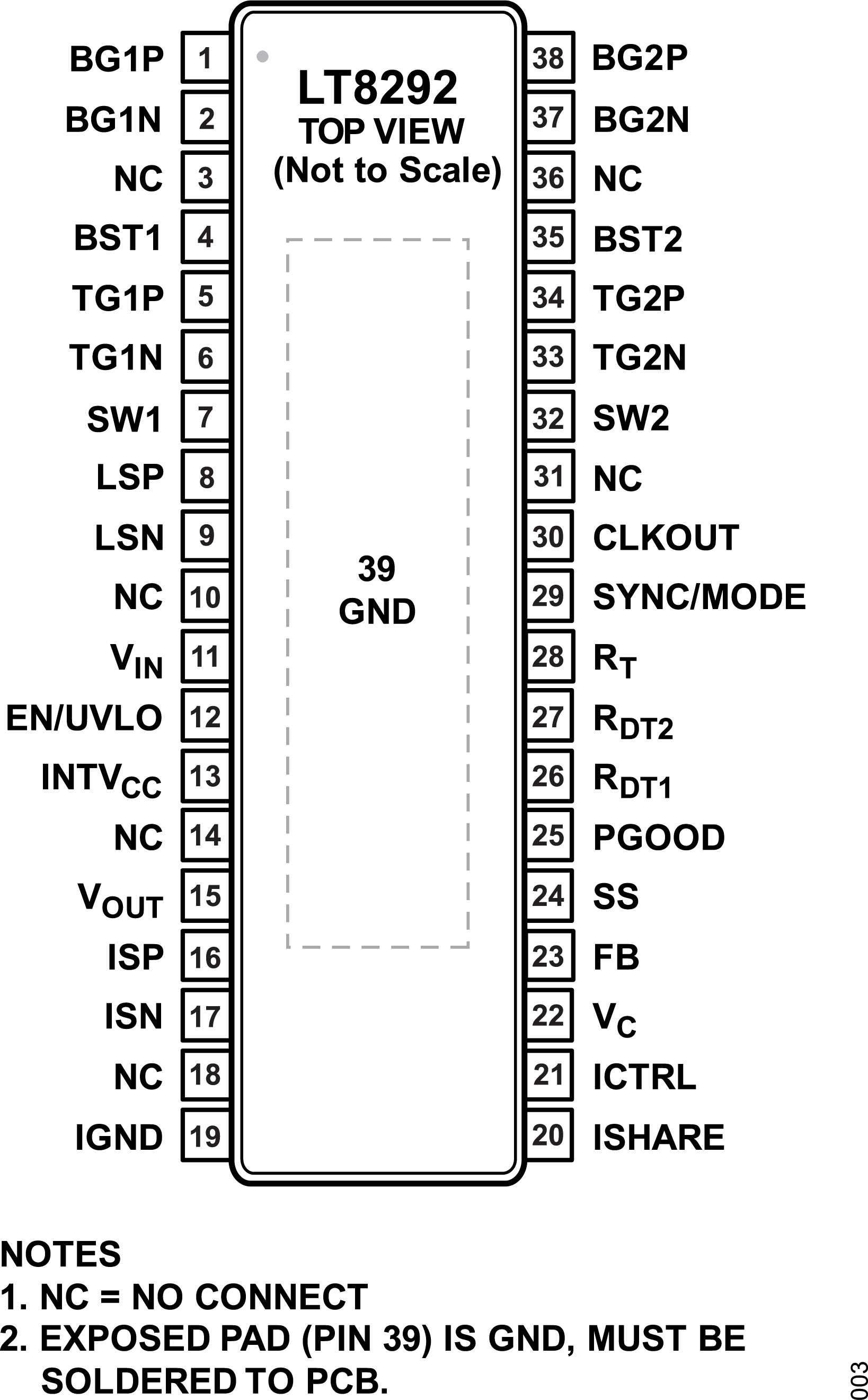

- 38-Lead Thin Shrink Small Outline Package (TSSOP) with Exposed Pad
- Automotive Qualified
产品详情和应用
LT8292 is a synchronous 4-switch buck-boost controller that regulates output voltage and output or input current from an input voltage above, below, or equal to the output voltage. The proprietary buck-boost peak current mode architecture allows adjustable and phase-lockable 100kHz to 650kHz fixed frequency operation, or internal spread spectrum operation for low electromagnetic interference (EMI). When the output is regulated above 5V, the LT8292 can operate from an input supply as low as 3V after start-up.
The low quiescent current at no-load extends operating run time in battery-powered systems. At light load, either forced continuous, pulse-skipping, or low-ripple Burst Mode can be selected.
The LT8292 features split pull-up/pull-down gate drivers and four selectable dead time settings with shootthrough protection, which allows both optimized efficiency and EMI. Fault protection is also provided to detect output short-circuit conditions, during which the LT8292 runs in low-duty cycle auto-retry mode.
APPLICATIONS
- Automotive, Industrial, Telecom Systems
- General Purpose Buck-Boost Power Supplies
- High-Power Battery-Powered Systems
