ADI亚德诺 MAX20806 产品介绍

2026-03-09 0次

特性

High Power Density with Low Component Count
- Single-Supply Operation with Integrated LDO for Bias Generation

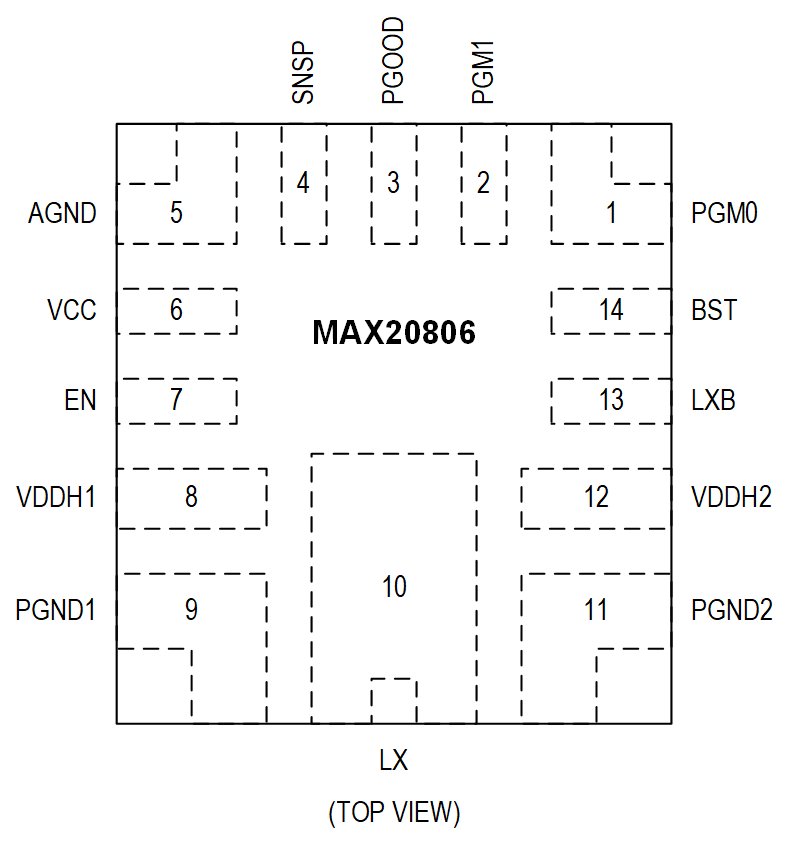

- Compact 3.0mm x 2.5mm, 14-Pin, FC2QFN Package
- Internal Compensation
Wide Operating Range
- 2.7V to 16V Input Voltage Range
- 0.5V to 5.8V Output Voltage Range
- 500kHz to 3MHz Configurable Switching Frequency

-40°C to +150°C Junction Temperature Range
Two Pin-Strap Programming Pins to Select Different Configurations

Optimized Performance and Efficiency
- 91.9% Peak Efficiency with V_DDH = 12V,V_OUT = 1.8V, and f_SW = 1MHz
- Selectable AMS to Improve Load Transient
- Selectable DCM to Improve Light Load Efficiency

产品详情和应用

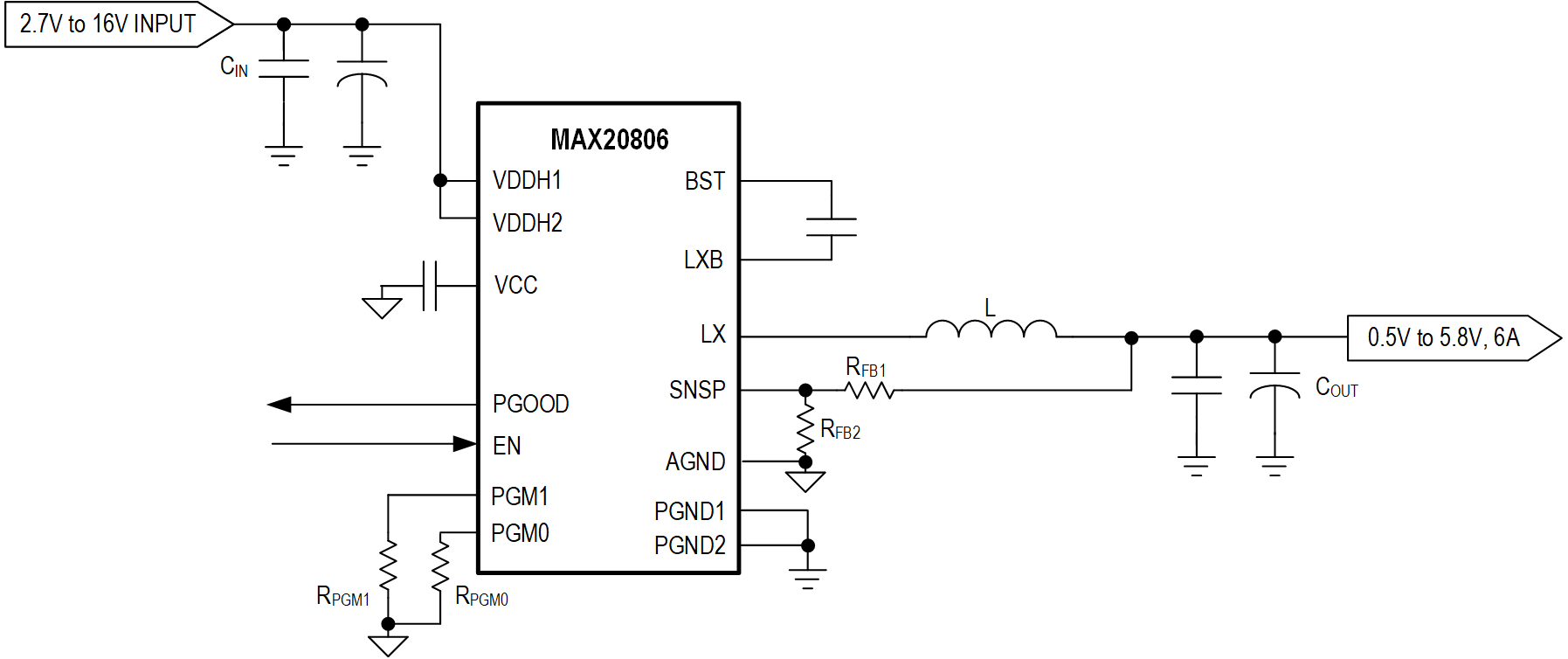

The MAX20806 is a fully integrated, highly efficient, step-down DC-DC switching regulator. It is able to operate from 2.7V to 16V input supplies, and the output can be regulated from 0.5V to 5.8V, delivering up to 6A of load current.

The switching frequency of this device can be configured from 500kHz to 3.0MHz and provides the capability of optimizing the design in terms of solution size and performance.

The MAX20806 utilizes fixed-frequency, current-mode control with internal compensation. The MAX20806 features a selectable advanced modulation scheme (AMS) to provide improved dynamic load transient performance. The device also features selectable discontinuous current mode (DCM) operation to improve light load efficiency. Operation settings and configurable features can be selected by connecting pin-strap resistors from the PGM_ pins to ground.

The MAX20806 has an internal 1.8V LDO output to power the gate drives and internal circuitry (V_CC).

The MAX20806 integrates multiple protections including positive and negative overcurrent protection, output overvoltage protection, and overtemperature protection to ensure a robust design.

The MAX20806 is available in a compact 3.0mm x 2.5mm FC2QFN package that supports -40°C to +150°C junction temperature operation.

APPLICATIONS

Communications Equipment
Networking Equipment
Servers and Storage Equipment
Point-of-Load Voltage Regulators
