推荐用于新设计
特性
- Silent Switcher® Architecture, Ultralow EMI Emissions
- High Efficiency at High Frequency

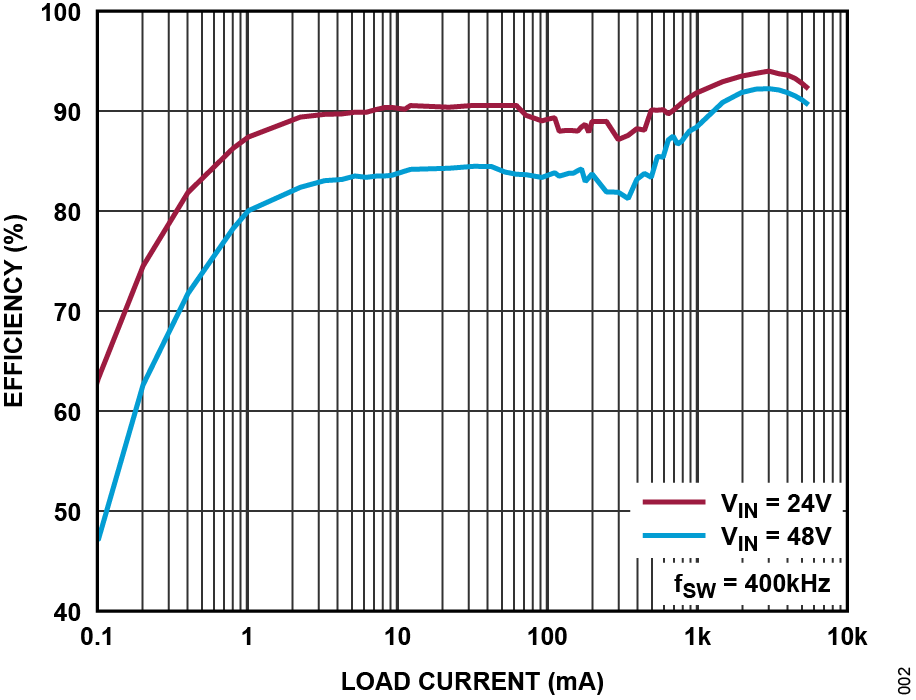

- Up to 94.5% at 400kHz, 24VIN to 5VOUT
- Up to 93% at 1MHz, 24VIN to 5VOUT
- Pin Selectable Adjustable, Fixed 3.3V and 5V Output
- Ultralow Quiescent Current Burst Mode Operation
- 9μA IQ Regulating 24VIN to 5VOUT
- On-the-Fly Mode Change Among Burst, Pulse Skip and Forced Continuous Mode
- Burst and Pulse Skipping Modes to Enable Enhanced Light-Load Efficiency
- Built-in Output-Voltage Monitoring and Die Temperature Monitoring with PG/TJ
- 99% Duty-Cycle Operation
- 200kHz to 3MHz Adjustable Switching Frequency with External Clock Synchronization
- 70V Transient-Input Tolerant
- Internal Compensation
- Programmable Soft-Start and Tracking
- Built-in Hiccup Mode Overload Protection;
- Safely Tolerates Inductor Saturation in Overload

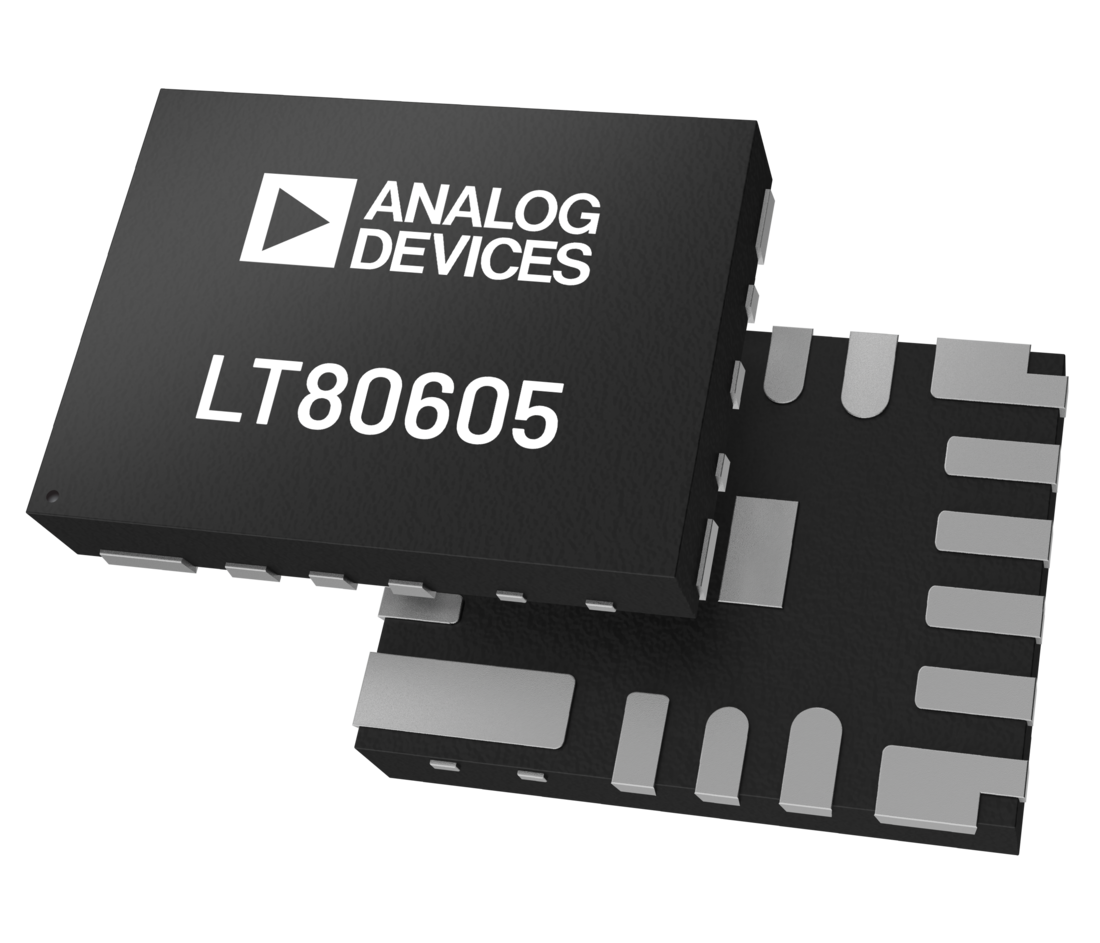

- Small 17-Lead 3mm × 4mm QFN
产品详情和应用

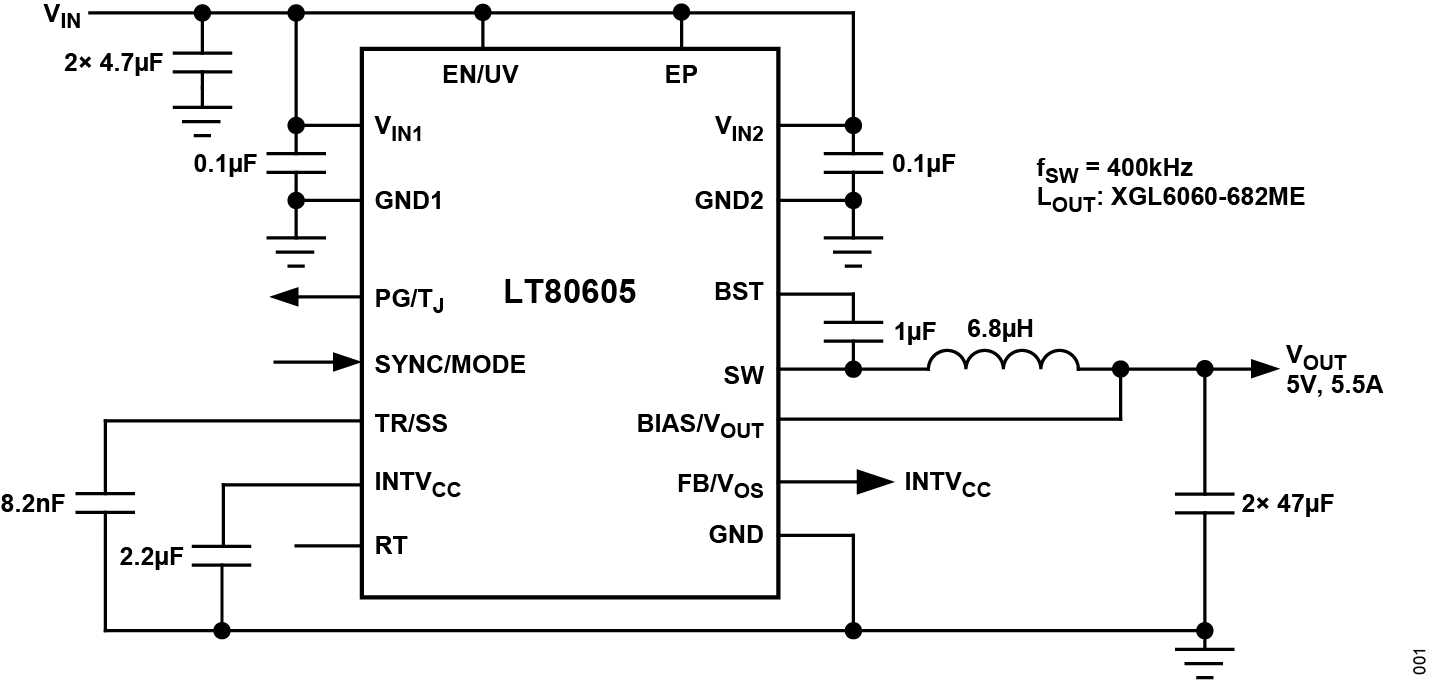

The LT80605 step-down regulator features the Silent Switcher® architecture to minimize EMI emissions while delivering high efficiency at frequencies up to 3MHz. Assembled in a 3mm x 4mm QFN, the monolithic construction with integrated power switches and inclusion of all necessary circuitry yields a solution with a minimal PCB footprint. An ultralow 9μA quiescent current with the output in full regulation enables applications requiring highest efficiency at light loads. The device features a SYNC/MODE pin that selects among Burst Mode, pulse skipping, or forced continuous mode (FCM), and also allows synchronization to an external clock. Soft-start and tracking functionality are accessed through the TR/SS pin. An accurate enable threshold can be set using the EN/UV pin and a resistor at the RT pin programs switch frequency. In addition, the device features a PG/TJ pin that can be used either to monitor the status of output voltage or die temperature. The die temperature monitor allows to directly measure the silicon die temperature, enabling a robust, reliable power supply design.
APPLICATIONS
- General Purpose Step-Down
- Automotive and Industrial Supplies
