推荐用于新设计
特性
- 4-Switch Single Inductor Architecture Allows VIN Above, Below or Equal to VOUT
- Silent Switcher® 2 Architecture for Low EMI

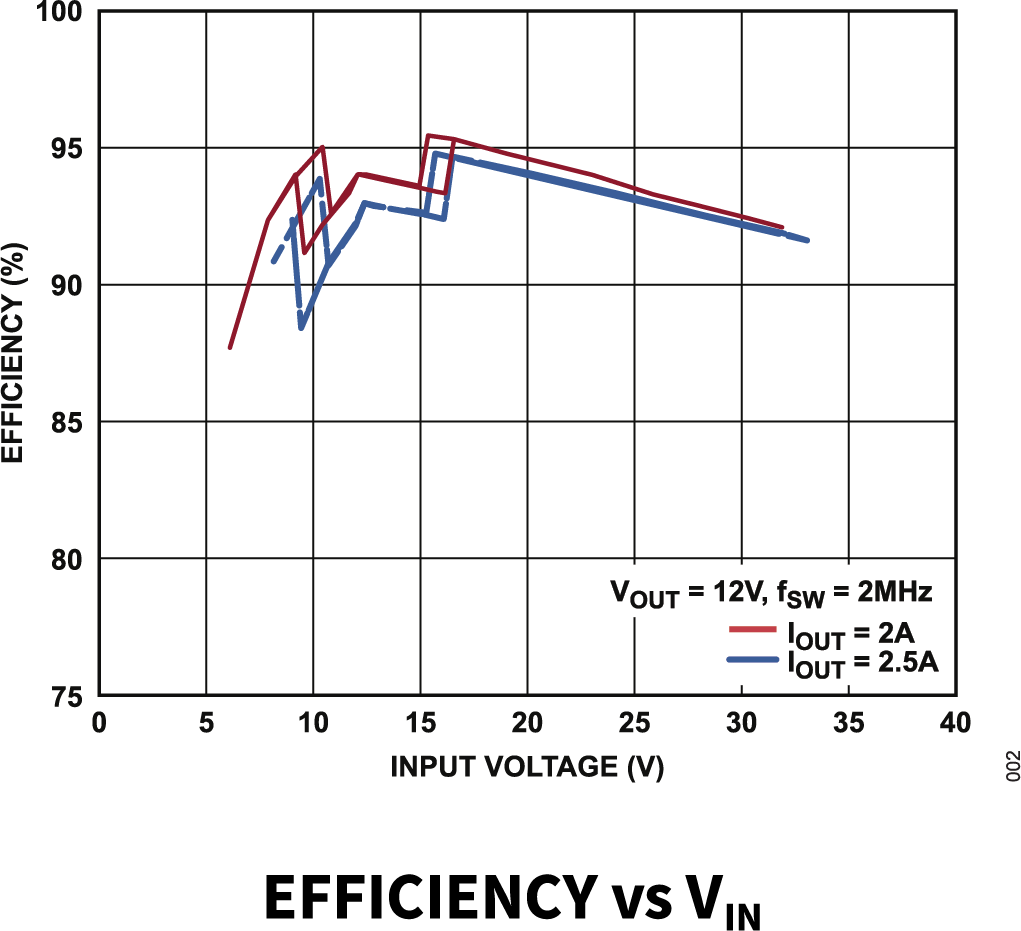

- Up to 95% Efficiency at 2MHz
- Proprietary Peak Current Mode
- 3V to 40V Input Voltage Range
- 1V to 18V Output Voltage Range;
- ±1.5% Output Voltage Regulation
- Output/Input Current Regulation and Monitor
- Constant-voltage/Constant-current Regulation
- High-Side PMOS Load Switch Driver
- No Top MOSFET Refresh Noise in Buck or Boost
- 200kHz to 2MHz Fixed Switching Frequency with External Frequency Synchronization and SSFM
- VOUT Disconnected from VIN During Shutdown

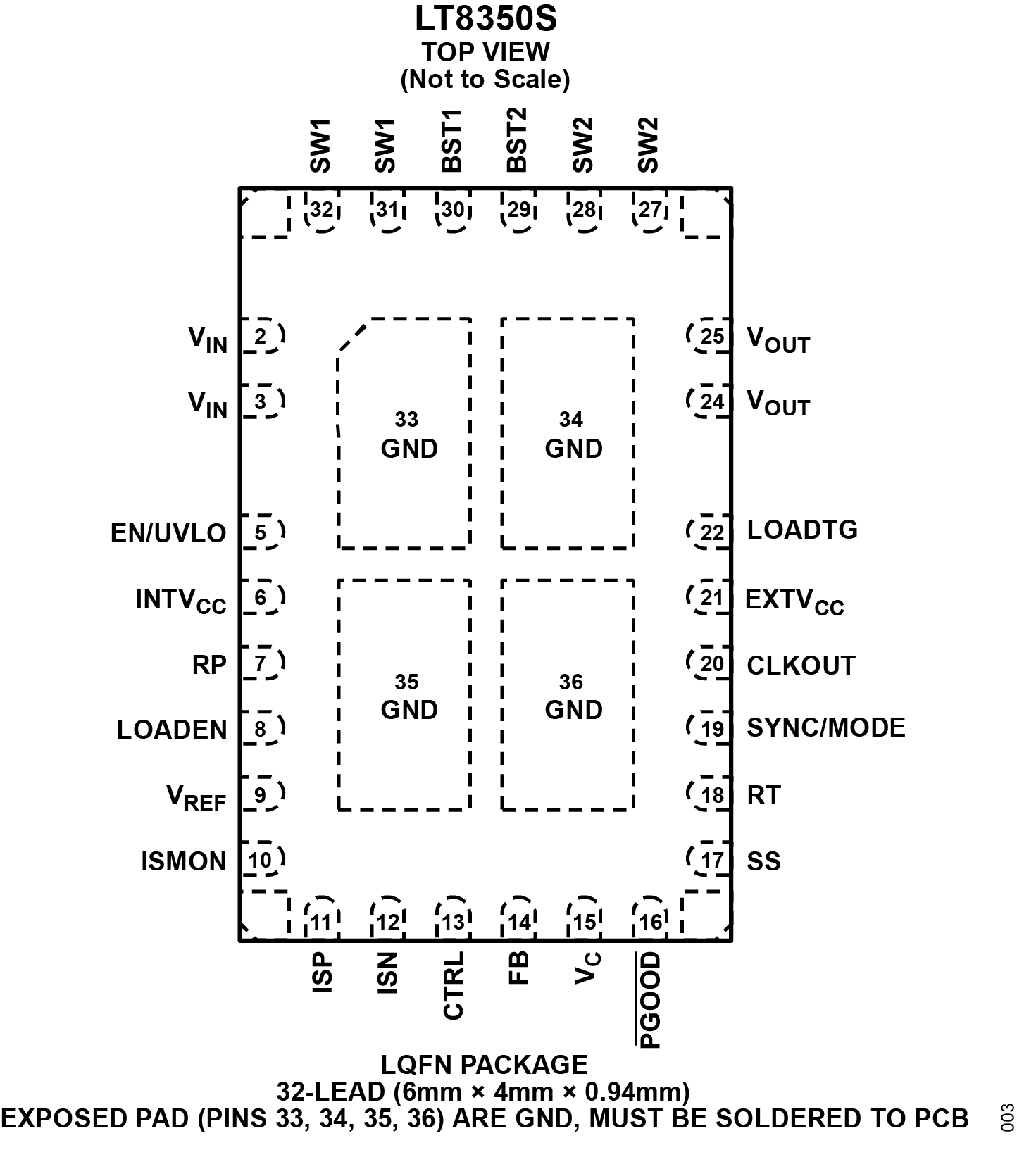

- Small 4mm × 6mm 32-Pin LQFN Package
- AEC-Q100 Qualified
产品详情和应用
The LT8350S is a monolithic 4-switch synchronous buck-boost converter with second-generation Silent Switcher architecture to minimize electromagnetic interference (EMI) emissions while delivering high efficiency at high switching frequency. The switcher can regulate the output voltage, input or output current from input voltages above, below, or equal to the output voltage. The proprietary peak current mode control scheme allows for the synchronization and adjustment of 200kHz to 2MHz fixed frequency operation or spread spectrum frequency modulation (SSFM) operation. With a 3V to 40V input voltage range, 1V to 18V output voltage capability, and seamless low noise transitions between operation regions, the LT8350S is ideal for voltage regulator, battery, and super-capacitor charger applications in automotive, industrial, telecom, and battery-powered systems.
The LT8350S provide an input or output current monitor and power good flag. Robust fault protection is provided to detect output short-circuit conditions, during which the LT8350S retries, latches off, or keeps running.
Applications
- Automotive, Industrial, Telecom Systems
- Voltage Regulator with Accurate Current Limit
- High-Frequency Battery-Powered System
- USB Power Delivery (USB-PD) Source
