推荐用于新设计
特性
- 2-phase stepper motors
- Drive Capability up to 2 x 1.1A coil current
- Motion Controller with SixPoint™ ramp
- Voltage Range 4.75 to 16V DC
- SPI Interface
- 2x Ref.-Switch input per axis
- Highest Resolution 256 microsteps per full step
- Full Protection & Diagnostics
- StallGuard2™ high precision sensorless motor load detection
- CoolStep™ load dependent current saves up to 75% energy
- SpreadCycle™ high-precision chopper for best current sine wave form and zero crossing with additional ChopSync2™
- Compact Size 7x7mm QFN48 package
产品详情和应用

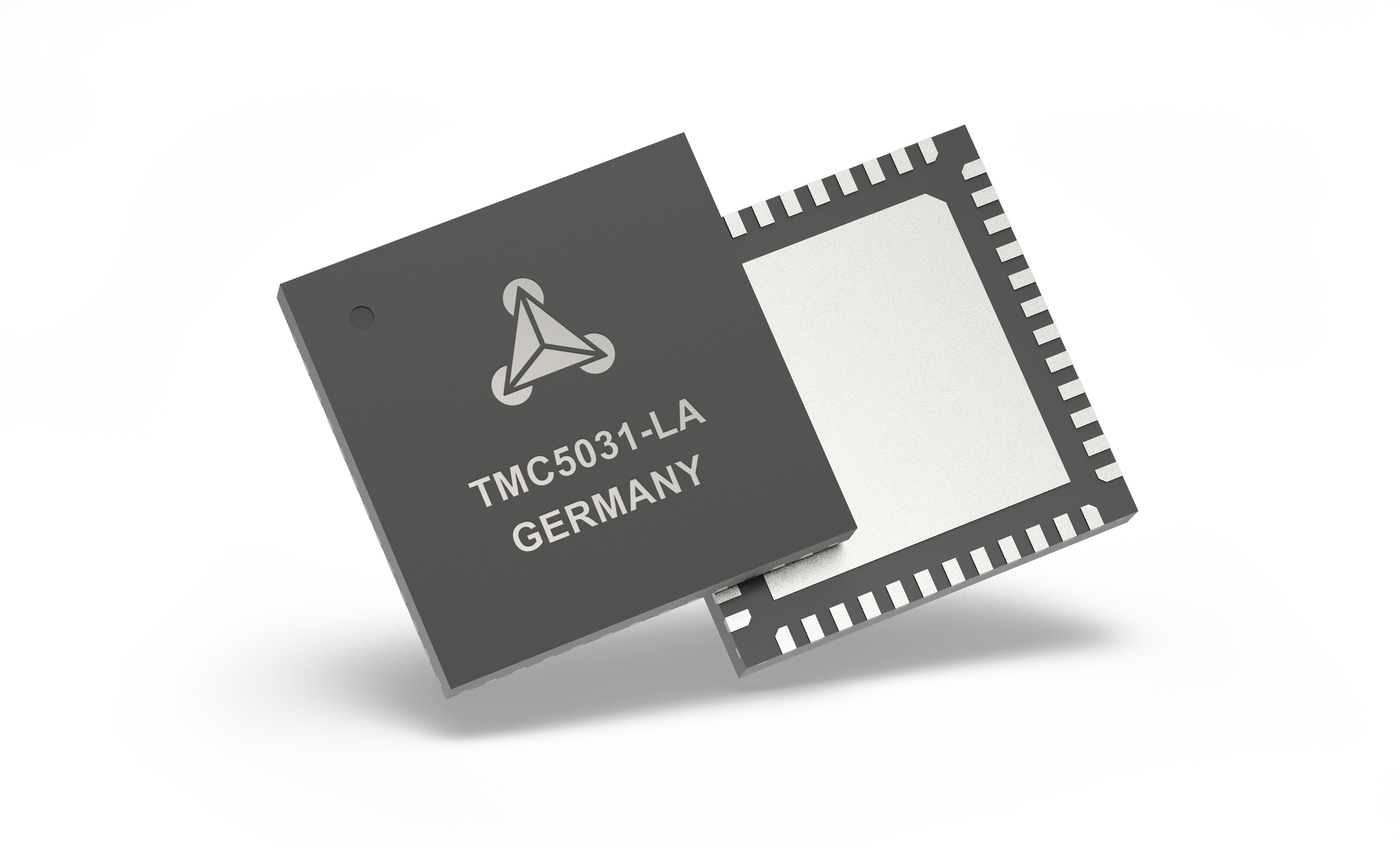

The TMC5031 cDriver™ is an integrated motor driver and motion controller solution for CCTV cameras, pumps and other automated equipment applications. The device has two integrated SixPoint™ ramp controllers, microstepping indexers and the sensorless stall detection technology StallGuard2™ and is intended to drive two bipolar stepper motor. The output driver blocks consists of low RDSon N-Channel power MOSFETs configured as full H-bridges to drive the motor windings. The TMC5031 is capable of driving up to 1.5A of current from each output (with proper heatsinking). TMC5031 is designed for a supply voltage of 5 to 16V. The device provides a SPI interface for configuration and diagnostics and a step and direction interface.
APPLICATIONS:
- CCTV, Security
- Antenna Positioning
- Heliostat Controller
- Battery powered applications
- Office Automation
- ATM, Cash recycler, POS
- Lab Automation
- Liquid Handling
- Medical
- Printer and Scanner
- Pumps and Valves
