ADI亚德诺 QBL4208 产品介绍
2026-03-09
0次
特性
- Hall Effect Angle: 120° electric angle
- Shaft run out: 0,025 mm
- Insulation Class: B
- Radial Play: 0,02 mm 450G load
- Max Radial Force: 28N (10mm from flange)
- Max Axial Force: 10
- Dielectric Strength: 500 VDC For One Minute
- Insulation Resistance: 100M Ohm min. 500VDC
- Recommended Ambient Temp.: -20 to +40°C
- Bearing: Brushless motors fitted with ball bearings
- Coil windings in delta topology
- Variants with encoder: 1024 lines/ 4096 counts
产品详情和应用

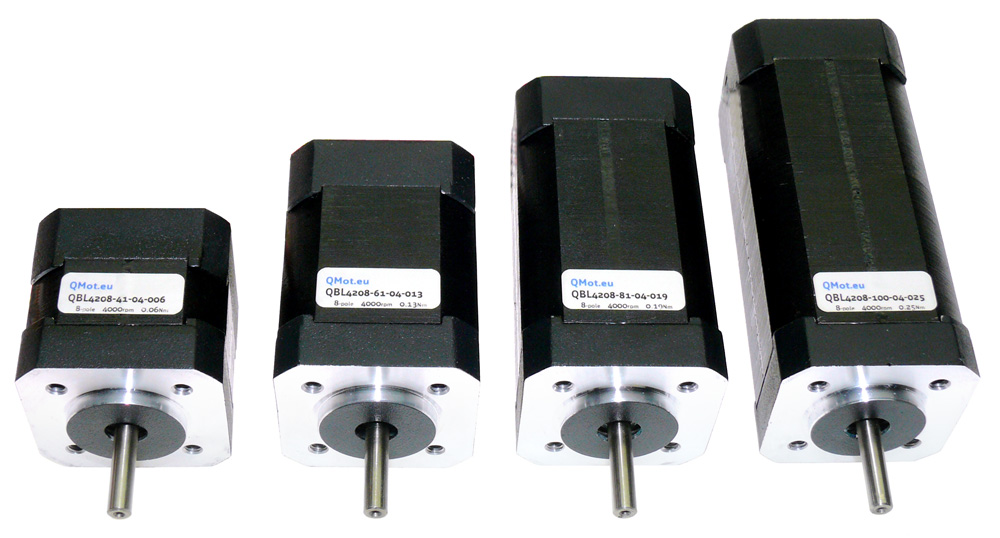

Qmot 42mm 3-phase BDLC motors are quality motors with digital hall output for universal use. They feature a long life due to ball bearings and no wearing out parts. These BLDC motors give a good fit to the ADI Trinamic family of medium and high current BLDC motor modules.
Variants include mall size optical incremental encoder kit. It comes with a resolution up to 1024 lines (4096 counts). ADI Trinamic’s B LDC motors are quality motors for universal use. They feature a long life due to ball bearings and no wearing out parts.
