量产
特性
- Stepper Motor NEMA17 / 42mm
- 0.4Nm or 0.8Nm holding torque
- Motor optimized for speed (>5k rpm possible @24V supply)
- With controller/driver
- Linear and sixPoint™ ramps
- +10 to 30V DC supply voltage
- Up to 3A RMS motor current
- RS485, CAN & USB interface
- Integrated sensOstep™ encoder and support for external encoder
- S/D interface
- Multi-purpose inputs and outputs
产品详情和应用

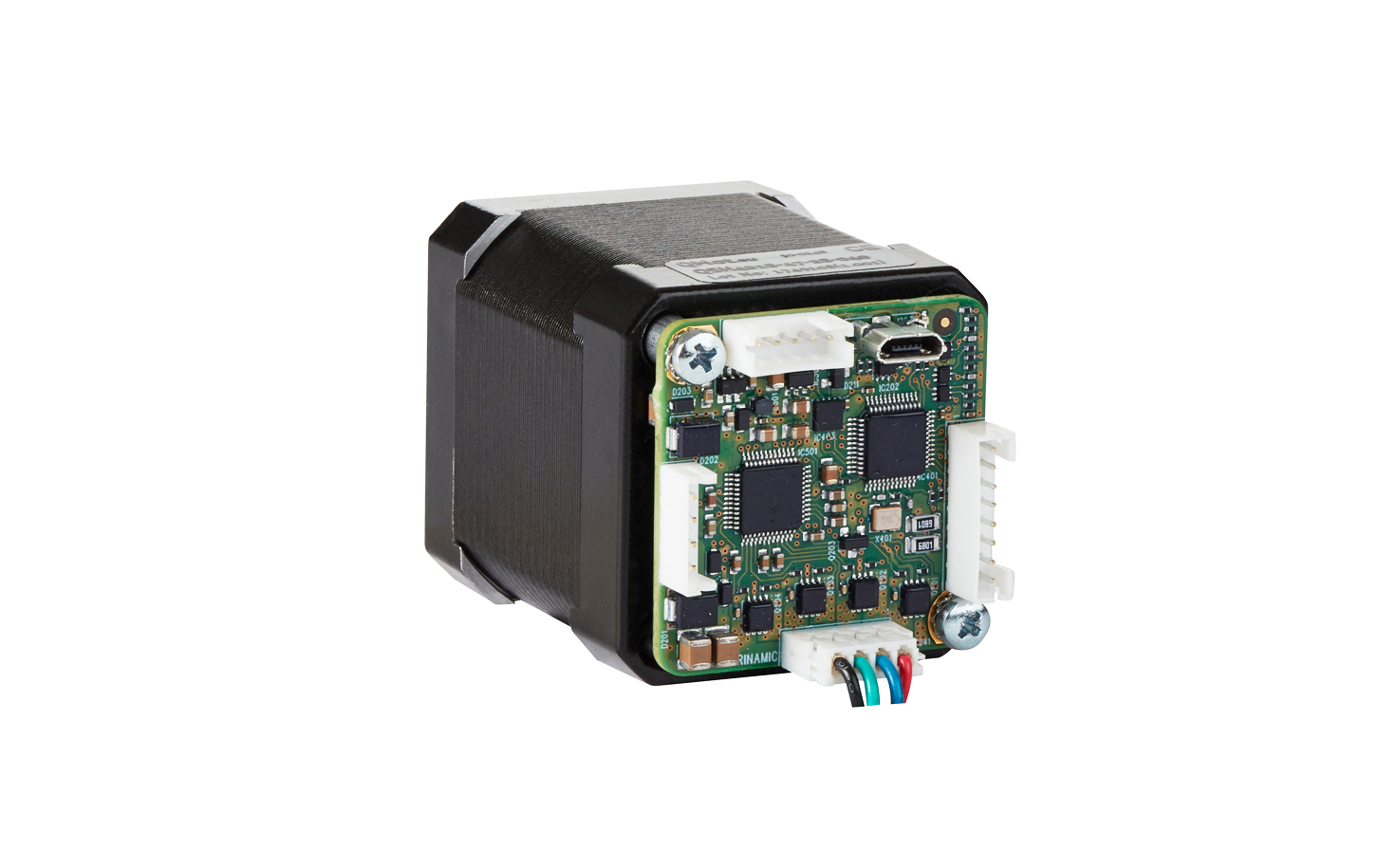

The PD42-X-1241 family provides small and compact full mechatronic solutions including a NEMA17 / 42mm flange size stepper motor of different length and torque, the TMCM-1241 controller / driver electronics and ADI Trinamic SensOstep™ encoder for step-loss detection. The PANdrive smart motors include a stepper motor with high current coil windings (up-to 3A RMS) designed especially for higher speed operations (when comparing with the PD42-x-1240 line of PANdrives™).
All you need to get started is a power supply and ADI Trinamic's free and easy to use TMCL-IDE. This graphical user interface allows quick setup and supports the use of commands in direct mode, monitors real-time behavior visualized in graphs, and logs and stores data.
APPLICATIONS
- Laboratory Automation
- Manufacturing
- Semiconductor Handling
- Robotics
- Factory Automation
- Test & Measurement
- Life Science
- Biotechnology
- Liquid Handling
