量产
特性
- Stepper motor NEMA17 / 42mm
- +6 to +28V DC supply voltage
- Up to 1.2A RMS motor current
- IO-Link® interface
- Integrated motion controller
- PANdrive™ smart motor
- StealthChop™ silent PWM mode
- SpreadCycle™ current control
- StallGuard2™ load detection
- CoolStep™ automatic current scaling
- Integrated absolute position sensor
产品详情和应用

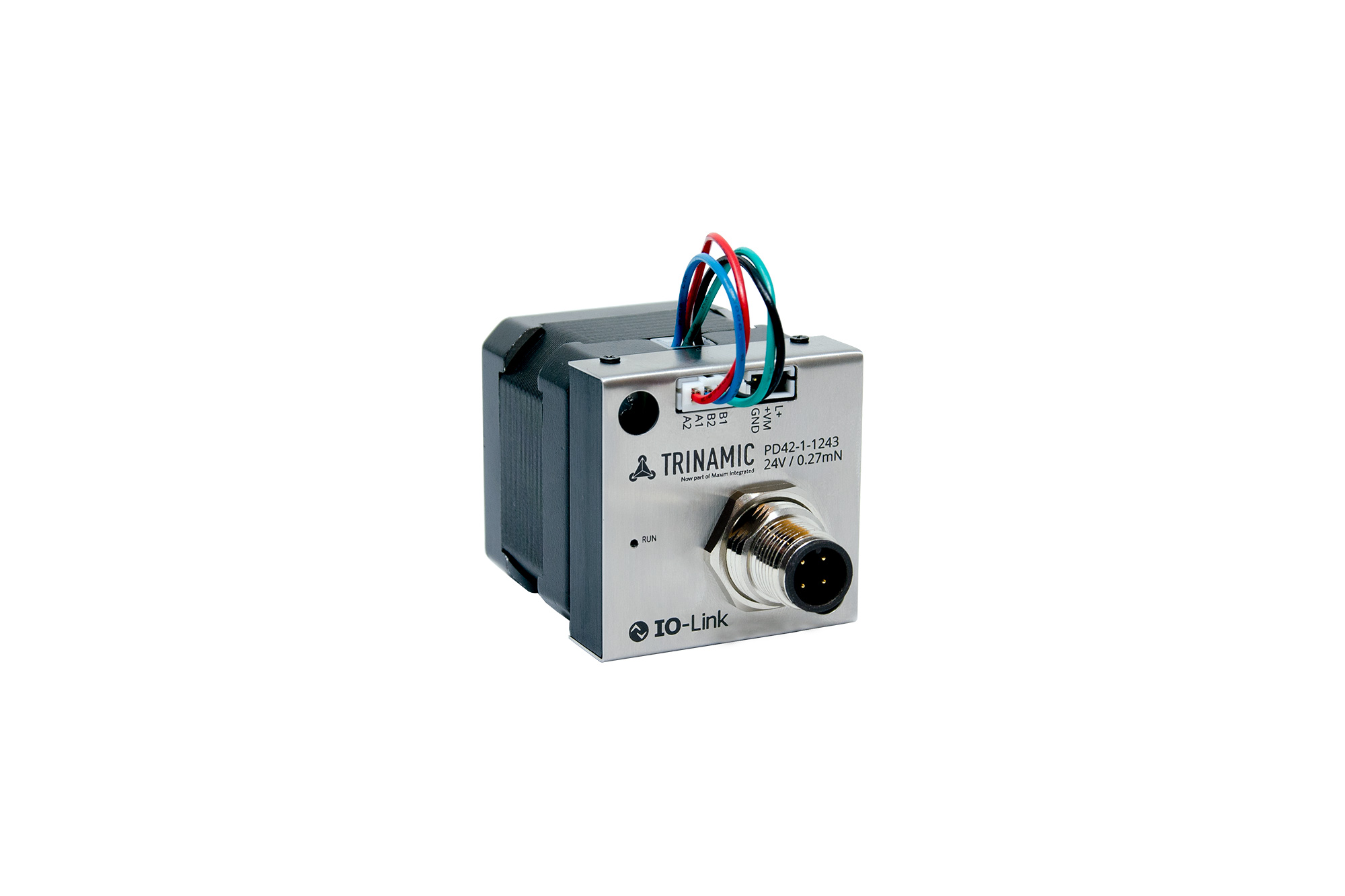

The PD42-1-1243 is a small easy-to-use mechatronic PANdrive™ IO-Link® actuator device. It combines a NEMA-17 stepper motor with controller and driver electronics. The IO-Link connection through standard 4-pin M12 connector offers full control over the NEMA-17 stepper motor as well as provide a industry-standard IO Link communication protocol enabling control, configuration, and status monitoring.
The new chipset solution of TMC2130-LA and MAX22513 builds upon the benefits of IO-Link’s two-way universal interface. The intelligent actuator, which combines industry-leading motion control technology into a plug-and-play solution, is 2.6x smaller and more than 50 percent lower power compared to the competitive solution. It brings intelligence to the factory floor by providing 50 percent more parameters to help improve predicting factory shutdown in advance and maximizes factory throughput.
Pair the intelligent actuator with the MAXREFDES165# four-channel IO-Link master reference design for a complete IO-Link solution.
