ADI亚德诺 PD-1140 产品介绍

2026-03-09 0次

特性

Applications

Compact and decentralized stepper motor solutions
Step loss detection for high reliability operation

Electrical data

Supply voltage: +24V DC nominal
Motor current: up to 2.8A peak / 2A RMS (programmable)

Integrated motion controller

Motion profile calculation in real-time (TMC429 motion controller)
On the fly alteration of motor parameters (e.g. position, velocity, acceleration)
High performance ARM Cortex-M3^™ microcontroller for overall system control and serial communication protocol handling

Integrated bipolar stepper motor driver

Up to 256 microsteps per full step
High-efficient operation, low power dissipation (MOSFETs with low R_DS(ON))
Dynamic current control
Integrated protection
StallGuard2^™ feature for stall detection
Automatic load dependent motor current adaptation for reduced power consumption and heat dissipation (CoolStep)^™

Integrated encoder

Integrated sensOstep^™ magnetic encoder (max. 1024 increments per rotation) e.g. for step-loss detection under all operating conditions and positioning

Integrated motor

Two phase bipolar stepper motor with 2A RMS nom. coil current
Holding torque: 0.22Nm, 0.36Nm, 0.44Nm or 0.7Nm

Interfaces

RS485 2-wire communication interface
CAN 2.0B communication interface
USB full speed (12Mbit/s) device interface
4 multi-purpose inputs:
- 3x general-purpose digital inputs (alternate functions: STOP_L/STO
  产品详情和应用

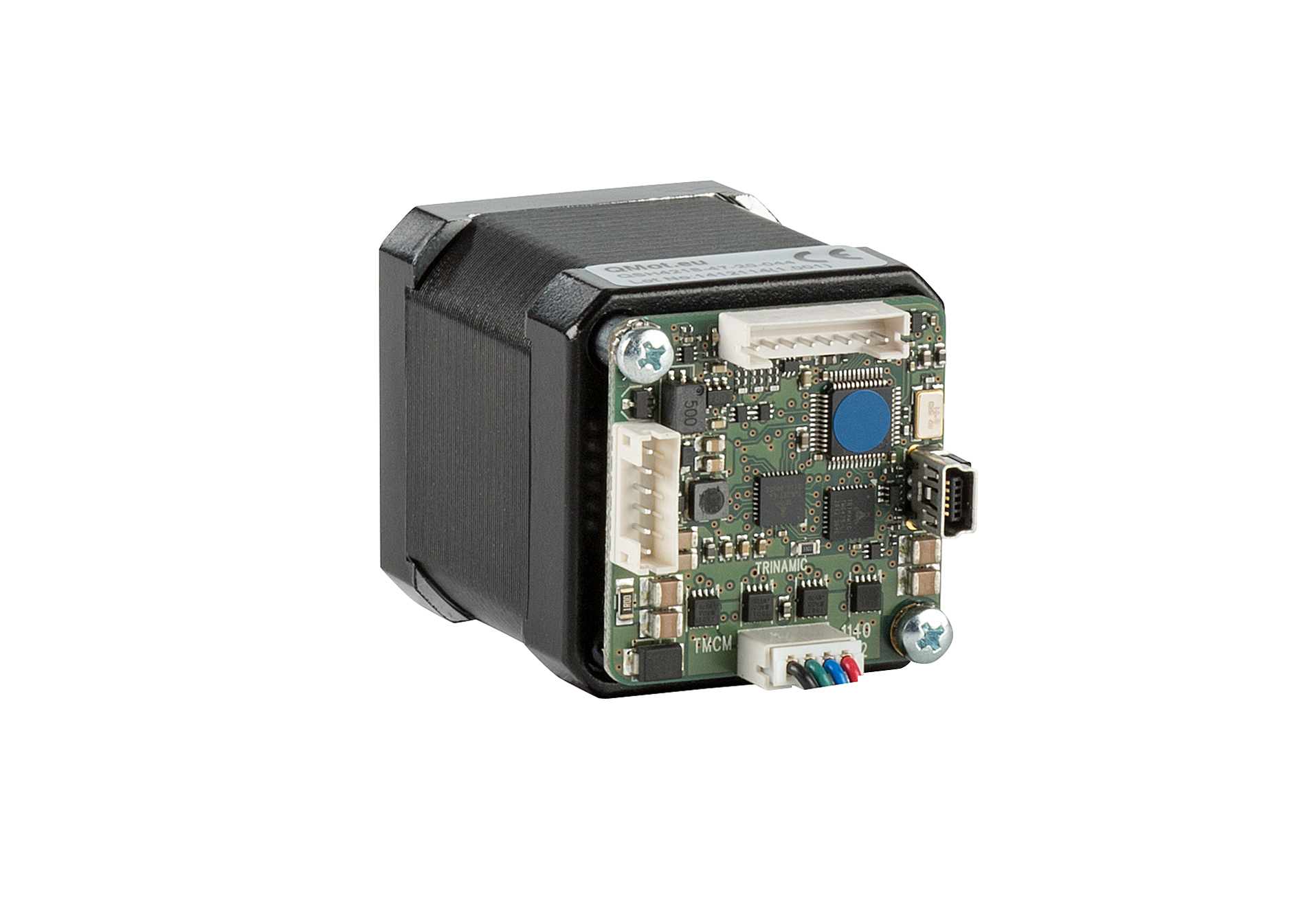

  The PANdrive PD-1140 family is a mechatronic solution including a 40mm flange stepper motor, a controller board and a SensOstep^™ encoder. It can be controlled via serial interface or operated in standalone mode. Power supply, external encoder, interface and I/Os can be connected with JST connectors.

  With the advanced StallGuard2^™ the motor load can be detected with high resolution. The outstanding CoolStep^™ technology for sensorless load dependent current control allows efficient motor operation.

  All you need to get started is a power supply and ADI Trinamic's free and easy to use TMCL-IDE. This graphical user interface allows quick setup and supports the use of commands in direct mode, monitors real-time behavior visualized in graphs, and logs and stores data.

  More about the TMCL-IDE
