ADI亚德诺 TMCM-1633 产品介绍
2026-03-09
0次
特性
- Single axis field oriented control for BLDC/PMSM motor
- Hall and ABN encoder support
- +14, 5 to 48V DC supply voltage
- Up to 10A RMS peak motor current
- RS232 & CAN interface
- CANopen CiA 402 drive profile
- Torque, Velocity, and Position control
产品详情和应用

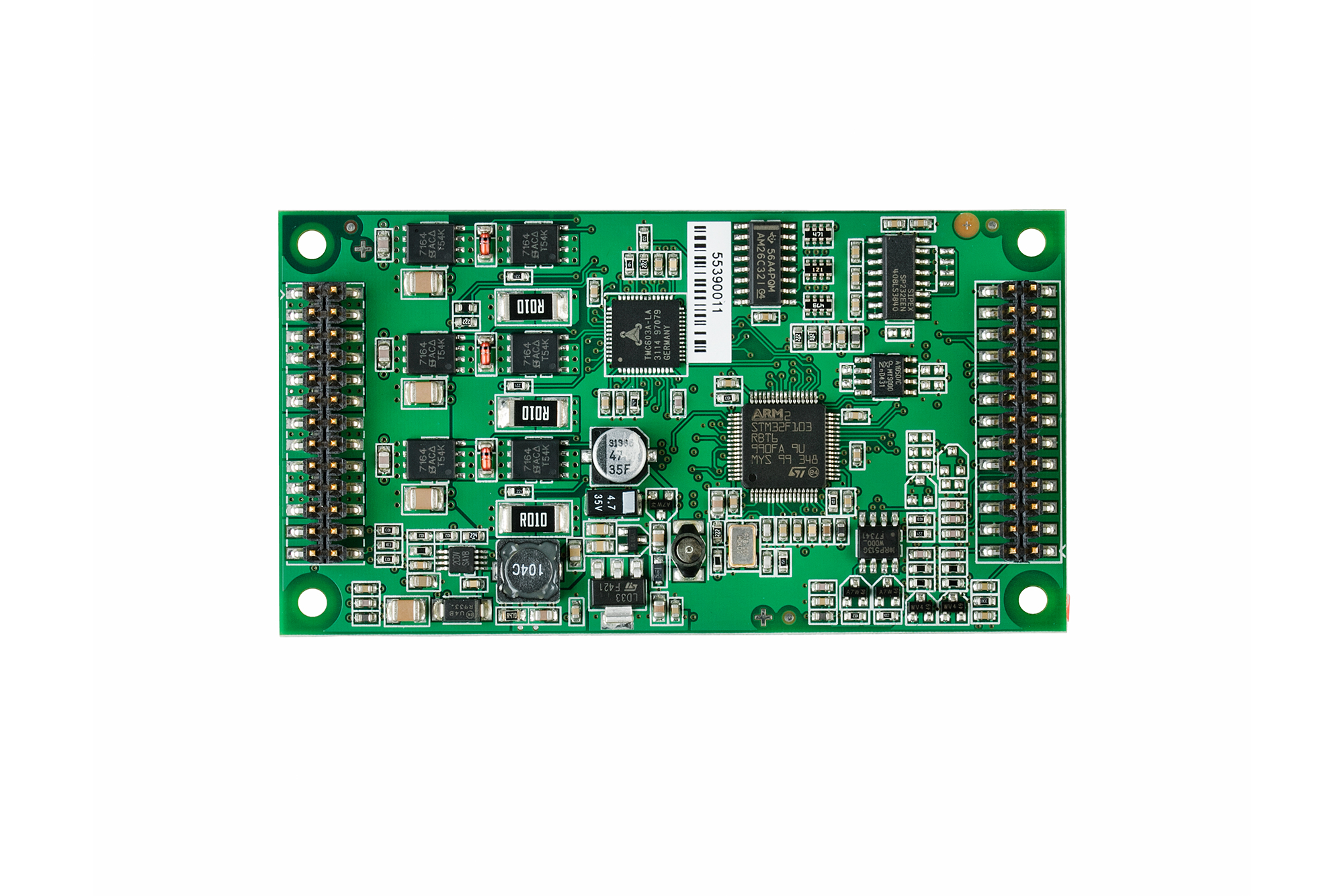

The TMCM-1633 is a single axis controller module for brushless DC (BLDC) and PMSM motors. It offers field-oriented control (FOC) with up to 10A RMS phase currents at +48V DC supply. Besides hall sensor and incremental a/b/n encoder interfaces for connection to the motor, digital inputs and outputs can be used. A CAN interface allows communication with a CANopen master.
The TMCM-1633 is compatible with ADI Trinamic's baseboard BB-163x.
All you need to get started is a power supply and ADI Trinamic's free and easy to use TMCL-IDE. This graphical user interface allows quick setup and supports the use of commands in direct mode, monitors real-time behavior visualized in graphs, and logs and stores data.
