ADI亚德诺 TMC6130 产品介绍
2026-03-09
0次
特性
- Level Shifting: µC PWM outputs / 6 or 3 ext. N-FET half-bridges
- 100% PWM Operation
- Low Offset, Low Drift, Fast Current Sense Amplifier with configurable input range
- Operating Range VM = [4.5, 28]V, 32V abs. max
- Fault Interrupt & Feedback to microcontroller
- Fastest settling time and minimum noise
- Diagnostics: overcurrent, overtemperature, undervoltage
- Configurable communication interface for diagnostics feedback
- Drain-Source Voltage / Gate-Source Voltage external FET monitoring for short circuit protection
- Sleep Mode with low quiescent current (<30µA)
- Compatible with 3V and 5V microcontrollers
- Charge-Pump provides NFET reverse polarity drive

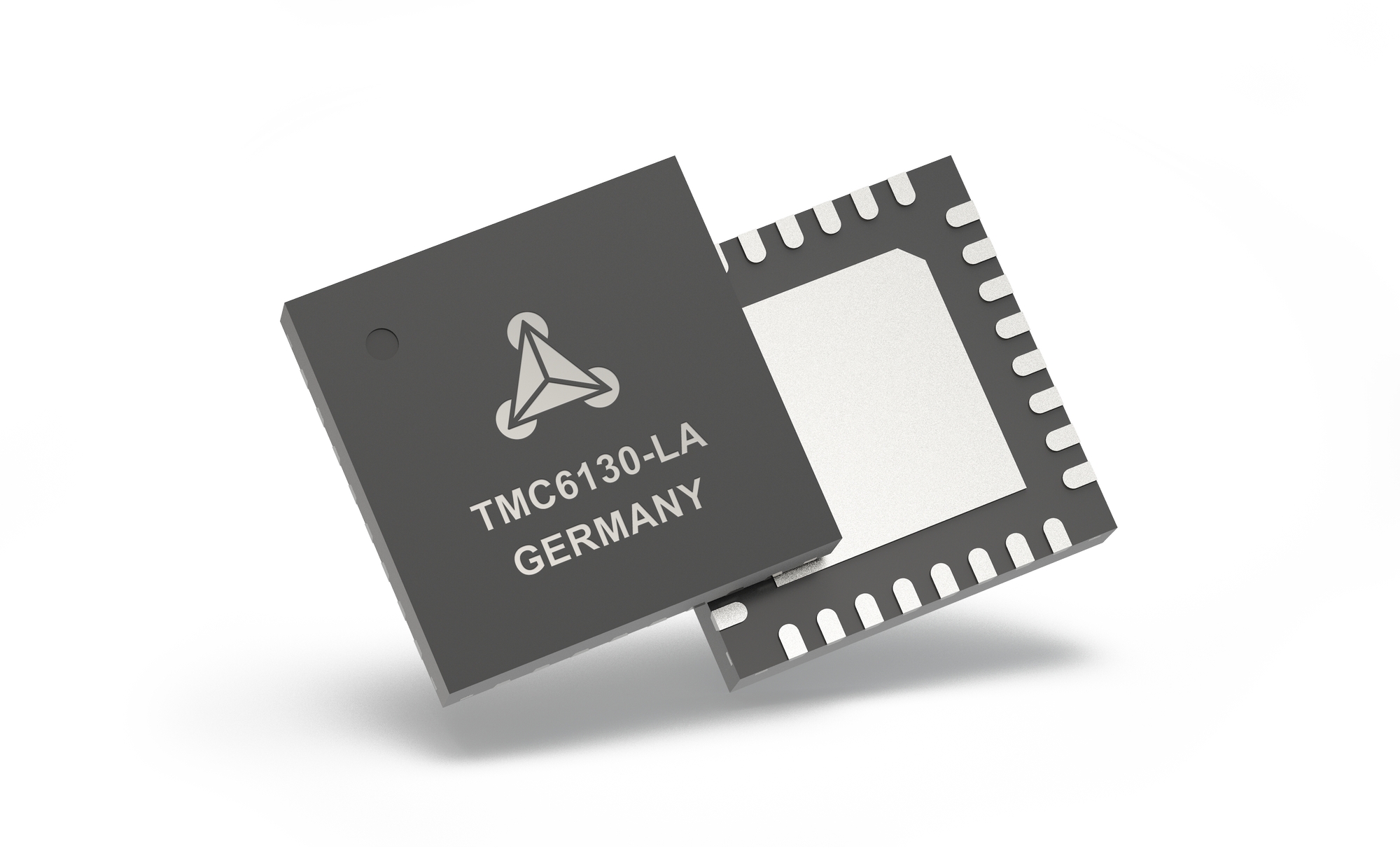

- Small Size: QFN 5x5mm package, 32 pin
产品详情和应用
The TMC6130-LA is a 3-phase BLDC gate driver for Robotics, Drones and other dynamic applications. The device is capable driving up to a gate current of 1A. The TMC6130-LA has comprehensive diagnostic functions including GND protection and break before make logic technology. The device is designed for a supply voltage of 4.5 to 8V and provides a PWM and SPI interface.
