ADI亚德诺 TMC246 产品介绍

2026-03-09 0次

特性

High Current up to 1500mA and 1000mA at 105°C
Voltage Range 7 V to 36 V DC
3.3 V or 5 V for digital part
SPI & External Analogue / Digital Signals
Microstep Resolution 16 microsteps using internal DACs
Low Power Dissipation via low RDS-ON power stage
Protection: overvoltage, overtemperature & short circuit

Diagnostics: overcurrent, open load, 2 level overtemperature
StallGuard™ sensorless stall detection and load measurement
Mixed Decay for smooth motor operation
Slope Control for reduced electromagnetic emissions
Current Control for cool motor and driver
Standby and Shutdown Mode

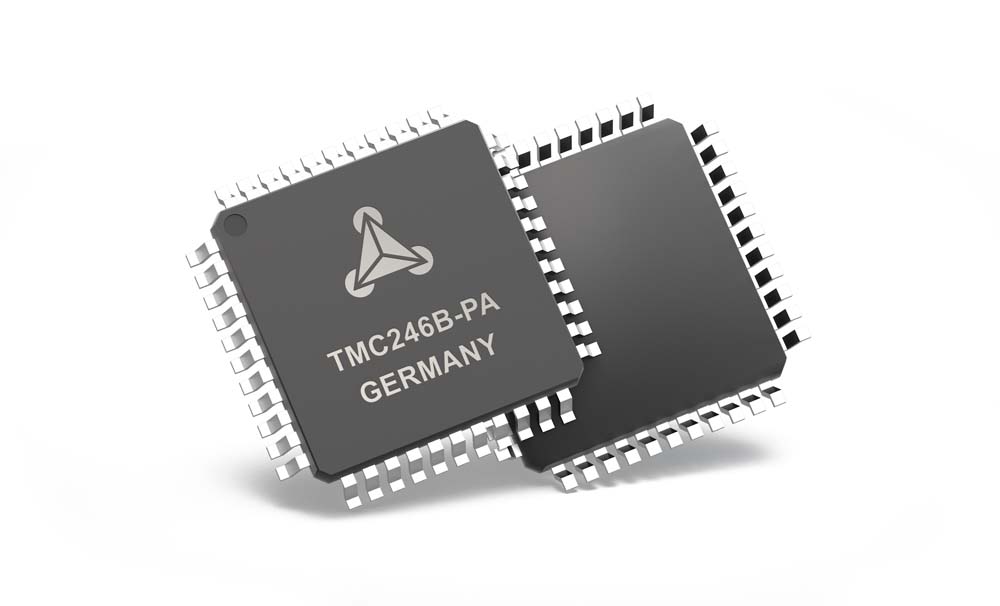

Optical Inspectable Package 10x10mm Standard TQFP-44

产品详情和应用

The TMC246 provides an integrated motor driver solution for Laboratory Automation, Scanners and other automated equipment applications. The device has an integrated microstepping current control and the sensorless stall detection technology StallGuard™ and is intended to drive a bipolar stepper motor. The output driver block consists of low RDSon TrenchFET power MOSFETs configured as full H-bridges to drive the motor windings. The TMC246 is capable of driving up to 1.5A of current from each output (with proper heatsinking). TMC246 is designed for a supply voltage of 7 to 34V. The device has a SPI interface for control and diagnostics.

APPLICATIONS

Replace Classic Bipolar Driver ICs
Office Automation
Printer and Scanner
Heliostat Controller
ATM, Cash recycler
POS
CCTV, Security
Antenna Positioning
Pumps and Valves
Lab Automation
Liquid Handling
Medica
