特性
- One H-Bridge with +36V Voltage Rating
- Total RDS(ON) (High-Side + Low-Side): 125mΩTypical (TA = 25°C)
- Current Ratings per H-Bridge (Typical at TA = 25°C):
- IFS_MAX = 7.6A (Max Full-Scale Current Setting forInternal Current Drive Regulation)
- IRMS = 4ARMS Recommended Maximum RMS Current
- Integrated Current Control
- Full-Scale DAC Current Programmable with External Resistor
- Internal Current Sensing (ICS) Eliminates ExternalBulky Resistors and Improves Efficiency
- Current Drive Regulation Monitor Output Pin (CDR Pin)
- Integrated DAC Sets the Output Current from 16Levels
- Four Decay Modes Supported (Slow, Fast, and Two Mixed Modes)
- Fixed OFF Time Configurable with External Resistor
- Current Sense Output (Current Monitor)
- Fault Indicator Pin (FAULT)
- Low Power Mode (Sleep Mode)
- Protections
- Overcurrent Protection for each Channel (OCP)
- Undervoltage Lockout (UVLO)
- Thermal Shutdown TJ = 165°C (TSD)

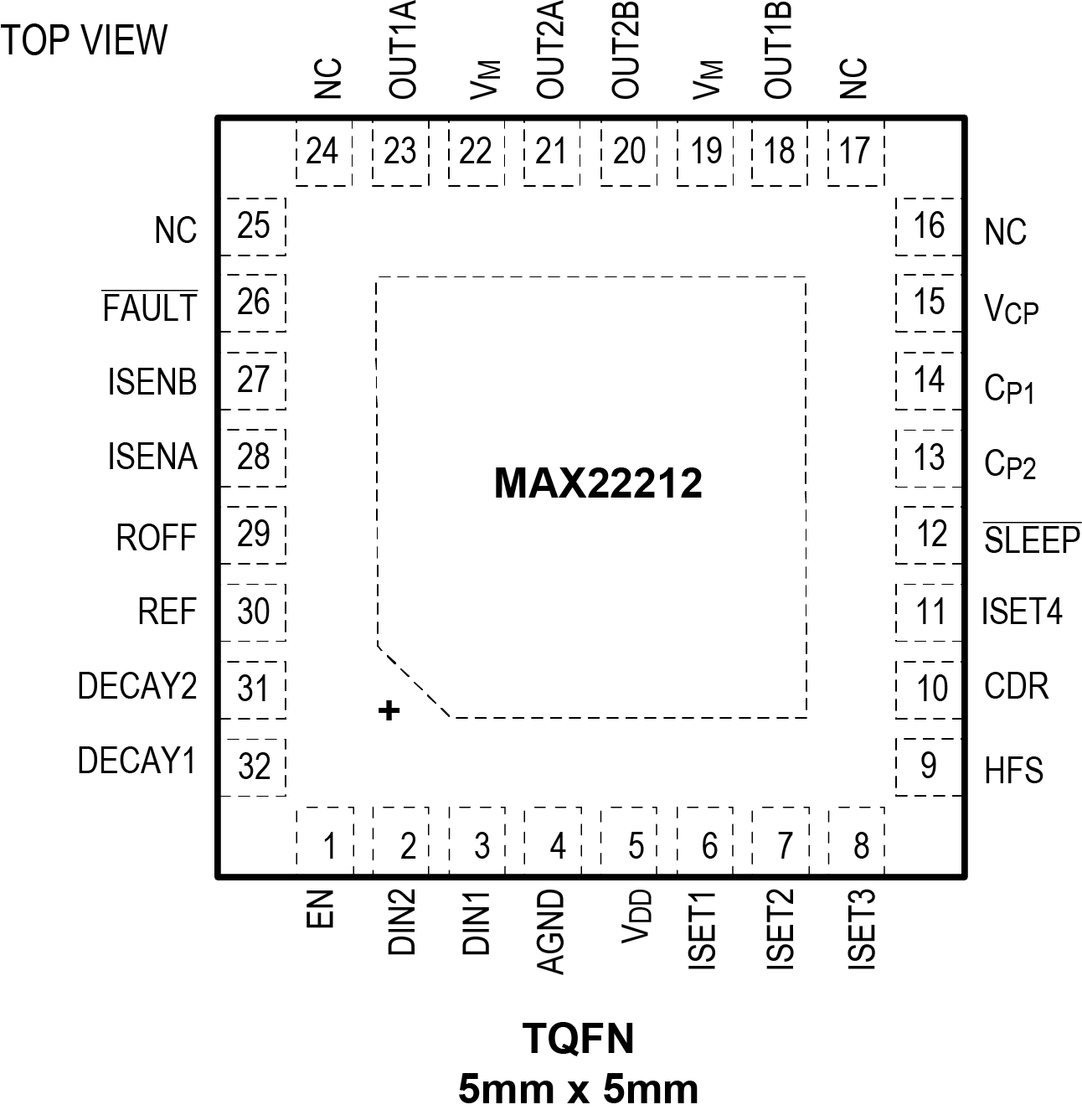

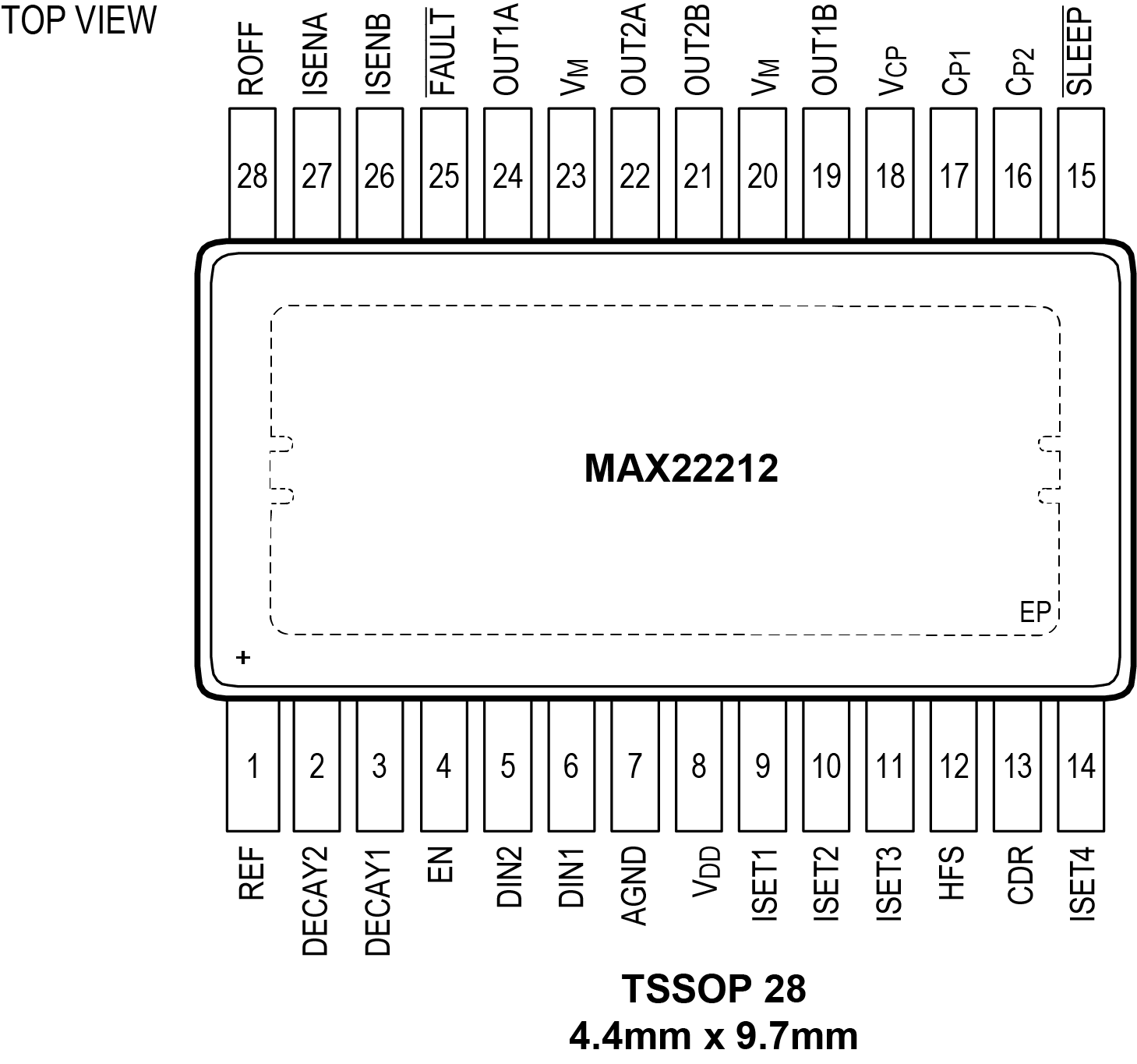

- TQFN32 5mm x 5mm Package or in a TSSOP284.4mm x 9.7mm Package
产品详情和应用

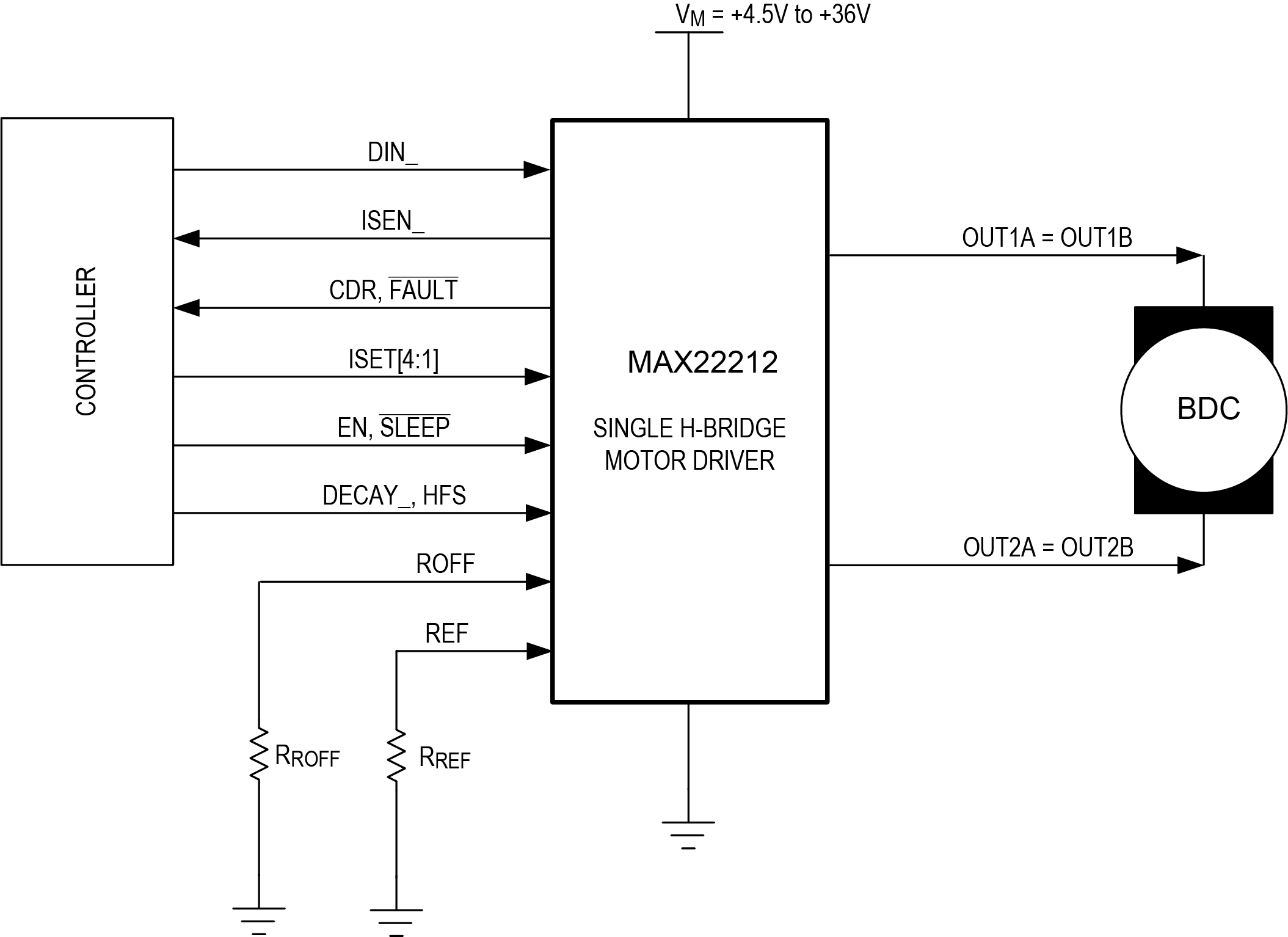

The MAX22212 integrates a high current 36V, 7.6AMAX H-Bridge to drive one Brushed DC motor or one half of a stepper motor. The H-Bridge FETs feature very low impedance, resulting in high driving efficiency and low heat generation. The typical total RON (high-side + low-side) is 0.125Ω. The H-Bridge can be PWM controlled by using three logic inputs (DIN1, DIN2, and EN).

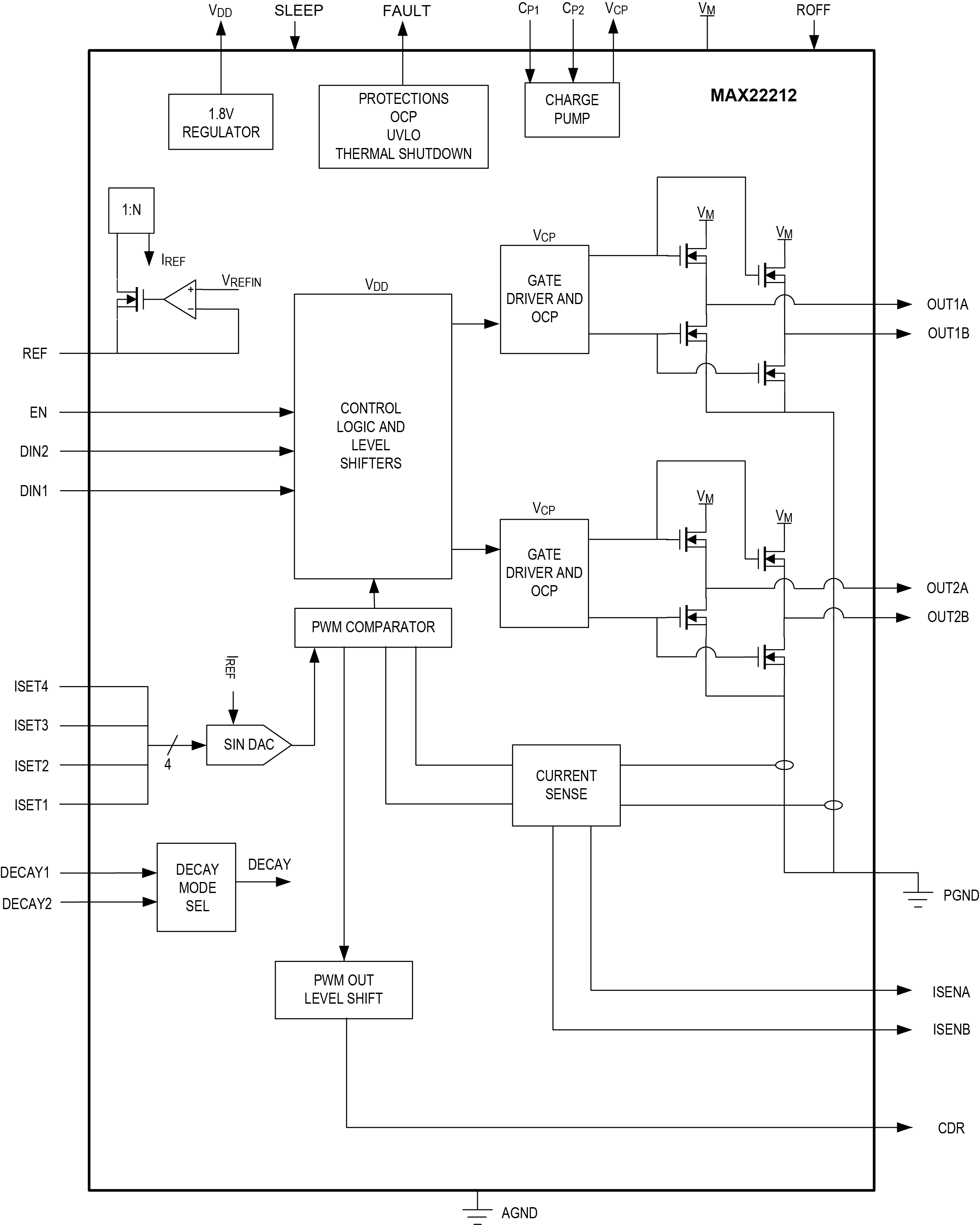

The MAX22212 features an accurate current drive regulation (CDR), which can be used to limit the start up current of a brushed DC motor or to control the phase current for stepper operation. The bridge output current is sensed by a non-dissipative integrated current sensing (ICS) and it is then compared with a user configurable set point (ITRIP). When the bridge current exceeds the setpoint, the device enforces the decay for a fixed OFF-time (tOFF). Four different decay methods are supported (Slow Decay, Fast Decay, and two Mixed Decay modes). The non-dissipative ICS eliminates the bulky external power resistors normally required for this function resulting in a dramatic space and power saving compared with mainstream applications based on the external sense resistor.
A current proportional to the internally-sensed motor current is output to the external pins (ISENA, ISENB). By connecting an external resistor from these pins to GND, a voltage proportional to the motor current is generated. The voltage across this resistor can be used as inputs to ADCs of an external motor controller if motion control algorithm requires the current/torque information.
In addition, one open-drain output (CDR pin) is asserted every time the internal current regulation takes control of the driver so that the activity of the internal current loop can be monitored.
The maximum user configurable full-scale current (IFS_MAX) can be set up to 7.6A limited by the overcurrent protection (OCP). An external resis
