ADI亚德诺_TMC2590_产品介绍

ADI亚德诺 TMC2590 产品介绍

2026-03-09 0次

特性

Motor Current from 1A to 8A using external (N&P) MOSFETs
High Voltage Range from 5V to 60V DC (more w. ext. driver)
High Resolution up to 256 microsteps per full step

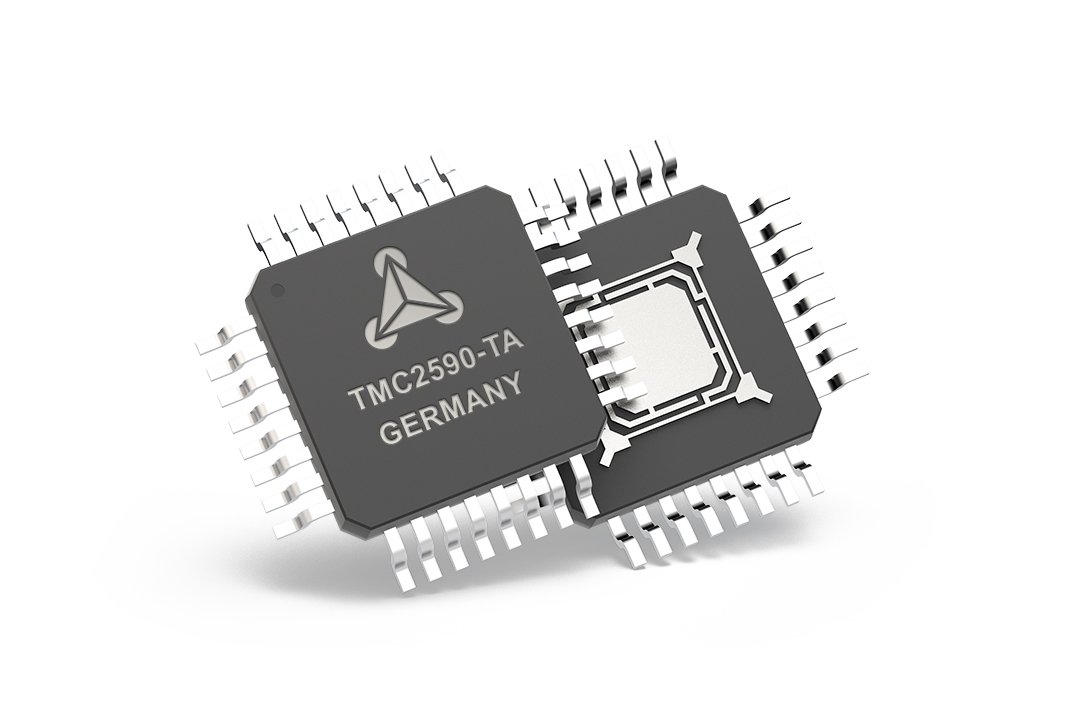

Small Size 5x5mm (body) TQFP32-EP package
Low Power Dissipation using MOSFET power stage
High Temperature Tolerance due to low self-heating
EMI-optimized slope & current controlled gate driver
Resonance Dampening for mid-range velocity

Protection & Diagnostics short to GND, short to VS / overcurrent, programmable overtemperature & undervoltage
StallGuard2™ high precision sensorless motor load detection
CoolStep™ load dependent current control saves up to 75%
MicroPlyer™ 256 step smoothness with 1/16 step input.
SpreadCycle™ high-precision chopper for best current sine wave form and zero crossing
Differential Current Sensing for quiet chopper operation

产品详情和应用

The TMC2590 driver for two-phase stepper motors offers an industry-leading feature set, including high-resolution microstepping, sensorless mechanical load measurement, load-adaptive power optimization, and low-resonance chopper operation. It uses external N- and P-channel MOSFETs for motor currents from 1A up to roughly 8A. The TMC2590 offers standard SPI and Step/Dir interfaces to simplify communication as well as stand alone configuration options.

Textile, Sewing Machines
Factory & Lab Automation
3D printing
Liquid Handling
Medical
Office Automation
Printer and Scanner
CCTV, Security
ATM, Cash recycler, POS
Pumps and Valves
Heliostat Controller
CNC Machines
