ADI亚德诺 TMCM-1140 产品介绍

2026-03-09 0次

特性

Motion controller

Motion profile calculation in real-time
On the fly alteration of motor parameters (e.g. position, velocity, acceleration)
High performance microcontroller for overall system control and serial communication protocol handling

Bipolar stepper motor driver

Up to 256 microsteps per full step
High-efficient operation, low power dissipation
Dynamic current control
Integrated protection
StallGuard2^™ feature for stall detection
CoolStep^™ feature for reduced power consumption and heat dissipation

Software

TMCL: standalone operation or remote controlled operation, program memory (non volatile) for up to 2048 TMCL commands, and PC-based application development software TMCL-IDE available for free.

Interfaces

RS485 2-wire communication interface
CAN 2.0B communication interface
USB full speed (12Mbit/s) device interface
4 multipurpose inputs:
- 3x general-purpose digital inputs (Alternate functions: STOP_L / STOP_R / HOME switch inputs or A/B/N encoder input)
- 1x dedicated analog input
2 general purpose outputs
- 1x open-drain 1A max
- 1x +5V supply output (can be switched on/off in software)

Encoder

sensOstep^™ magnetic encoder (1024 increments per rotation) e.g. for step-loss detection under all operating conditions and positioning supervision

Electrical and mechanical data

Supply voltage: +24 V DC nominal (9 to 28 V DC)
Motor current: up to 2
产品详情和应用

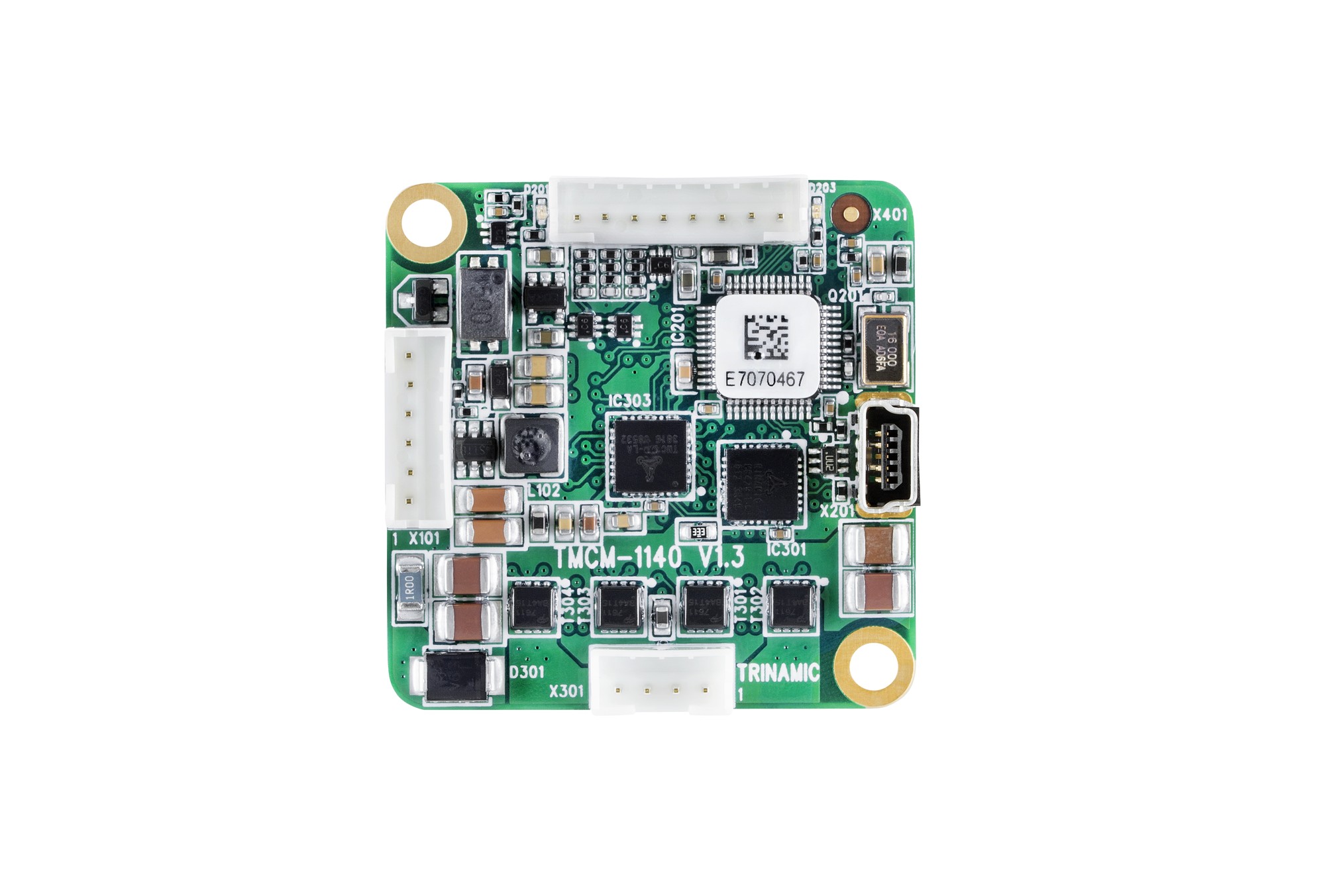

The TMCM-1140 is a single axis stepper motor controller/driver module for sensorless load dependent current control. The device is powered by ADI Trinamic StallGuard2^™, CoolStep^™ and SpreadCycle^™ chopper technology and has a trapezoidal ramp generator. The TMCM-1140 is capable of driving up to 2.8A of current from each output (with proper heatsinking). It is designed for an operating voltage of 9 to 28V. The device provides a RS485, CAN, USB, S/D and encoder interface. An integrated protocol processor supplies a high level TMCL/ CANopen communication.

All you need to get started is a power supply and ADI Trinamic's free and easy to use TMCL-IDE. This graphical user interface allows quick setup and supports the use of commands in direct mode, monitors real-time behavior visualized in graphs, and logs and stores data.

More about the TMCL-IDE
