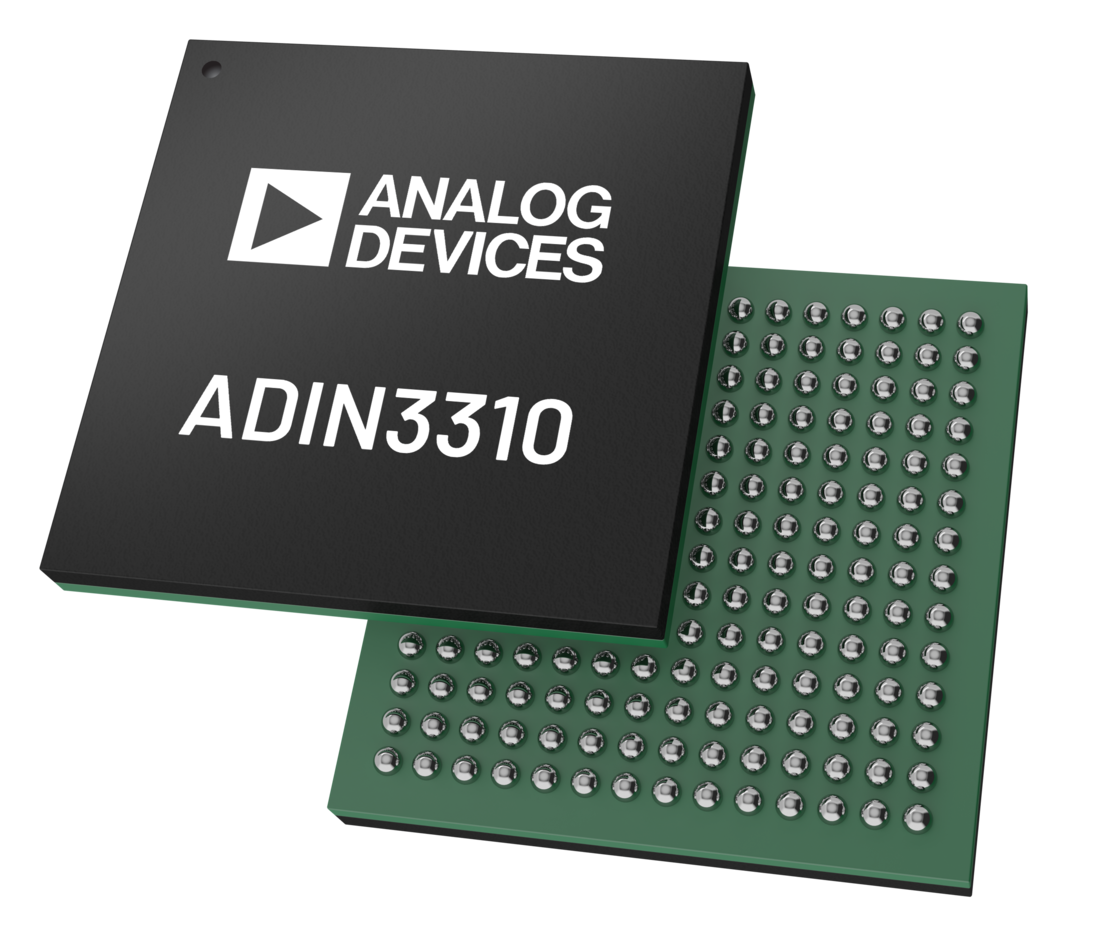

ADI亚德诺 ADIN3310 产品介绍

2026-03-09 0次

特性

Ethernet MAC interfaces: 10 Mb, 100 Mb or 1 Gb per port

6-port: 4x RMII/RGMII/SGMII and 2x RMII/RGMII
3-port: 2x RMII/RGMII/SGMII and 1x RMII/RGMII
SGMII, 1000BASE-SX/1000BASE-LX/1000BASE-KX, and 100BASE-FX

Low Latency, Layer 2 Ethernet switch

Deterministic latency from port to port
Cut-through or store and forward operation
Traffic types and bridge delay per IEEE/IEC 60802¹
Standard bridging per IEEE 802.1Q-2018 (tailored)

Each port is nonblocking and independent

32 kB frame buffer per transmit port
4096 VLANs

Time synchronization

IEEE 802.1AS-2020
IEEE 1588-2019 default profile
IEEE C37.238-2017 energy profile²
8 ns timestamp resolution
Frames timestamped on ingress or egress

IEEE 802.1Q time sensitive networking bridging

Qbv: enhancements for scheduled traffic
Qci: per stream filtering and policing
Qbu: frame preemption
Qch: cyclic queuing and forwarding²
Qav: forwarding and queuing enhancement²
Qcc: stream reservation protocol enhancements²
Number of streams

16000 TSN Layer 2 streams
256 extended lookup streams (IPV4, IPV6, PCP, and so on)

PROFINET SendList control

High availability and redundancy

IEEE 802.1CB Frame Replication and Elimination for Reliability

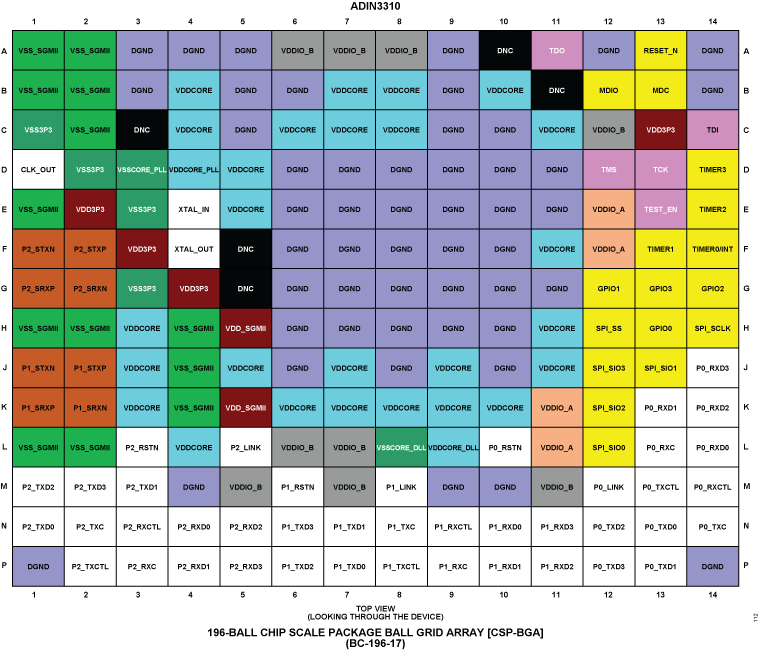

产品详情和应用

The ADIN3310 and ADIN6310 are 3-port and 6-port Gigabit Ethernet time sensitive networking (TSN) switches with integrated security primarily designed for industrial Ethernet applications. Each port can be configured to operate at different speeds. These switches have uncommitted media access controller (MAC) interfaces and can be paired with Analog Devices, Inc., physical (PHY) layer devices such as ADIN1100, ADIN1101, ADIN1200, and ADIN1300, to form a low power, low latency system. Four serial gigabit media independent interface (SGMII) and serializer/deserializer (serdes) interfaces allow backplane connections, connectivity to SFP modules and cascade switches. The switch supports the suite of IEEE 802.1Q time sensitive networking bridging features required by IEEE 60802 standard providing quality of service (QoS) for latency sensitive streams. The device also includes hardware capability to support parallel redundancy protocol (PRP) or high availability seamless redundancy (HSR) redundancy protocols, thereby offloading the host processor.

Applications
- Factory and process automation
- Motion control, robots, and cobots
- Energy automation
- Transportation
- Instrumentation
- Building automation
