特性
- 10BASE-T1L IEEE Standard 802.3cg-2019 compliant
- Cable reach up to 1700 m with 1.0 V/2.4 V
- Integrated MAC with SPI
- Supports OPEN Alliance 10BASE-T1x MAC-PHY serial interface
- 16 MAC address filters
- High and low priority queues with 28 kB buffer
- Cut through or store forward operation
- IEEE 1588 timestamp support
- Statistics counters
- Low power consumption: single supply 50 mW
- Diagnostics
- Cable fault detection with TDR
- Link quality indicator with MSE
- Frame generator and checker
- Multiple loopback modes
- IEEE test mode support
- Supports 1.0 V p-p and 2.4 V p-p transmit levels
- MDI polarity detection and correction
- 2-pin MDI
- Internal termination resistors and hybrid
- Autonegotiation
- 25 MHz crystal or external clock input
- EMC test standards
- IEC 61000-4-4 electrical fast transient (±4 kV)
- IEC 61000-4-2 ESD (±4 kV contact discharge)
- IEC 61000-4-2 ESD (±8 kV air discharge)
- IEC 61000-4-6 conducted immunity (10 V/m)
- IEC 61000-4-5 surge (±4 kV)
- IEC 61000-4-3 radiated immunity (Class A)
- EN 55032 radiated emissions (Class B)
- Small package: 32-lead (5 mm × 5 mm) LFCSP
- Temperature range
- Industrial: −40°C to +85°C
- Extended: −40°C to +105°C
产品详情和应用

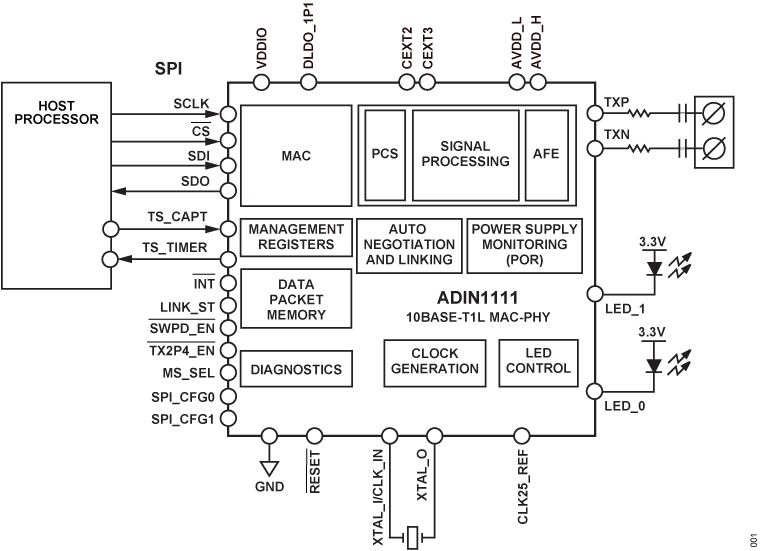

The ADIN1111 is an ultra low power, single port, 10BASE-T1L transceiver design for industrial Ethernet applications and is compliant with the IEEE® 802.3cg-2019™ Ethernet standard for long reach, 10 Mbps single pair Ethernet (SPE). Featuring an integrated media access control (MAC) interface, the ADIN1111 enables direct connectivity with a variety of host controllers via a serial peripheral interface (SPI). This SPI enables the use of lower power processors without an integrated MAC, which provides for the lowest overall system level power consumption. The ADIN1111 is designed for edge node sensors and field instruments deployed in building, factor, and process automation.
The device operates from a single power supply rail of 1.8 V or 3.3 V, supporting both 1.0 V and 2.4 V. The internal hybrid and termination resistors allow the ADIN1111 to connect directly to the MDI interface.
The ADIN1111 has an integrated voltage supply monitoring and power-on reset (POR) circuitry to improve system level robustness and has a 4-wire SPI for communication between the MAC interface and host processor.

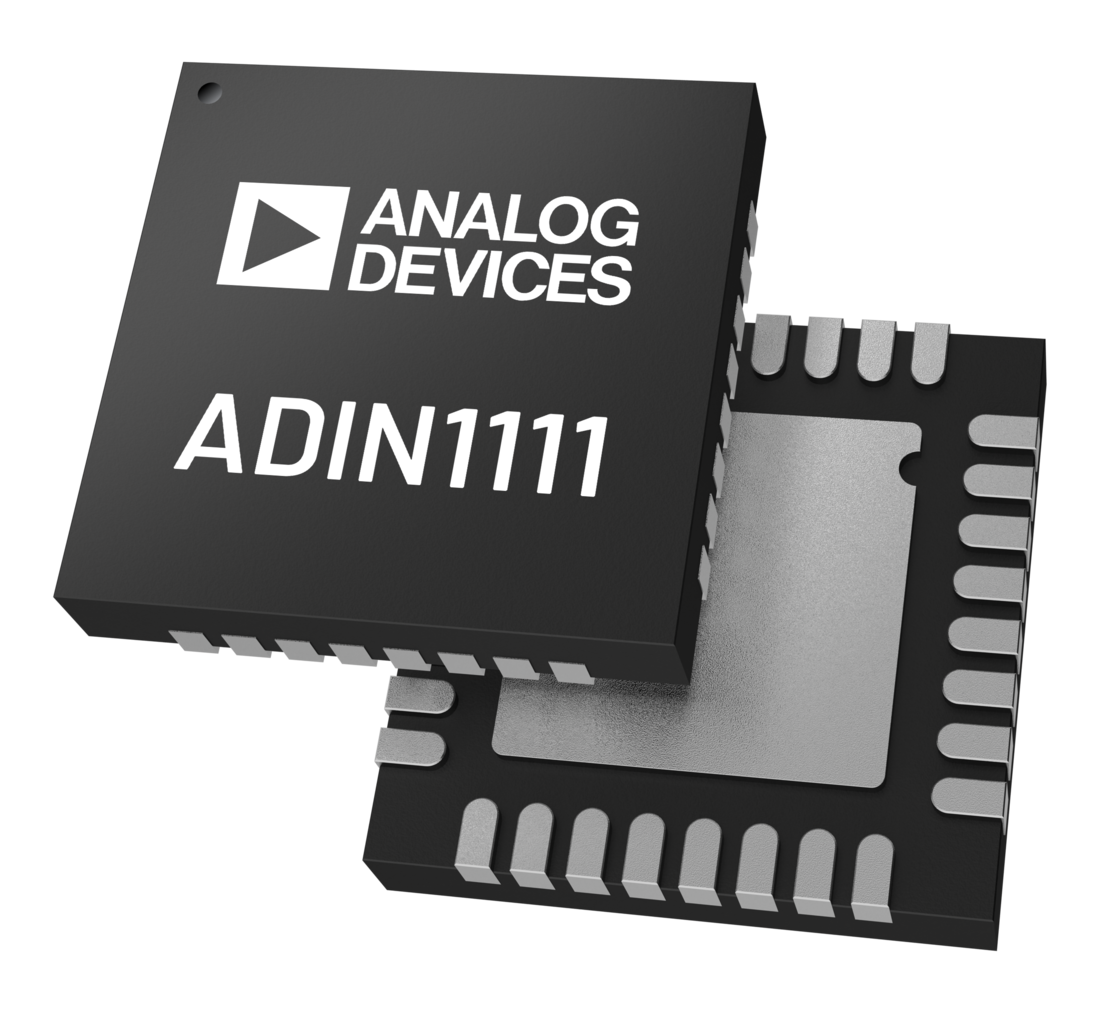

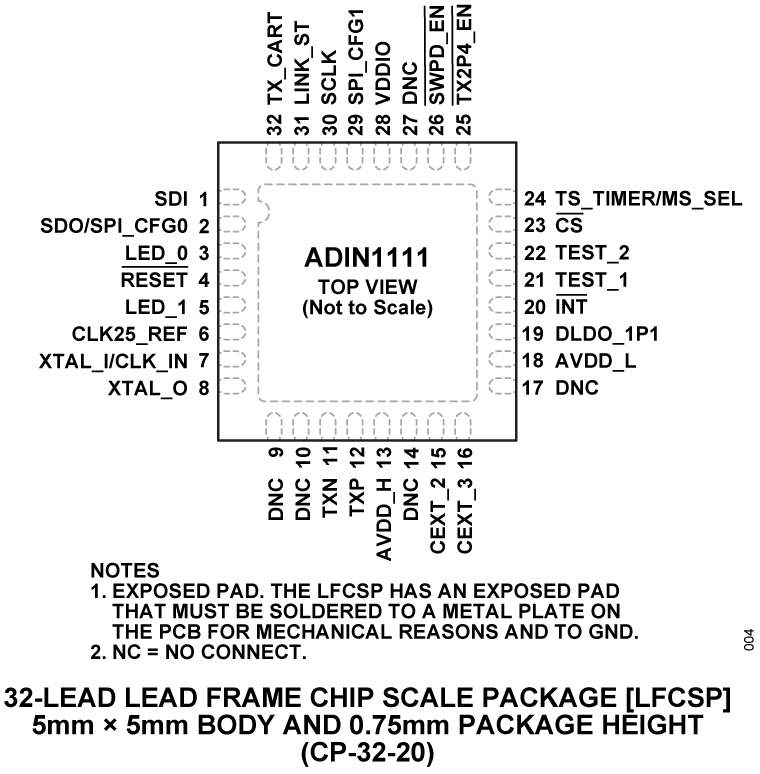

The ADIN1111 is available in a 32-lead, 5 mm × 5 mm lead frame chip scale package [LFCSP].
APPLICATIONS
- Building automation and fire safety
- Factory automation
- Condition monitoring and machine connectivity
