ADI亚德诺 ADH641S 产品介绍
2026-03-09
0次
特性

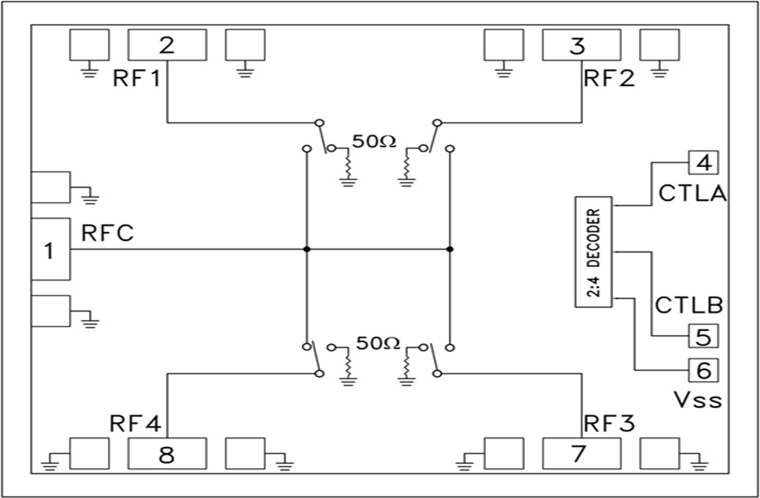

ADH641S (CHIP) Broadband Performance: DC to 18 GHz High Isolation: 42 dB @ 12 GHz; 42 dB @ 10 GHz Low Insertion Loss: 2.1 dB @ 12 GHz; 2.3 dB @ 10 GHz Integrated 2:4 TTL decoder. Screened In accordance with MIL-PRF-38534, Class K Small Size: 1.92 mm x 1.6 mm x 0.1 mm (Die)

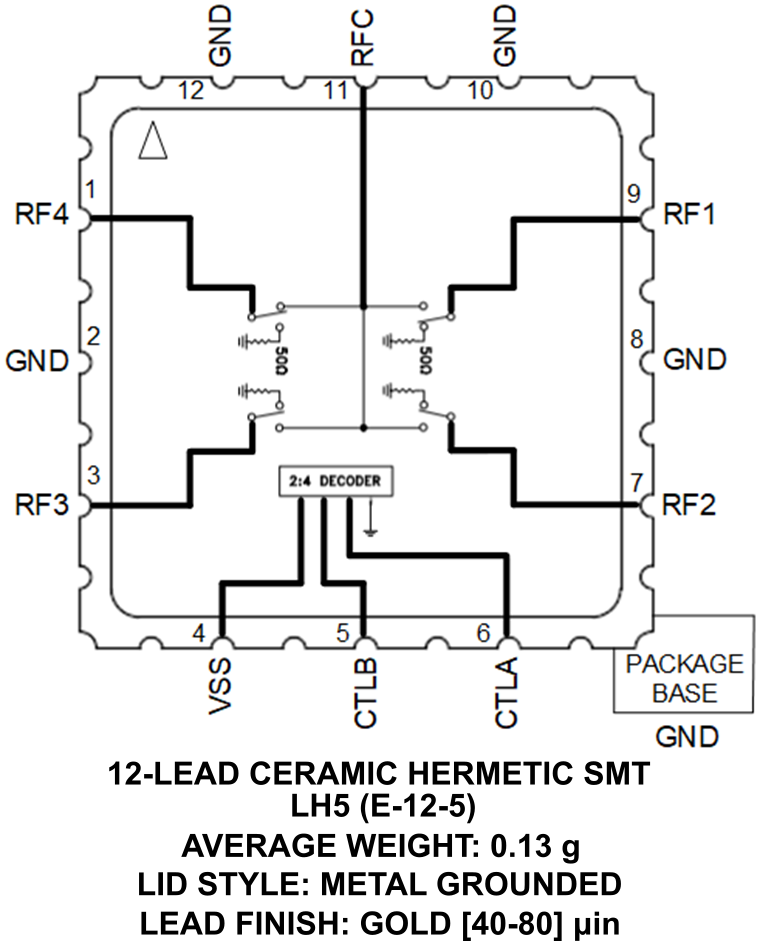

ADH641S (LH5)
Broadband Performance: DC to 18 GHz High Isolation: 42 dB @ 12 GHz; 42 dB @ 10 GHz Low Insertion Loss: 2.1 dB @ 12 GHz; 2.3 dB @ 10 GHz Integrated 2:4 TTL decoder. Screened In accordance with MIL-PRF-38535, Class Level S LH5, 12-Lead Ceramic Hermetic SMT [E-12-5] (LH5 Pkg)
产品详情和应用
The ADH641S is a broadband non reflective GaAs pHEMT SP4T switch. Covering DC to 18 GHz, this switch offers high isolation, low insertion loss, on-chip termination of isolated ports, and extends the frequency coverage of the SP4T switch product line. This switch also includes an on-board binary decoder circuit that reduces the number of required logic control lines to two. The switch operates using a negative control voltage of 0/−5 V, requires a fixed Vss bias of −5 V, and exhibits fast switching speed and consumes much less dc current than pin diode-based solutions. The ADH641S is available in both die form and hermetic LH5 package.
Applications
- Instrumentation
- Sensors
- Military and space
