特性

• Ultra Low SSB Phase Noise Floor: -153 dBc/Hz @ 10 kHz offset @ 100 MHz Input up to 1300 MHz Fin.
• Differential Input/Single Ended Output
• Open Collector Output Buffer Amplifiers

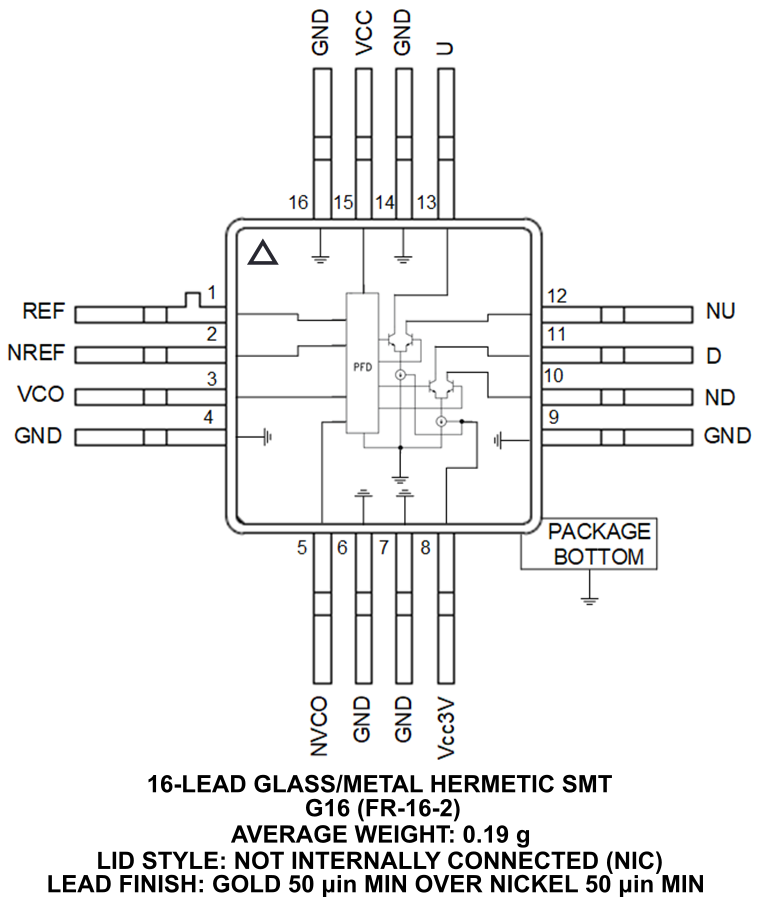

• 16-Lead Hermetic SMT Package
• Screened in accordance with MIL-PRF-38535, Class Level S

产品详情和应用

The ADH439S is a digital phase-frequency detector intended for use in low noise phase-locked loop applications for inputs from 10 MHz to 1300 MHz. Its combination of high frequency of operation along with its ultra-low phase noise floor make possible synthesizers with wide loop bandwidth and low N resulting in fast switching and very low phase noise. When used in conjunction with a differential loop amplifier, the ADH439S generate output voltages that can be used to phase lock a VCO to a reference oscillator. The device is packaged in a 16-Lead hermetic SMT package with an exposed base for improved RF and thermal performance.

Applications

• Point-to-Point Radios
• Satellite Communication Systems
• Instrumentation
• Clock Generation
• Military & Space
