ADI亚德诺 ADH598S 产品介绍
2026-03-09
0次
特性
- High Output Power: +15 dBm
- Low Input Power Drive: 0 dBm to +6 dBm
- Fo Isolation: 25 dBc @ Fout = 30 GHz
- Die Size: 2.07 mm X 1.86 mm X 0.1 mm
- Screened in accordance with MIL-PRF-38534, Class K
产品详情和应用

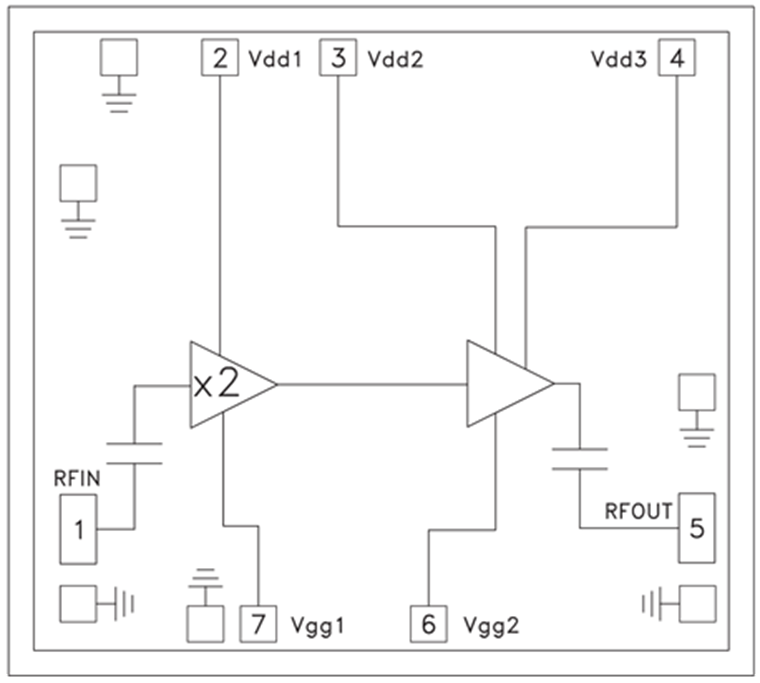

The ADH598S is a x2 active broadband frequency multiplier chip utilizing GaAs PHEMT technology. When driven by a +5 dBm signal, the multiplier provides +15 dBm typical output power from 22 to 46 GHz and the Fo and 3Fo isolations are 25 dBc and 15 dBc respectively at 30 GHz. The ADH598S is ideal for use in LO multiplier chains for Point-to-Point and VSAT radios yielding reduced parts count versus traditional design approaches.
Applications
- Clock Generation Applications
- Point-to-point & VSAT Radios
- Military & Space
