推荐用于新设计
特性
- 10至13位分辨率的多用途加速度计，适用于各种不同的应用
- 可通过SPI（3和4线）和 I2C访问数字输出
- 内置运动检测功能使得单振、双振、活动、非活动、方向和自由落体检测都可忽略不计
用户可调阈值
中断可独立映射至两个中断引脚 - 低至23 μA的低功耗运行及嵌入式FIFO，可降低整体系统功耗
- 宽电源和I/O电压范围：1.7 V至2.75 V
- 宽工作温度范围（−40°C至+85°C）
- 抗冲击能力：10,000 g
- 小型、超薄、无铅、符合RoHS标准、3 mm × 3 mm × 0.95 mm LGA封装
产品详情和应用
The ADXL344 is a versatile 3-axis, digital-output, low g MEMS accelerometer. Selectable measurement range and bandwidth and configurable, built-in motion detection make it suitable for sensing acceleration in a wide variety of applications. Robustness to 10,000 g/of shock and a wide temperature range (−40°C to +85°C) enable use of the accelerometer even in harsh environments.
The ADXL344 measures acceleration with high resolution (13-bit) measurement at up to ±16 g/. Digital output data is formatted as 16-bit twos complement and is accessible through either a SPI (3- or 4-wire) or I2C digital interface. The ADXL344 can measure the static acceleration of gravity in tilt-sensing appli-cations, as well as dynamic acceleration resulting from motion or shock. Its high resolution (3.9 mg/LSB) enables measurement of inclination changes less than 1.0°.
Several special sensing functions are provided. Activity and inactivity sensing detect the presence or lack of motion. Tap sensing detects single and double taps in any direction. Free-fall sensing detects if the device is falling. Orientation detection reports four- and six-position orientation and can trigger an interrupt upon change in orientation. These functions can be mapped individually to either of two interrupt output pins.
An integrated memory management system with a 32-level first in, first out (FIFO) buffer can be used to store data to minimize host processor activity and lower overall system power consumption.

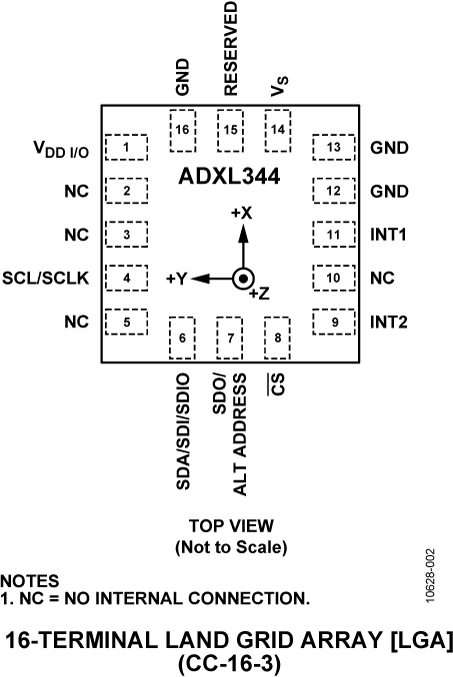

The ADXL344 is supplied in a small, thin, 3 mm × 3 mm × 0.95 mm, 16-terminal, plastic package.
APPLICATIONS
- Handsets
- Gaming and pointing devices
- Personal navigation devices
- Hard disk drive (HDD) protection
