ADI亚德诺 ADH849S 产品介绍
2026-03-09
0次
特性
ADH849S (Die) Frequency of Operation: DC to 6 GHz High Isolation: up to 60 dB High Input IP3: +52 dBm Typ. Insertion Loss: Non-Reflective Design “All Off” State Screened in accordance with MIL-PRF-38534, Class K
- 1.1 dB Typ. @ 4 GHz
- 1.5 dB Typ. @ 6 GHz

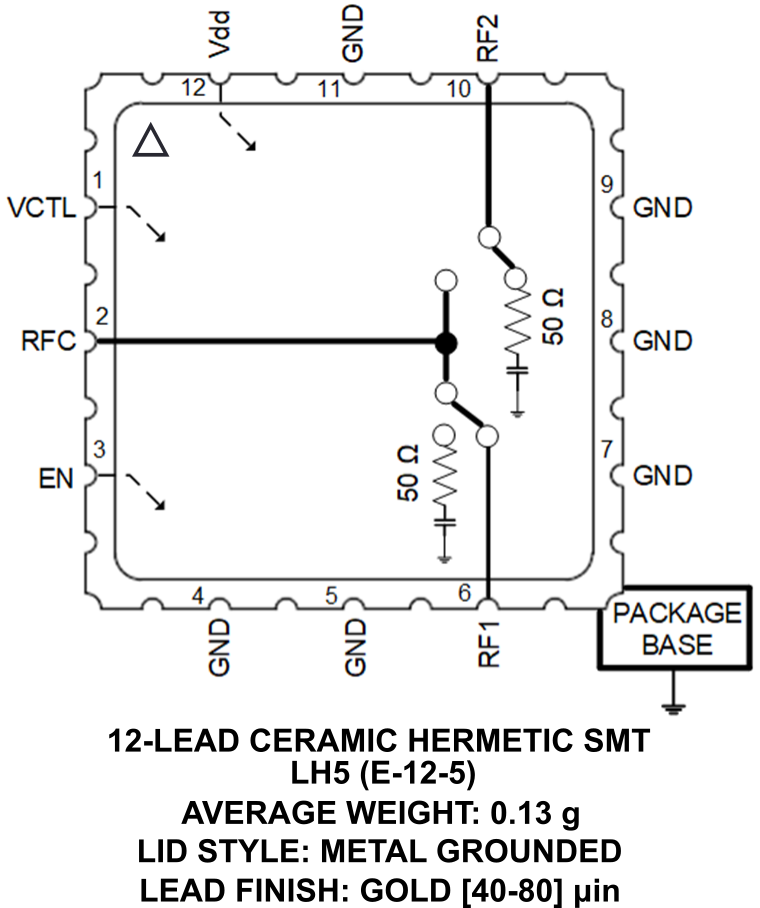

ADH849S (LH5 Package)
Frequency of Operation: DC to 6 GHz High Isolation: up to 60 dB High Input IP3: +52 dBm Typ. Insertion Loss: Non-Reflective Design “All Off” State. 12-Lead Hermetic SMT Package Screened in accordance with MIL-PRF-38535, Class Level S
- 0.75 dB @ 1.3 GHz Typ.
- 1.1 dB @ 4 GHz Typ.
产品详情和应用

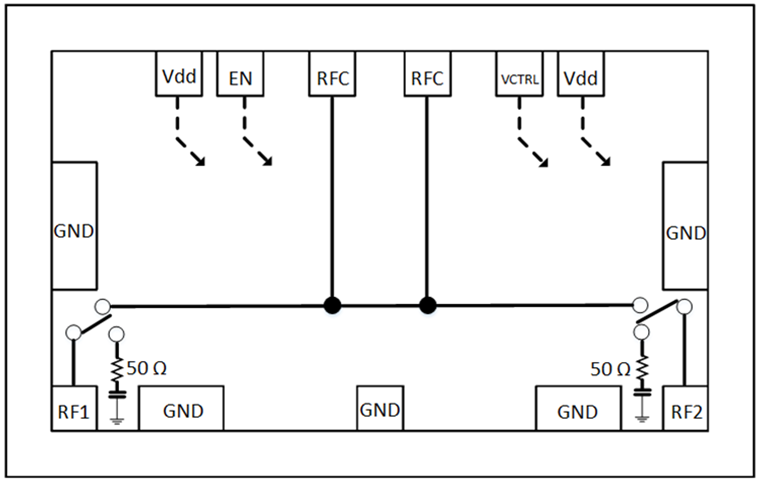

ADH849S (Die and LH5)
TheADH849S is a GaAs pHEMT high isolation non-reflective SPDT switch available in both Die and 12-Lead hermetic SMT package. The switch provided up to 60 dB isolation, low 1.1 dB insertion loss @ 4 GHz and +52 dBm input IP3. Power handling is excellent up through the 5 GHz - 6 GHz frequency band with the switch offering an Input P1dB compression point of +31 dBm. On-chip circuitry allows a single positive voltage control of 0/+3V or 0/+5V at very low DC currents. An enable input (EN) set to logic high will put the switch in an "all off" state.
Applications
- Communications
- Instrumentation
- Military & Space
