TI德州仪器 HMC8415 产品介绍
2026-04-14
0次
说明
- High output power: 46 dBm typical at PIN = 23 dBm
- High small signal gain: 32.5 dB typical
- High power gain: 23 dB typical at PIN = 23 dBm
- Frequency range: 9 GHz to 10.5 GHz
- High power added efficiency: 40% typical at PIN = 23 dBm
- Supply voltage: VDDxA/VDDxB = 28 V at 1000 mA

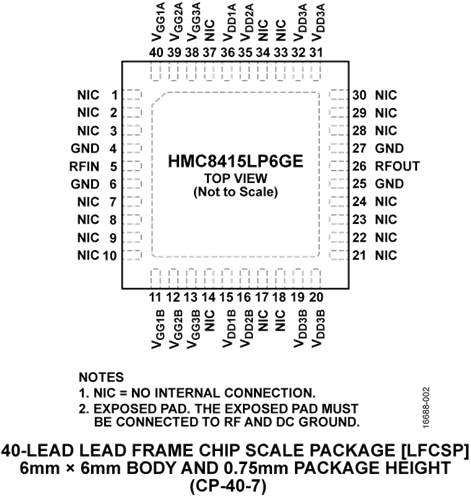

- 6 mm × 6 mm, 40-lead LFSCP
特性

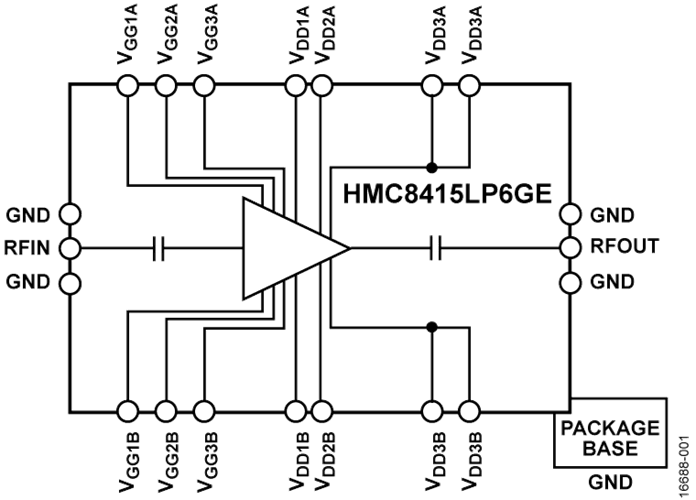

The HMC8415LP6GE is a gallium nitride (GaN), power amplifier, delivering 40 W (46 dBm) with more than 37.5% power added efficiency (PAE) across a bandwidth of 9 GHz to 10.5 GHz.
The HMC8415LP6GE is ideal for pulsed applications, such as wireless weather, marine, and military radar applications.
APPLICATIONS
- Weather radars
- Marine radars
- Military radars
参数
类型 | 描述 |
航空航天和防务 | 航空电子产品和解决方案 |
